Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: StockDeposit
Namespace: http://www.hr-xml.org/3
Type: nsA:StockDepositType
Containing Schema: StockDeposit.xsd
Abstract

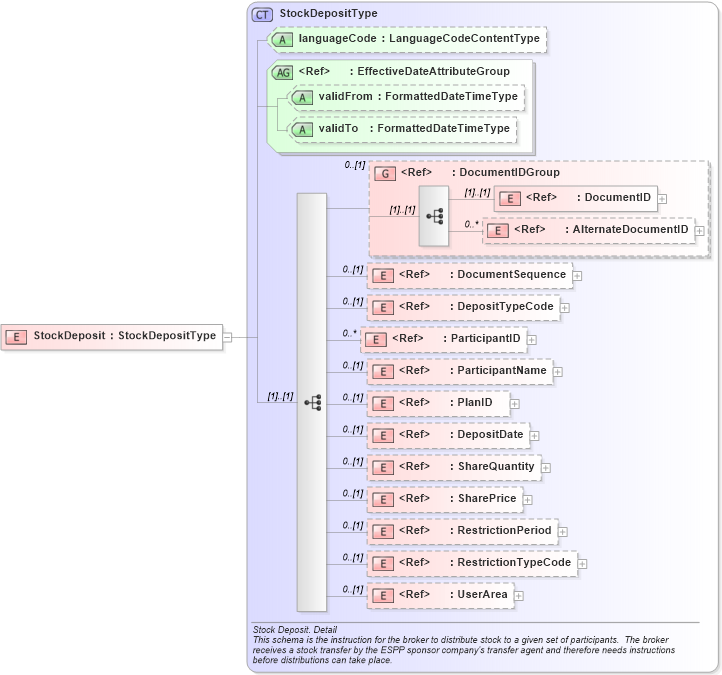

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into RestrictionTypeCode in schema fields_xsd Drilldown into RestrictionPeriod in schema components_xsd Drilldown into SharePrice in schema fields_xsd Drilldown into ShareQuantity in schema fields_xsd Drilldown into DepositDate in schema fields_xsd Drilldown into PlanID in schema fields_xsd Drilldown into ParticipantName in schema components_xsd Drilldown into ParticipantID in schema fields_xsd Drilldown into DepositTypeCode in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema stockdeposit_xsd Drilldown into StockDepositType in schema stockdeposit_xsdXSD Diagram of StockDeposit in schema stockdeposit_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="StockDeposit" type="StockDepositType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
DepositTypeCode nsA:DepositTypeCode 0 (1)
ParticipantID nsA:ParticipantID 0 unbounded
ParticipantName nsA:ParticipantName 0 (1)
PlanID nsA:PlanID 0 (1)
DepositDate nsA:DepositDate 0 (1)
ShareQuantity nsA:ShareQuantity 0 (1)
SharePrice nsA:SharePrice 0 (1)
RestrictionPeriod nsA:RestrictionPeriod 0 (1)
RestrictionTypeCode nsA:RestrictionTypeCode 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
