Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: StockOptionExerciseConfirmationType
Namespace: http://www.hr-xml.org/3
Containing Schema: StockOptionExerciseConfirmation.xsd
Abstract
Documentation:
Stock Option Exercise_Confirmation. Detail A collection of information confirming the exercise of a stock option award.

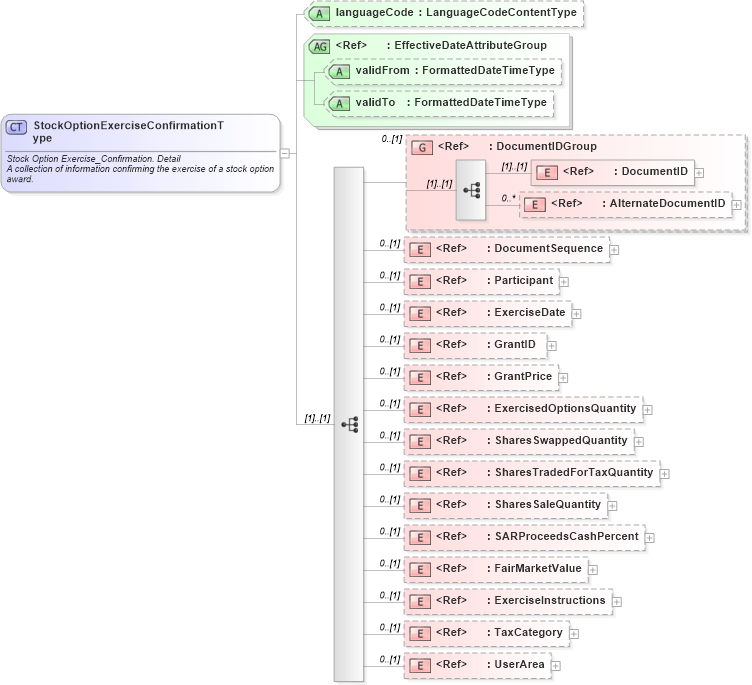

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into TaxCategory in schema components_xsd Drilldown into ExerciseInstructions in schema components_xsd Drilldown into FairMarketValue in schema fields_xsd Drilldown into SARProceedsCashPercent in schema fields_xsd Drilldown into SharesSaleQuantity in schema fields_xsd Drilldown into SharesTradedForTaxQuantity in schema fields_xsd Drilldown into SharesSwappedQuantity in schema fields_xsd Drilldown into ExercisedOptionsQuantity in schema fields_xsd Drilldown into GrantPrice in schema fields_xsd Drilldown into GrantID in schema fields_xsd Drilldown into ExerciseDate in schema fields_xsd Drilldown into Participant in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema stockoptionexerciseconfirmation_xsdXSD Diagram of StockOptionExerciseConfirmationType in schema stockoptionexerciseconfirmation_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="StockOptionExerciseConfirmationType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Stock Option Exercise_Confirmation. Detail</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">A collection of information confirming the exercise of a stock option award.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="Participant" minOccurs="0" />
        <xsd:element ref="ExerciseDate" minOccurs="0" />
        <xsd:element ref="GrantID" minOccurs="0" />
        <xsd:element ref="GrantPrice" minOccurs="0" />
        <xsd:element ref="ExercisedOptionsQuantity" minOccurs="0" />
        <xsd:element ref="SharesSwappedQuantity" minOccurs="0" />
        <xsd:element ref="SharesTradedForTaxQuantity" minOccurs="0" />
        <xsd:element ref="SharesSaleQuantity" minOccurs="0" />
        <xsd:element ref="SARProceedsCashPercent" minOccurs="0" />
        <xsd:element ref="FairMarketValue" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>This is a fair market value calculated on the exercise date.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ExerciseInstructions" minOccurs="0" />
        <xsd:element ref="TaxCategory" minOccurs="0" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
Participant nsA:Participant 0 (1)
ExerciseDate nsA:ExerciseDate 0 (1)
GrantID nsA:GrantID 0 (1)
GrantPrice nsA:GrantPrice 0 (1)
ExercisedOptionsQuantity nsA:ExercisedOptionsQuantity 0 (1)
SharesSwappedQuantity nsA:SharesSwappedQuantity 0 (1)
SharesTradedForTaxQuantity nsA:SharesTradedForTaxQuantity 0 (1)
SharesSaleQuantity nsA:SharesSaleQuantity 0 (1)
SARProceedsCashPercent nsA:SARProceedsCashPercent 0 (1)
FairMarketValue nsA:FairMarketValue 0 (1)
ExerciseInstructions nsA:ExerciseInstructions 0 (1)
TaxCategory nsA:TaxCategory 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:StockOptionExerciseConfirmation
