Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: StockOptionExerciseOrder
Namespace: http://www.hr-xml.org/3
Type: nsA:StockOptionExerciseOrderType
Containing Schema: StockOptionExerciseOrder.xsd
Abstract

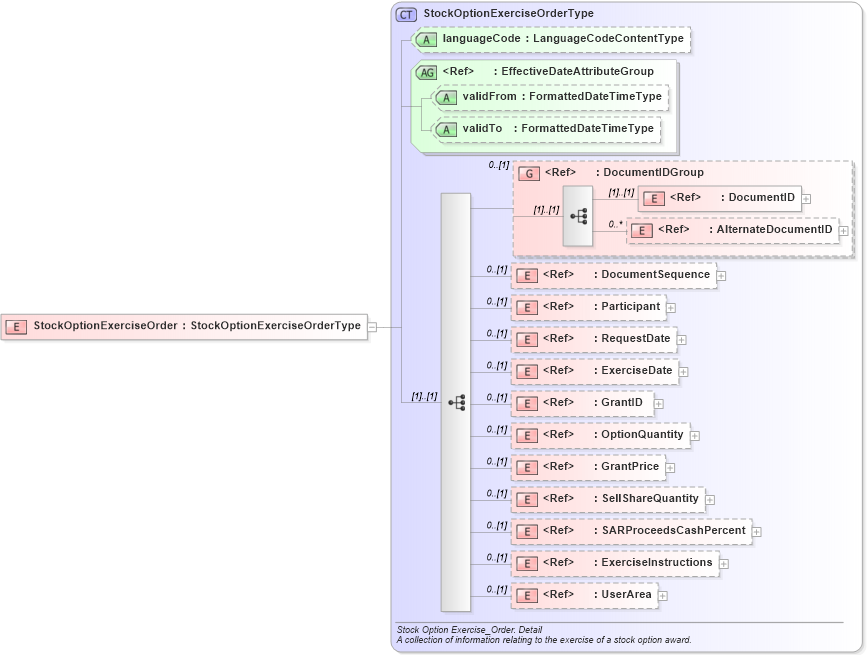

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ExerciseInstructions in schema components_xsd Drilldown into SARProceedsCashPercent in schema fields_xsd Drilldown into SellShareQuantity in schema fields_xsd Drilldown into GrantPrice in schema fields_xsd Drilldown into OptionQuantity in schema fields_xsd Drilldown into GrantID in schema fields_xsd Drilldown into ExerciseDate in schema fields_xsd Drilldown into RequestDate in schema fields_xsd Drilldown into Participant in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema stockoptionexerciseorder_xsd Drilldown into StockOptionExerciseOrderType in schema stockoptionexerciseorder_xsdXSD Diagram of StockOptionExerciseOrder in schema stockoptionexerciseorder_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="StockOptionExerciseOrder" type="StockOptionExerciseOrderType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
Participant nsA:Participant 0 (1)
RequestDate nsA:RequestDate 0 (1)
ExerciseDate nsA:ExerciseDate 0 (1)
GrantID nsA:GrantID 0 (1)
OptionQuantity nsA:OptionQuantity 0 (1)
GrantPrice nsA:GrantPrice 0 (1)
SellShareQuantity nsA:SellShareQuantity 0 (1)
SARProceedsCashPercent nsA:SARProceedsCashPercent 0 (1)
ExerciseInstructions nsA:ExerciseInstructions 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
