Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: StockPlan
Namespace: http://www.hr-xml.org/3
Type: nsA:StockPlanType
Containing Schema: StockPlan.xsd
Abstract

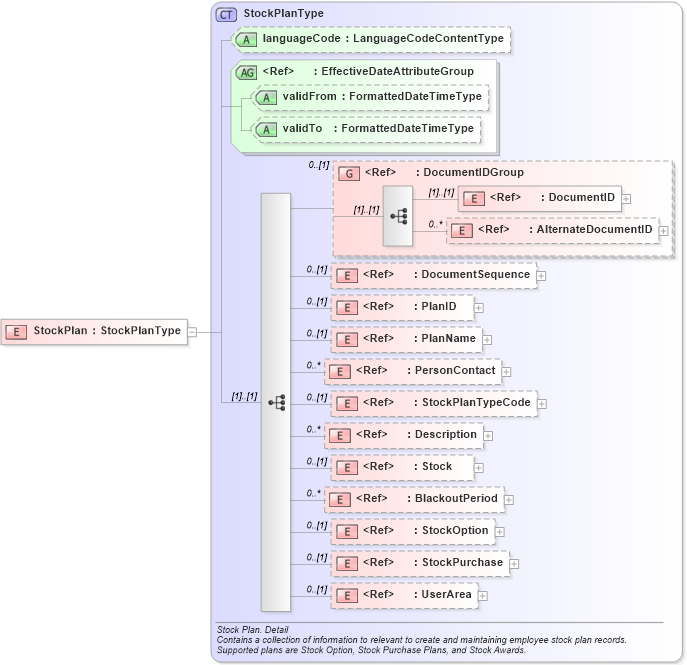

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into StockPurchase in schema components_xsd Drilldown into StockOption in schema components_xsd Drilldown into BlackoutPeriod in schema components_xsd Drilldown into Stock in schema components_xsd Drilldown into Description in schema fields_xsd1 Drilldown into StockPlanTypeCode in schema fields_xsd Drilldown into PersonContact in schema components_xsd Drilldown into PlanName in schema fields_xsd Drilldown into PlanID in schema fields_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema stockplan_xsd Drilldown into StockPlanType in schema stockplan_xsdXSD Diagram of StockPlan in schema stockplan_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="StockPlan" type="StockPlanType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
PlanID nsA:PlanID 0 (1)
PlanName nsA:PlanName 0 (1)
PersonContact nsA:PersonContact 0 unbounded
StockPlanTypeCode nsA:StockPlanTypeCode 0 (1)
Description oa:Description 0 unbounded
Stock nsA:Stock 0 (1)
BlackoutPeriod nsA:BlackoutPeriod 0 unbounded
StockOption nsA:StockOption 0 (1)
StockPurchase nsA:StockPurchase 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
