Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: StockSaleConfirmationType
Namespace: http://www.hr-xml.org/3
Containing Schema: StockSaleConfirmation.xsd
Abstract
Documentation:
Stock Sale_Confirmation. Detail Documents the particulars of a stock sale, such as the exercise of a stock option.

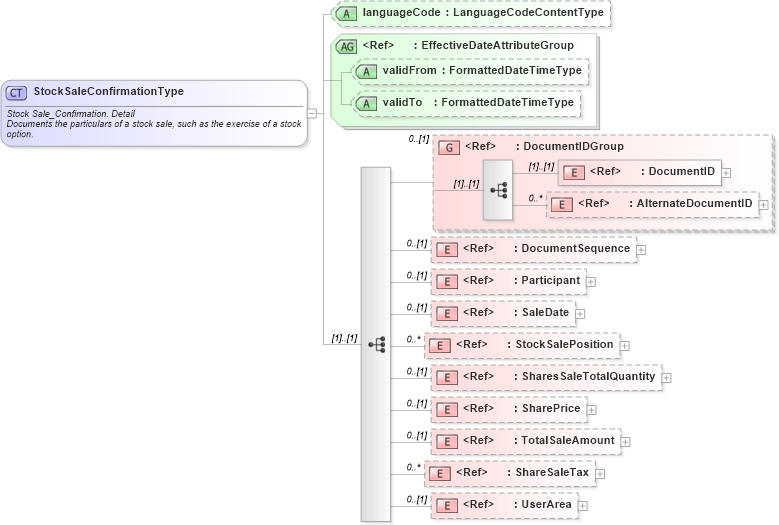

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into ShareSaleTax in schema components_xsd Drilldown into TotalSaleAmount in schema fields_xsd Drilldown into SharePrice in schema fields_xsd Drilldown into SharesSaleTotalQuantity in schema fields_xsd Drilldown into StockSalePosition in schema components_xsd Drilldown into SaleDate in schema fields_xsd Drilldown into Participant in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into languageCode in schema stocksaleconfirmation_xsdXSD Diagram of StockSaleConfirmationType in schema stocksaleconfirmation_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="StockSaleConfirmationType">
    <xsd:annotation>
        <xsd:documentation source="http://www.hr-xml.org" xml:lang="en">
            <ccts:DictionaryEntryName xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Stock Sale_Confirmation. Detail</ccts:DictionaryEntryName>
            <ccts:DefinitionText xmlns:ccts="urn:un:unece:uncefact:documentation:1.1">Documents the particulars of a stock sale, such as the exercise of a stock option.</ccts:DefinitionText>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:group ref="DocumentIDGroup" minOccurs="0" />
        <xsd:element ref="DocumentSequence" minOccurs="0" />
        <xsd:element ref="Participant" minOccurs="0" />
        <xsd:element ref="SaleDate" minOccurs="0" />
        <xsd:element ref="StockSalePosition" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SharesSaleTotalQuantity" minOccurs="0" />
        <xsd:element ref="SharePrice" minOccurs="0" />
        <xsd:element ref="TotalSaleAmount" minOccurs="0" />
        <xsd:element ref="ShareSaleTax" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="languageCode" type="LanguageCodeContentType" use="optional" />
    <xsd:attributeGroup ref="EffectiveDateAttributeGroup" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
Participant nsA:Participant 0 (1)
SaleDate nsA:SaleDate 0 (1)
StockSalePosition nsA:StockSalePosition 0 unbounded
SharesSaleTotalQuantity nsA:SharesSaleTotalQuantity 0 (1)
SharePrice nsA:SharePrice 0 (1)
TotalSaleAmount nsA:TotalSaleAmount 0 (1)
ShareSaleTax nsA:ShareSaleTax 0 unbounded
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
languageCode nsA:languageCode Optional
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
Collapse References:
nsA:StockSaleConfirmation
