Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: USEnrollment
Namespace: http://www.hr-xml.org/3
Type: nsA:USEnrollmentType
Containing Schema: USEnrollment.xsd
Abstract

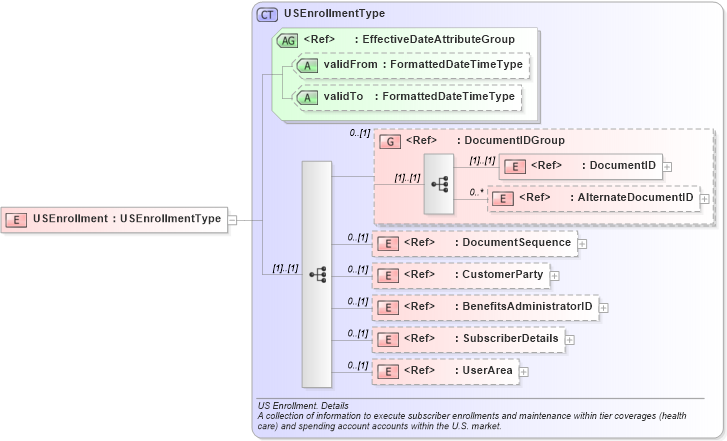

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into SubscriberDetails in schema usenrollment_xsd Drilldown into BenefitsAdministratorID in schema fields_xsd Drilldown into CustomerParty in schema components_xsd Drilldown into DocumentSequence in schema fields_xsd Drilldown into AlternateDocumentID in schema fields_xsd Drilldown into DocumentID in schema fields_xsd Drilldown into DocumentIDGroup in schema components_xsd Drilldown into validTo in schema fields_xsd Drilldown into validFrom in schema fields_xsd Drilldown into EffectiveDateAttributeGroup in schema fields_xsd Drilldown into USEnrollmentType in schema usenrollment_xsdXSD Diagram of USEnrollment in schema usenrollment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="USEnrollment" type="USEnrollmentType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID nsA:DocumentID (1) (1)
AlternateDocumentID nsA:AlternateDocumentID 0 unbounded
DocumentSequence nsA:DocumentSequence 0 (1)
CustomerParty nsA:CustomerParty 0 (1)
BenefitsAdministratorID nsA:BenefitsAdministratorID 0 (1)
SubscriberDetails nsA:SubscriberDetails 0 (1)
UserArea nsA:UserArea 0 (1)
<xs:group> nsA:DocumentIDGroup 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom nsA:validFrom Optional
validTo nsA:validTo Optional
Collapse Derivation Tree:
