Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: JurisdictionalSpecification
Namespace: http://www.hr-xml.org/3
Containing Schema: Components.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Provides details related to the specified jurisdiction.

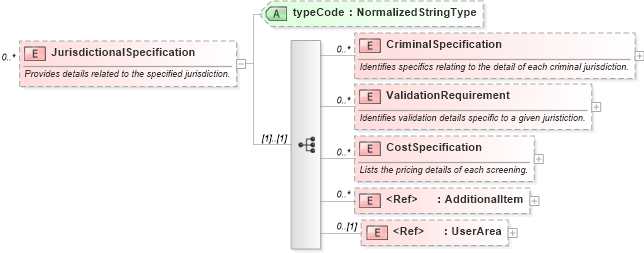

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema fields_xsd Drilldown into AdditionalItem in schema components_xsd Drilldown into CostSpecification in schema components_xsd Drilldown into ValidationRequirement in schema components_xsd Drilldown into CriminalSpecification in schema components_xsd Drilldown into typeCode in schema components_xsdXSD Diagram of JurisdictionalSpecification in schema components_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="JurisdictionalSpecification" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Provides details related to the specified jurisdiction.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="CriminalSpecification" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation>Identifies specifics relating to the detail of each criminal jurisdiction.</xsd:documentation>
                </xsd:annotation>
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element ref="ID" minOccurs="0" />
                        <xsd:element ref="ApplicableRegion" minOccurs="0" />
                        <xsd:element ref="CourtTypeCode" minOccurs="0" />
                        <xsd:element ref="CourtName" minOccurs="0" />
                        <xsd:element name="CourtStatus" type="oa:TextType" minOccurs="0" />
                        <xsd:element name="CourtMessage" type="oa:TextType" minOccurs="0" maxOccurs="unbounded">
                            <xsd:annotation>
                                <xsd:documentation>Container to hold messages relating the the court. For example, court is temporarily unavailable.</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                        <xsd:element ref="SearchPeriod" minOccurs="0" />
                        <xsd:element name="TurnaroundTime" type="oa:NumericType" minOccurs="0" oa:IndicatorType="oa:DurationType" xmlns:oa="http://www.openapplications.org/oagis/9">
                            <xsd:annotation>
                                <xsd:documentation>Estimated time required to fulfill the screening for the jurisdiction specified.</xsd:documentation>
                            </xsd:annotation>
                        </xsd:element>
                        <xsd:element ref="AdditionalAmount" minOccurs="0" maxOccurs="unbounded" />
                        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
                    </xsd:sequence>
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="ValidationRequirement" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation>Identifies validation details specific to a given juristiction.</xsd:documentation>
                </xsd:annotation>
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element ref="oa:Description" minOccurs="0" />
                        <xsd:element ref="ApplicableRegion" minOccurs="0" />
                        <xsd:element name="RegularExpression" type="oa:TextType" minOccurs="0" maxOccurs="unbounded" />
                        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
                    </xsd:sequence>
                    <xsd:attribute name="typeCode" type="oa:NormalizedStringType" />
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="CostSpecification" minOccurs="0" maxOccurs="unbounded">
                <xsd:annotation>
                    <xsd:documentation>Lists the pricing details of each screening.</xsd:documentation>
                </xsd:annotation>
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element ref="ApplicableRegion" minOccurs="0" />
                        <xsd:element ref="CourtTypeCode" minOccurs="0" />
                        <xsd:element ref="ScreeningCost" minOccurs="0" />
                        <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
                    </xsd:sequence>
                </xsd:complexType>
            </xsd:element>
            <xsd:element ref="AdditionalItem" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element ref="UserArea" minOccurs="0" />
        </xsd:sequence>
        <xsd:attribute name="typeCode" type="oa:NormalizedStringType" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CriminalSpecification nsA:CriminalSpecification 0 unbounded
ValidationRequirement nsA:ValidationRequirement 0 unbounded
CostSpecification nsA:CostSpecification 0 unbounded
AdditionalItem nsA:AdditionalItem 0 unbounded
UserArea nsA:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
typeCode nsA:typeCode (Optional)
