Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: BinaryType
Namespace: http://niem.gov/niem/niem-core/2.0
Type: s:ComplexObjectType
Containing Schema: niem-core.xsd
Abstract
Documentation:
A data type for a digital representation of an object encoded in a binary format.

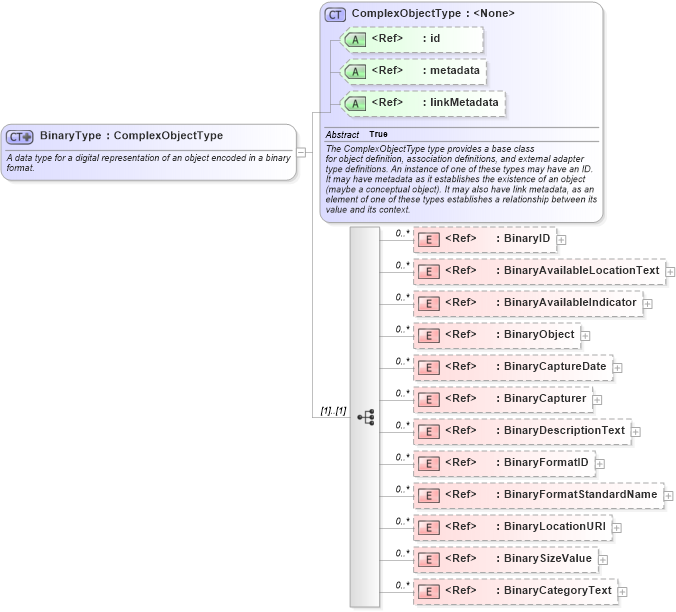

Collapse XSD Schema Diagram:
Drilldown into BinaryCategoryText in schema niem-core_xsd Drilldown into BinarySizeValue in schema niem-core_xsd Drilldown into BinaryLocationURI in schema niem-core_xsd Drilldown into BinaryFormatStandardName in schema niem-core_xsd Drilldown into BinaryFormatID in schema niem-core_xsd Drilldown into BinaryDescriptionText in schema niem-core_xsd Drilldown into BinaryCapturer in schema niem-core_xsd Drilldown into BinaryCaptureDate in schema niem-core_xsd Drilldown into BinaryObject in schema niem-core_xsd Drilldown into BinaryAvailableIndicator in schema niem-core_xsd Drilldown into BinaryAvailableLocationText in schema niem-core_xsd Drilldown into BinaryID in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of BinaryType in schema niem-core_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="BinaryType">
    <xsd:annotation>
        <xsd:documentation>A data type for a digital representation of an object encoded in a binary format.</xsd:documentation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="nc:BinaryID" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinaryAvailableLocationText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinaryAvailableIndicator" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinaryObject" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinaryCaptureDate" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinaryCapturer" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinaryDescriptionText" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinaryFormatID" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinaryFormatStandardName" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinaryLocationURI" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinarySizeValue" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="nc:BinaryCategoryText" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BinaryID nc:BinaryID 0 unbounded
BinaryAvailableLocationText nc:BinaryAvailableLocationText 0 unbounded
BinaryAvailableIndicator nc:BinaryAvailableIndicator 0 unbounded
BinaryObject nc:BinaryObject 0 unbounded
BinaryCaptureDate nc:BinaryCaptureDate 0 unbounded
BinaryCapturer nc:BinaryCapturer 0 unbounded
BinaryDescriptionText nc:BinaryDescriptionText 0 unbounded
BinaryFormatID nc:BinaryFormatID 0 unbounded
BinaryFormatStandardName nc:BinaryFormatStandardName 0 unbounded
BinaryLocationURI nc:BinaryLocationURI 0 unbounded
BinarySizeValue nc:BinarySizeValue 0 unbounded
BinaryCategoryText nc:BinaryCategoryText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
nc:Attachment, nc:Binary, nc:BiometricBinary, nc:DeviceStoredAudioBinary, nc:DeviceStoredBinary, nc:DeviceStoredVideoBinary, nc:DocumentBinary, nc:EmailAttachmentBinary, j:EvidenceDocumentBinary, j:EvidenceItemBinary, nc:ImageType, nc:ItemBinaryintel:PersonMultimediaIDBinary,
