Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: SignatureImage
Namespace: http://niem.gov/niem/ansi-nist/2.0
Type: ansi-nist:SignatureImageType
Containing Schema: ansi-nist.xsd
Abstract

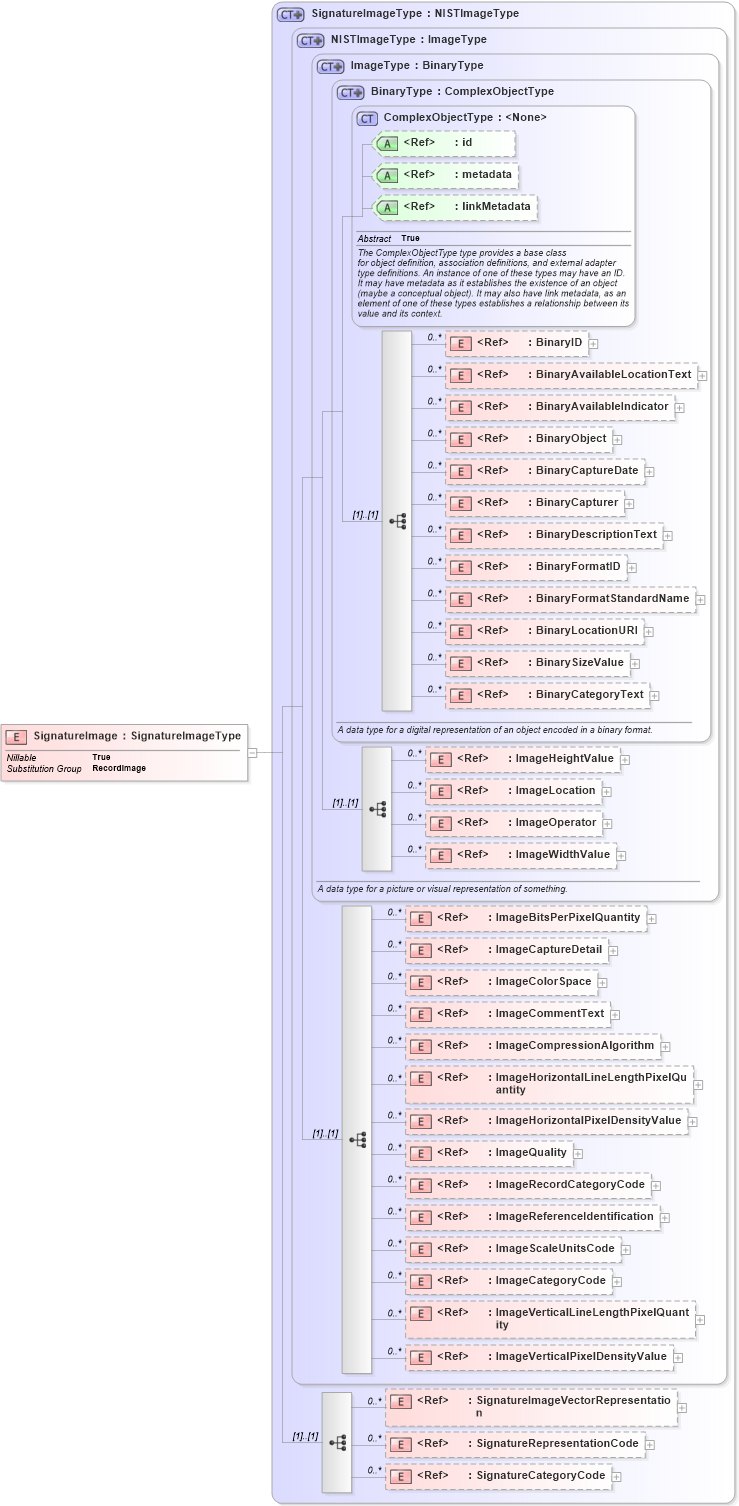

Collapse XSD Schema Diagram:
Drilldown into SignatureCategoryCode in schema ansi-nist_xsd Drilldown into SignatureRepresentationCode in schema ansi-nist_xsd Drilldown into SignatureImageVectorRepresentation in schema ansi-nist_xsd Drilldown into ImageVerticalPixelDensityValue in schema ansi-nist_xsd Drilldown into ImageVerticalLineLengthPixelQuantity in schema ansi-nist_xsd Drilldown into ImageCategoryCode in schema ansi-nist_xsd Drilldown into ImageScaleUnitsCode in schema ansi-nist_xsd Drilldown into ImageReferenceIdentification in schema ansi-nist_xsd Drilldown into ImageRecordCategoryCode in schema ansi-nist_xsd Drilldown into ImageQuality in schema ansi-nist_xsd Drilldown into ImageHorizontalPixelDensityValue in schema ansi-nist_xsd Drilldown into ImageHorizontalLineLengthPixelQuantity in schema ansi-nist_xsd Drilldown into ImageCompressionAlgorithm in schema ansi-nist_xsd Drilldown into ImageCommentText in schema ansi-nist_xsd Drilldown into ImageColorSpace in schema ansi-nist_xsd Drilldown into ImageCaptureDetail in schema ansi-nist_xsd Drilldown into ImageBitsPerPixelQuantity in schema ansi-nist_xsd Drilldown into ImageWidthValue in schema niem-core_xsd Drilldown into ImageOperator in schema niem-core_xsd Drilldown into ImageLocation in schema niem-core_xsd Drilldown into ImageHeightValue in schema niem-core_xsd Drilldown into BinaryCategoryText in schema niem-core_xsd Drilldown into BinarySizeValue in schema niem-core_xsd Drilldown into BinaryLocationURI in schema niem-core_xsd Drilldown into BinaryFormatStandardName in schema niem-core_xsd Drilldown into BinaryFormatID in schema niem-core_xsd Drilldown into BinaryDescriptionText in schema niem-core_xsd Drilldown into BinaryCapturer in schema niem-core_xsd Drilldown into BinaryCaptureDate in schema niem-core_xsd Drilldown into BinaryObject in schema niem-core_xsd Drilldown into BinaryAvailableIndicator in schema niem-core_xsd Drilldown into BinaryAvailableLocationText in schema niem-core_xsd Drilldown into BinaryID in schema niem-core_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into BinaryType in schema niem-core_xsd Drilldown into ImageType in schema niem-core_xsd Drilldown into NISTImageType in schema ansi-nist_xsd Drilldown into SignatureImageType in schema ansi-nist_xsdXSD Diagram of SignatureImage in schema ansi-nist_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:element substitutionGroup="ansi-nist:RecordImage" name="SignatureImage" type="ansi-nist:SignatureImageType" nillable="true">
    <xsd:annotation>
        <xsd:appinfo>
            <i:Base i:name="RecordImage" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BinaryID nc:BinaryID 0 unbounded
BinaryAvailableLocationText nc:BinaryAvailableLocationText 0 unbounded
BinaryAvailableIndicator nc:BinaryAvailableIndicator 0 unbounded
BinaryObject nc:BinaryObject 0 unbounded
BinaryCaptureDate nc:BinaryCaptureDate 0 unbounded
BinaryCapturer nc:BinaryCapturer 0 unbounded
BinaryDescriptionText nc:BinaryDescriptionText 0 unbounded
BinaryFormatID nc:BinaryFormatID 0 unbounded
BinaryFormatStandardName nc:BinaryFormatStandardName 0 unbounded
BinaryLocationURI nc:BinaryLocationURI 0 unbounded
BinarySizeValue nc:BinarySizeValue 0 unbounded
BinaryCategoryText nc:BinaryCategoryText 0 unbounded
ImageHeightValue nc:ImageHeightValue 0 unbounded
ImageLocation nc:ImageLocation 0 unbounded
ImageOperator nc:ImageOperator 0 unbounded
ImageWidthValue nc:ImageWidthValue 0 unbounded
ImageBitsPerPixelQuantity ansi-nist:ImageBitsPerPixelQuantity 0 unbounded
ImageCaptureDetail ansi-nist:ImageCaptureDetail 0 unbounded
ImageColorSpace ansi-nist:ImageColorSpace 0 unbounded
ImageCommentText ansi-nist:ImageCommentText 0 unbounded
ImageCompressionAlgorithm ansi-nist:ImageCompressionAlgorithm 0 unbounded
ImageHorizontalLineLengthPixelQuantity ansi-nist:ImageHorizontalLineLengthPixelQuantity 0 unbounded
ImageHorizontalPixelDensityValue ansi-nist:ImageHorizontalPixelDensityValue 0 unbounded
ImageQuality ansi-nist:ImageQuality 0 unbounded
ImageRecordCategoryCode ansi-nist:ImageRecordCategoryCode 0 unbounded
ImageReferenceIdentification ansi-nist:ImageReferenceIdentification 0 unbounded
ImageScaleUnitsCode ansi-nist:ImageScaleUnitsCode 0 unbounded
ImageCategoryCode ansi-nist:ImageCategoryCode 0 unbounded
ImageVerticalLineLengthPixelQuantity ansi-nist:ImageVerticalLineLengthPixelQuantity 0 unbounded
ImageVerticalPixelDensityValue ansi-nist:ImageVerticalPixelDensityValue 0 unbounded
SignatureImageVectorRepresentation ansi-nist:SignatureImageVectorRepresentation 0 unbounded
SignatureRepresentationCode ansi-nist:SignatureRepresentationCode 0 unbounded
SignatureCategoryCode ansi-nist:SignatureCategoryCode 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
ansi-nist:RecordImage
