Documentation for National Information Exchange Model (NEIM)
Definition Type: Element
Name: FingerprintImageMajorCasePrint
Namespace: http://niem.gov/niem/ansi-nist/2.0
Type: ansi-nist:FingerprintImageMajorCasePrintType
Containing Schema: ansi-nist.xsd
Abstract
Documentation:
Information required when finger position code is "19" complete friction ridge exemplars.

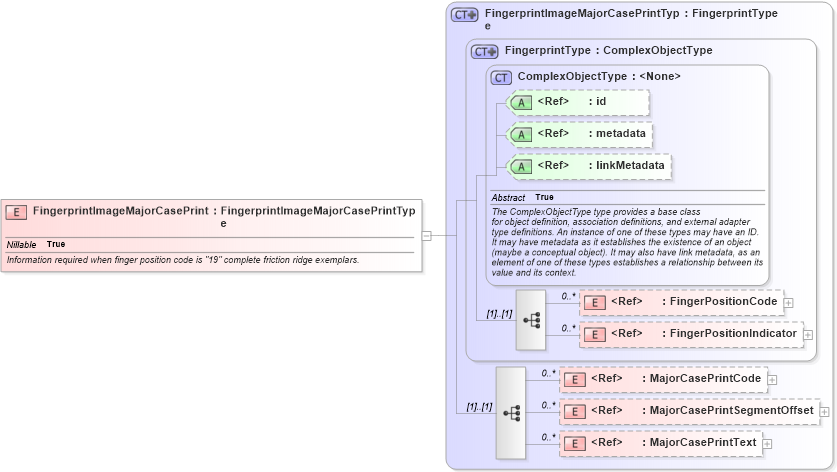

Collapse XSD Schema Diagram:
Drilldown into MajorCasePrintText in schema ansi-nist_xsd Drilldown into MajorCasePrintSegmentOffset in schema ansi-nist_xsd Drilldown into MajorCasePrintCode in schema ansi-nist_xsd Drilldown into FingerPositionIndicator in schema ansi-nist_xsd Drilldown into FingerPositionCode in schema ansi-nist_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into FingerprintType in schema ansi-nist_xsd Drilldown into FingerprintImageMajorCasePrintType in schema ansi-nist_xsdXSD Diagram of FingerprintImageMajorCasePrint in schema ansi-nist_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:element name="FingerprintImageMajorCasePrint" type="ansi-nist:FingerprintImageMajorCasePrintType" nillable="true">
    <xsd:annotation>
        <xsd:documentation>Information required when finger position code is "19" complete friction ridge exemplars.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FingerPositionCode ansi-nist:FingerPositionCode 0 unbounded
FingerPositionIndicator ansi-nist:FingerPositionIndicator 0 unbounded
MajorCasePrintCode ansi-nist:MajorCasePrintCode 0 unbounded
MajorCasePrintSegmentOffset ansi-nist:MajorCasePrintSegmentOffset 0 unbounded
MajorCasePrintText ansi-nist:MajorCasePrintText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
