Definition Type: ComplexType
Name: FingerprintImageMajorCasePrintType
Namespace: http://niem.gov/niem/ansi-nist/2.0
Type: ansi-nist:FingerprintType
Containing Schema: ansi-nist.xsd
Abstract
Collapse XSD Schema Diagram:

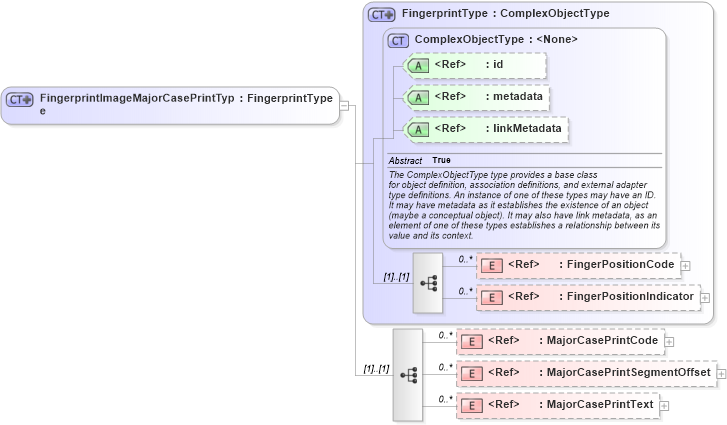

Drilldown into MajorCasePrintText in schema ansi-nist_xsd Drilldown into MajorCasePrintSegmentOffset in schema ansi-nist_xsd Drilldown into MajorCasePrintCode in schema ansi-nist_xsd Drilldown into FingerPositionIndicator in schema ansi-nist_xsd Drilldown into FingerPositionCode in schema ansi-nist_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsd Drilldown into FingerprintType in schema ansi-nist_xsdXSD Diagram of FingerprintImageMajorCasePrintType in schema ansi-nist_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="FingerprintImageMajorCasePrintType">
    <xsd:annotation>
        <xsd:appinfo>
            <i:Base i:name="FingerprintType" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ansi-nist:FingerprintType">
            <xsd:sequence>
                <xsd:element ref="ansi-nist:MajorCasePrintCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ansi-nist:MajorCasePrintSegmentOffset" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ansi-nist:MajorCasePrintText" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FingerPositionCode ansi-nist:FingerPositionCode 0 unbounded
FingerPositionIndicator ansi-nist:FingerPositionIndicator 0 unbounded
MajorCasePrintCode ansi-nist:MajorCasePrintCode 0 unbounded
MajorCasePrintSegmentOffset ansi-nist:MajorCasePrintSegmentOffset 0 unbounded
MajorCasePrintText ansi-nist:MajorCasePrintText 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
ansi-nist:FingerprintImageMajorCasePrint
