Definition Type: ComplexType
Name: FingerprintType
Namespace: http://niem.gov/niem/ansi-nist/2.0
Type: s:ComplexObjectType
Containing Schema: ansi-nist.xsd
Abstract

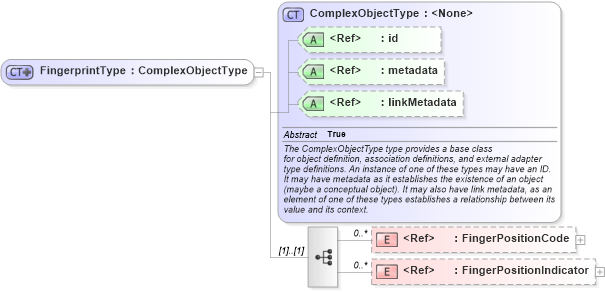

Collapse XSD Schema Diagram:
Drilldown into FingerPositionIndicator in schema ansi-nist_xsd Drilldown into FingerPositionCode in schema ansi-nist_xsd Drilldown into linkMetadata in schema structures_xsd Drilldown into metadata in schema structures_xsd Drilldown into id in schema structures_xsd Drilldown into ComplexObjectType in schema structures_xsdXSD Diagram of FingerprintType in schema ansi-nist_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<xsd:complexType name="FingerprintType">
    <xsd:annotation>
        <xsd:appinfo>
            <i:Base i:namespace="http://niem.gov/niem/structures/2.0" i:name="Object" xmlns:i="http://niem.gov/niem/appinfo/2.0" />
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="s:ComplexObjectType">
            <xsd:sequence>
                <xsd:element ref="ansi-nist:FingerPositionCode" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="ansi-nist:FingerPositionIndicator" minOccurs="0" maxOccurs="unbounded" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FingerPositionCode ansi-nist:FingerPositionCode 0 unbounded
FingerPositionIndicator ansi-nist:FingerPositionIndicator 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
id s:id (Optional)
metadata s:metadata (Optional)
linkMetadata s:linkMetadata (Optional)
Collapse Derivation Tree:
Collapse References:
nc:Fingerprintansi-nist:FingerprintImageMajorCasePrintType, ansi-nist:FingerprintImageNISTQualityType, ansi-nist:FingerprintImagePosition, ansi-nist:FingerprintImageQualityType, ansi-nist:FingerprintPalmImagePositionType, ansi-nist:MajorCasePrintSegmentOffsetType,
