Documentation for National Information Exchange Model (NEIM)
Definition Type: ComplexType
Name: VerticalDatumType
Namespace: http://niem.gov/niem/external/ogc-gml/3.1.1/dhs-gmo/1.0.0
Type: gml:AbstractDatumType
Containing Schema: gml.xsd
Abstract
Documentation:
A textual description and/or a set of parameters identifying a particular reference level surface used as a zero-height surface, including its position with respect to the Earth for any of the height types recognized by this standard. There are several types of Vertical Datums, and each may place constraints on the Coordinate Axis with which it is combined to create a Vertical CRS.

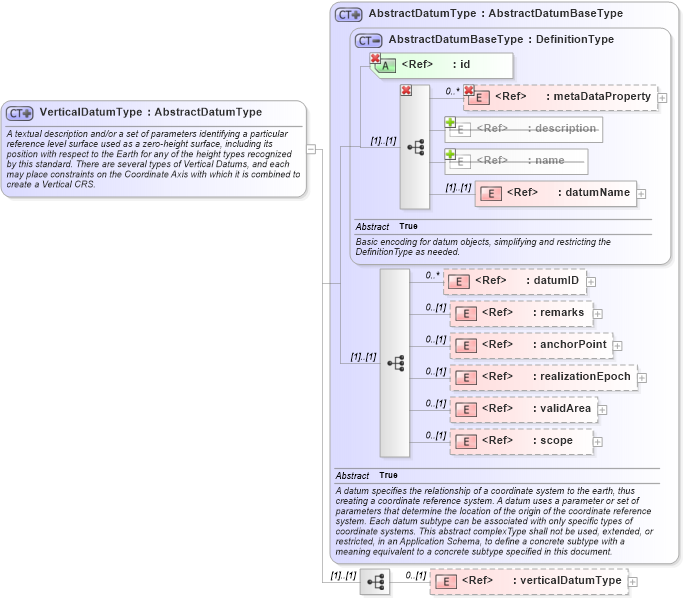

Collapse XSD Schema Diagram:
Drilldown into verticalDatumType in schema gml_xsd Drilldown into scope in schema gml_xsd Drilldown into validArea in schema gml_xsd Drilldown into realizationEpoch in schema gml_xsd Drilldown into anchorPoint in schema gml_xsd Drilldown into remarks in schema gml_xsd Drilldown into datumID in schema gml_xsd Drilldown into datumName in schema gml_xsd Drilldown into name in schema gml_xsd Drilldown into description in schema gml_xsd Drilldown into metaDataProperty in schema gml_xsd Drilldown into id in schema gml_xsd Drilldown into AbstractDatumBaseType in schema gml_xsd Drilldown into AbstractDatumType in schema gml_xsdXSD Diagram of VerticalDatumType in schema gml_xsd (National Information Exchange Model (NEIM))
Collapse XSD Schema Code:
<complexType name="VerticalDatumType">
    <annotation>
        <documentation>A textual description and/or a set of parameters identifying a particular reference level surface used as a zero-height surface, including its position with respect to the Earth for any of the height types recognized by this standard. There are several types of Vertical Datums, and each may place constraints on the Coordinate Axis with which it is combined to create a Vertical CRS. </documentation>
    </annotation>
    <complexContent>
        <extension base="gml:AbstractDatumType">
            <sequence>
                <element ref="gml:verticalDatumType" minOccurs="0" />
            </sequence>
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name 0 unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
description gml:description 0 (1)
name gml:name (1) unbounded
metaDataProperty gml:metaDataProperty 0 unbounded
datumName gml:datumName (1) (1)
datumID gml:datumID 0 unbounded
remarks gml:remarks 0 (1)
anchorPoint gml:anchorPoint 0 (1)
realizationEpoch gml:realizationEpoch 0 (1)
validArea gml:validArea 0 (1)
scope gml:scope 0 (1)
verticalDatumType gml:verticalDatumType 0 (1)
<xs:group> gml:StandardObjectProperties (1) (1)
Collapse Child Attributes:
Name Type Default Value Use
id gml:id Required
Collapse Derivation Tree:
Collapse References:
gmx:ML_VerticalDatum_Type, gml:VerticalDatum
