Definition Type: ComplexType
Name: ResponseAbstractType
Namespace: urn:oasis:names:tc:SAML:1.0:protocol
Containing Schema: oasis-sstc-saml-schema-protocol-1.0.xsd
Abstract True

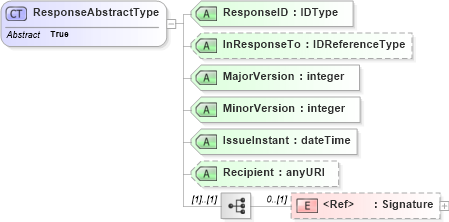

Collapse XSD Schema Diagram:
Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into Recipient in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into IssueInstant in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into MinorVersion in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into MajorVersion in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into InResponseTo in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into ResponseID in schema oasis-sstc-saml-schema-protocol-1_0_xsdXSD Diagram of ResponseAbstractType in schema oasis-sstc-saml-schema-protocol-1_0_xsd (OASIS Security Services (SAML) TC)
Collapse XSD Schema Code:
<complexType name="ResponseAbstractType" abstract="true">
    <sequence>
        <element ref="ds:Signature" minOccurs="0" />
    </sequence>
    <attribute name="ResponseID" type="saml:IDType" use="required" />
    <attribute name="InResponseTo" type="saml:IDReferenceType" use="optional" />
    <attribute name="MajorVersion" type="integer" use="required" />
    <attribute name="MinorVersion" type="integer" use="required" />
    <attribute name="IssueInstant" type="dateTime" use="required" />
    <attribute name="Recipient" type="anyURI" use="optional" />
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
ResponseID samlp:ResponseID Required
InResponseTo samlp:InResponseTo Optional
MajorVersion samlp:MajorVersion Required
MinorVersion samlp:MinorVersion Required
IssueInstant samlp:IssueInstant Required
Recipient samlp:Recipient Optional
Collapse Derivation Tree:
Collapse References:
samlp:ResponseType
