Docs for schema item ResponseType in OASIS Security Services (SAML) TC

Documentation for OASIS Security Services (SAML) TC

Definition Type:	ComplexType
Name:	ResponseType
Namespace:	urn:oasis:names:tc:SAML:1.0:protocol
Type:	samlp:ResponseAbstractType
Containing Schema:	oasis-sstc-saml-schema-protocol-1.0.xsd
Abstract

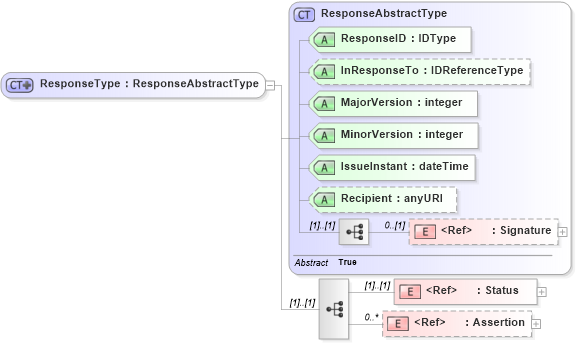

XSD Schema Diagram:

XSD Diagram of ResponseType in schema oasis-sstc-saml-schema-protocol-1_0_xsd (OASIS Security Services (SAML) TC)

XSD Schema Code:

<complexType name="ResponseType">
    <complexContent>
        <extension base="samlp:ResponseAbstractType">
            <sequence>
                <element ref="samlp:Status" />
                <element ref="saml:Assertion" minOccurs="0" maxOccurs="unbounded" />
            </sequence>
        </extension>
    </complexContent>
</complexType>

Child Elements:

Name	Type	Min Occurs	Max Occurs
Signature	ds:Signature	0	(1)
Status	samlp:Status	(1)	(1)
Assertion	saml:Assertion	0	unbounded

Child Attributes:

Name	Type	Default Value	Use
ResponseID	samlp:ResponseID		Required
InResponseTo	samlp:InResponseTo		Optional
MajorVersion	samlp:MajorVersion		Required
MinorVersion	samlp:MinorVersion		Required
IssueInstant	samlp:IssueInstant		Required
Recipient	samlp:Recipient		Optional

Derivation Tree:
	samlp:ResponseAbstractType *ResponseType* samlp:Response

References:
	samlp:Response
