Documentation for OASIS Security Services (SAML) TC
Definition Type: Element
Name: Response
Namespace: urn:oasis:names:tc:SAML:1.0:protocol
Type: samlp:ResponseType
Containing Schema: oasis-sstc-saml-schema-protocol-1.0.xsd
Abstract

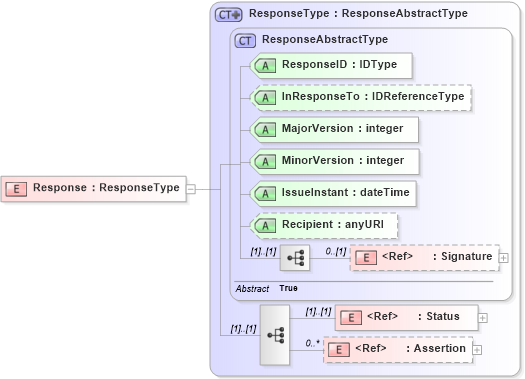

Collapse XSD Schema Diagram:
Drilldown into Assertion in schema oasis-sstc-saml-schema-assertion-1_0_xsd Drilldown into Status in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into Signature in schema xmldsig-core-schema_xsd Drilldown into Recipient in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into IssueInstant in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into MinorVersion in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into MajorVersion in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into InResponseTo in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into ResponseID in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into ResponseAbstractType in schema oasis-sstc-saml-schema-protocol-1_0_xsd Drilldown into ResponseType in schema oasis-sstc-saml-schema-protocol-1_0_xsdXSD Diagram of Response in schema oasis-sstc-saml-schema-protocol-1_0_xsd (OASIS Security Services (SAML) TC)
Collapse XSD Schema Code:
<element name="Response" type="samlp:ResponseType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Signature ds:Signature 0 (1)
Status samlp:Status (1) (1)
Assertion saml:Assertion 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
ResponseID samlp:ResponseID Required
InResponseTo samlp:InResponseTo Optional
MajorVersion samlp:MajorVersion Required
MinorVersion samlp:MinorVersion Required
IssueInstant samlp:IssueInstant Required
Recipient samlp:Recipient Optional
Collapse Derivation Tree:
