Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: Item
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: cac:ItemType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract

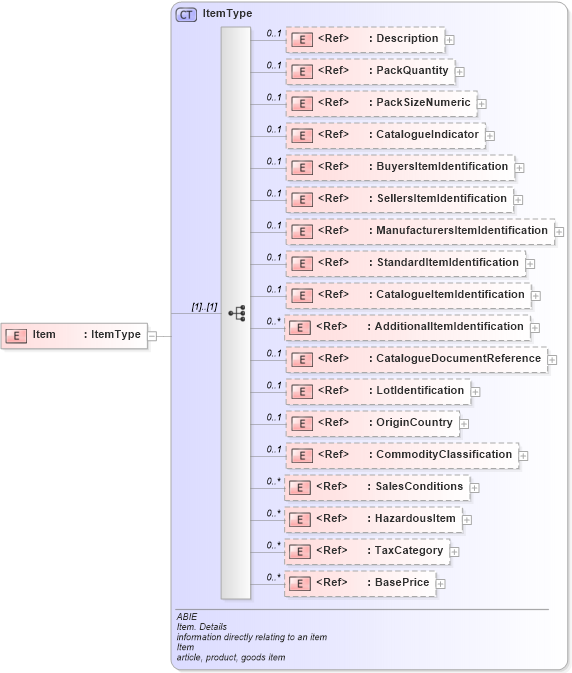

Collapse XSD Schema Diagram:
Drilldown into BasePrice in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into TaxCategory in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into HazardousItem in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into SalesConditions in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CommodityClassification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OriginCountry in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into LotIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CatalogueDocumentReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into AdditionalItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CatalogueItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into StandardItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ManufacturersItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into SellersItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into BuyersItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CatalogueIndicator in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into PackSizeNumeric in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into PackQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ItemType in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of Item in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="Item" type="ItemType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description cbc:Description 0 1
PackQuantity cbc:PackQuantity 0 1
PackSizeNumeric cbc:PackSizeNumeric 0 1
CatalogueIndicator cbc:CatalogueIndicator 0 1
BuyersItemIdentification cac:BuyersItemIdentification 0 1
SellersItemIdentification cac:SellersItemIdentification 0 1
ManufacturersItemIdentification cac:ManufacturersItemIdentification 0 1
StandardItemIdentification cac:StandardItemIdentification 0 1
CatalogueItemIdentification cac:CatalogueItemIdentification 0 1
AdditionalItemIdentification cac:AdditionalItemIdentification 0 unbounded
CatalogueDocumentReference cac:CatalogueDocumentReference 0 1
LotIdentification cac:LotIdentification 0 1
OriginCountry cac:OriginCountry 0 1
CommodityClassification cac:CommodityClassification 0 1
SalesConditions cac:SalesConditions 0 unbounded
HazardousItem cac:HazardousItem 0 unbounded
TaxCategory cac:TaxCategory 0 unbounded
BasePrice cac:BasePrice 0 unbounded
Collapse Derivation Tree:
