Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: ItemType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Item. Details information directly relating to an item Item article, product, goods item

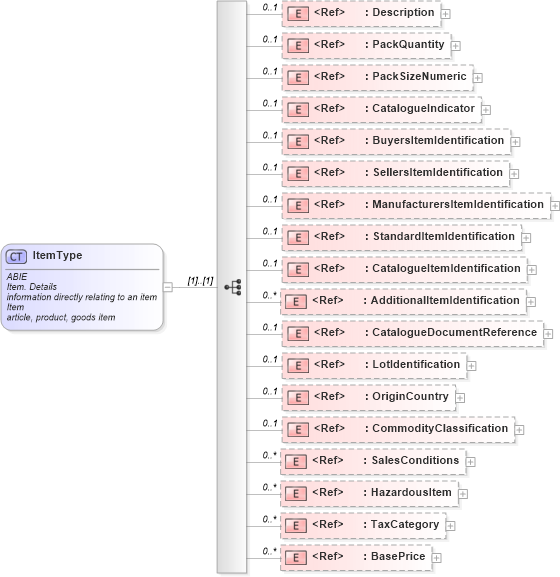

Collapse XSD Schema Diagram:
Drilldown into BasePrice in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into TaxCategory in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into HazardousItem in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into SalesConditions in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CommodityClassification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OriginCountry in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into LotIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CatalogueDocumentReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into AdditionalItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CatalogueItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into StandardItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ManufacturersItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into SellersItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into BuyersItemIdentification in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into CatalogueIndicator in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into PackSizeNumeric in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into PackQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-1_0_xsdXSD Diagram of ItemType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="ItemType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Item. Details</ccts:DictionaryEntryName>
                <ccts:Definition>information directly relating to an item</ccts:Definition>
                <ccts:ObjectClass>Item</ccts:ObjectClass>
                <ccts:AlternativeBusinessTerms>article, product, goods item</ccts:AlternativeBusinessTerms>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:Description" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Description. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>a free form field that can be used to give a text description of the item.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Description</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PackQuantity" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Pack Quantity. Quantity</ccts:DictionaryEntryName>
                        <ccts:Definition>the unit packaging quantity.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Pack Quantity</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Quantity</ccts:RepresentationTerm>
                        <ccts:DataType>Quantity. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PackSizeNumeric" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Pack Size. Numeric</ccts:DictionaryEntryName>
                        <ccts:Definition>the number of items in a pack.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Pack Size</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Numeric</ccts:RepresentationTerm>
                        <ccts:DataType>Numeric. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CatalogueIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Catalogue_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>an indicator that denotes whether the item was ordered from a catalogue (true) or not (false).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Catalogue</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="BuyersItemIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Buyers_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with its identification according to the buyers system.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Buyers</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SellersItemIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Sellers_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with its identification according to the sellers system.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Sellers</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ManufacturersItemIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Manufacturers_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with its identification according to the manufacturers system.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Manufacturers</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="StandardItemIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Standard_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with its identification according to a standard system.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Standard</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CatalogueItemIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Catalogue_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with its identification according to a cataloging system.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Catalogue</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="AdditionalItemIdentification" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Additional_ Item Identification. Item Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with other identification means</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Item Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Item Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CatalogueDocumentReference" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Catalogue_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with the catalogue from which the item was selected.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Catalogue</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="LotIdentification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Lot Identification</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with its lot identification (the identification that allows recall of the item if necessary)</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Lot Identification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Lot Identification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="OriginCountry" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Origin_ Country. Country</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with its country of origin</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Origin</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Country</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Country</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="CommodityClassification" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Commodity Classification</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with its classification(s) according to a commodity classifying system.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Commodity Classification</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Commodity Classification</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SalesConditions" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Sales Conditions</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with sales conditions appertaining to it.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Sales Conditions</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Sales Conditions</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="HazardousItem" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Hazardous Item</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with its hazardous item information.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Hazardous Item</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Hazardous Item</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="TaxCategory" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Tax Category</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with one or more taxes</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Tax Category</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Tax Category</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="BasePrice" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Item. Base Price</ccts:DictionaryEntryName>
                        <ccts:Definition>associates the item with one or more base prices.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Item</ccts:ObjectClass>
                        <ccts:PropertyTerm>Base Price</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Base Price</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Description cbc:Description 0 1
PackQuantity cbc:PackQuantity 0 1
PackSizeNumeric cbc:PackSizeNumeric 0 1
CatalogueIndicator cbc:CatalogueIndicator 0 1
BuyersItemIdentification cac:BuyersItemIdentification 0 1
SellersItemIdentification cac:SellersItemIdentification 0 1
ManufacturersItemIdentification cac:ManufacturersItemIdentification 0 1
StandardItemIdentification cac:StandardItemIdentification 0 1
CatalogueItemIdentification cac:CatalogueItemIdentification 0 1
AdditionalItemIdentification cac:AdditionalItemIdentification 0 unbounded
CatalogueDocumentReference cac:CatalogueDocumentReference 0 1
LotIdentification cac:LotIdentification 0 1
OriginCountry cac:OriginCountry 0 1
CommodityClassification cac:CommodityClassification 0 1
SalesConditions cac:SalesConditions 0 unbounded
HazardousItem cac:HazardousItem 0 unbounded
TaxCategory cac:TaxCategory 0 unbounded
BasePrice cac:BasePrice 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:Item
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
