Definition Type: ComplexType
Name: OrderLineType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract
Documentation:
ABIE Order Line. Details information directly relating to a line item of one an Order transaction. It identifies the line item but only includes details about the alternatives, substitues and replacement line items. Order Line
Collapse XSD Schema Diagram:

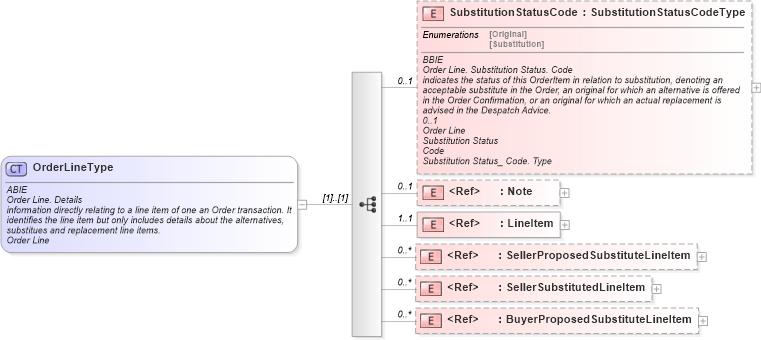

Drilldown into BuyerProposedSubstituteLineItem in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into SellerSubstitutedLineItem in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into SellerProposedSubstituteLineItem in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into LineItem in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into SubstitutionStatusCode in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of OrderLineType in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="OrderLineType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Order Line. Details</ccts:DictionaryEntryName>
                <ccts:Definition>information directly relating to a line item of one an Order transaction. It identifies the line item but only includes details about the alternatives, substitues and replacement line items.</ccts:Definition>
                <ccts:ObjectClass>Order Line</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="SubstitutionStatusCode" type="sst:SubstitutionStatusCodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Order Line. Substitution Status. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>indicates the status of this OrderItem in relation to substitution, denoting an acceptable substitute in the Order, an original for which an alternative is offered in the Order Confirmation, or an original for which an actual replacement is advised in the Despatch Advice.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Order Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Substitution Status</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Substitution Status_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Note" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Order Line. Note. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>contains any free form text pertinent to the line of the document. This element may contain notes or any other similar information that is not contained explicitly in another structure.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Order Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Note</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="LineItem" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Order Line. Line Item</ccts:DictionaryEntryName>
                        <ccts:Definition>information directly relating to a line item of a transaction. It identifies the item but only includes details about the item that are pertinent  to one occurrence on a line item, e.g. quantity etc.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Order Line</ccts:ObjectClass>
                        <ccts:PropertyTerm>Line Item</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Line Item</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SellerProposedSubstituteLineItem" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Order Line. Seller Proposed_ Substitute Line Item. Line Item</ccts:DictionaryEntryName>
                        <ccts:Definition>the item(s) that the seller proposes for the substitution - the original ordered quantity, pricing etc, which may be different from the substituted item. It is assumed that hazard and shipment details etc will be the same.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Order Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Seller Proposed</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Substitute Line Item</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Line Item</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SellerSubstitutedLineItem" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Order Line. Seller Substituted_ Line Item. Line Item</ccts:DictionaryEntryName>
                        <ccts:Definition>item(s) replaced by the seller - the original ordered quantity, pricing etc which may be different from the substituted item. It is assumed that hazard and shipment details etc will be the same.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Order Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Seller Substituted</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Line Item</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Line Item</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="BuyerProposedSubstituteLineItem" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:oasis:names:specification:ubl:schema:xsd:CoreComponentParameters-1.0">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Order Line. Buyer Proposed_ Substitute Line Item. Line Item</ccts:DictionaryEntryName>
                        <ccts:Definition>alternative item(s) acceptable to the buyer - quantity, pricing etc which may be different from the preferred item. It is assumed that hazard and shipment details etc will be the same.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Order Line</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Buyer Proposed</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Substitute Line Item</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Line Item</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
SubstitutionStatusCode cac:SubstitutionStatusCode 0 1
Note cbc:Note 0 1
LineItem cac:LineItem 1 1
SellerProposedSubstituteLineItem cac:SellerProposedSubstituteLineItem 0 unbounded
SellerSubstitutedLineItem cac:SellerSubstitutedLineItem 0 unbounded
BuyerProposedSubstituteLineItem cac:BuyerProposedSubstituteLineItem 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:OrderLine, nsF:RespondedOrderLine
