Definition Type: Element
Name: LineItem
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-1.0
Type: cac:LineItemType
Containing Schema: UBL-CommonAggregateComponents-1.0.xsd
Abstract

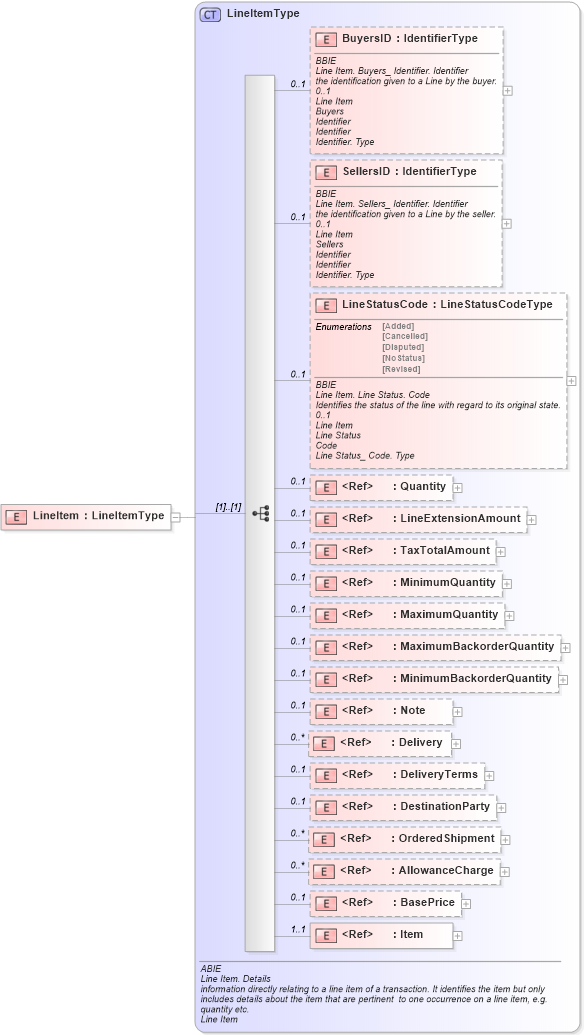

Collapse XSD Schema Diagram:
Drilldown into Item in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into BasePrice in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into AllowanceCharge in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OrderedShipment in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into DestinationParty in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into DeliveryTerms in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Delivery in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into MinimumBackorderQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into MaximumBackorderQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into MaximumQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into MinimumQuantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into TaxTotalAmount in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into LineExtensionAmount in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into Quantity in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into LineStatusCode in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into SellersID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into BuyersID in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into LineItemType in schema ubl-commonaggregatecomponents-1_0_xsdXSD Diagram of LineItem in schema ubl-commonaggregatecomponents-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="LineItem" type="LineItemType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
BuyersID cac:BuyersID 0 1
SellersID cac:SellersID 0 1
LineStatusCode cac:LineStatusCode 0 1
Quantity cbc:Quantity 0 1
LineExtensionAmount cbc:LineExtensionAmount 0 1
TaxTotalAmount cbc:TaxTotalAmount 0 1
MinimumQuantity cbc:MinimumQuantity 0 1
MaximumQuantity cbc:MaximumQuantity 0 1
MaximumBackorderQuantity cbc:MaximumBackorderQuantity 0 1
MinimumBackorderQuantity cbc:MinimumBackorderQuantity 0 1
Note cbc:Note 0 1
Delivery cac:Delivery 0 unbounded
DeliveryTerms cac:DeliveryTerms 0 1
DestinationParty cac:DestinationParty 0 1
OrderedShipment cac:OrderedShipment 0 unbounded
AllowanceCharge cac:AllowanceCharge 0 unbounded
BasePrice cac:BasePrice 0 1
Item cac:Item 1 1
Collapse Derivation Tree:
