Definition Type: Element
Name: OrderResponseSimple
Namespace: urn:oasis:names:specification:ubl:schema:xsd:OrderResponseSimple-1.0
Type: nsG:OrderResponseSimpleType
Containing Schema: UBL-OrderResponseSimple-1.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

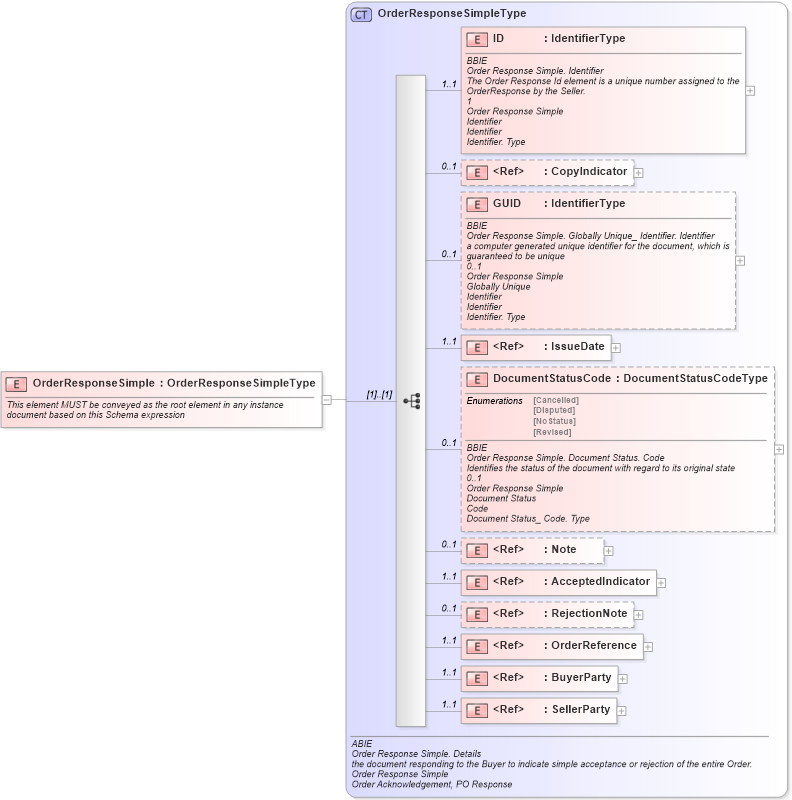

Collapse XSD Schema Diagram:
Drilldown into SellerParty in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into BuyerParty in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into OrderReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into RejectionNote in schema ubl-orderresponsesimple-1_0_xsd Drilldown into AcceptedIndicator in schema ubl-orderresponsesimple-1_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into DocumentStatusCode in schema ubl-orderresponsesimple-1_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into GUID in schema ubl-orderresponsesimple-1_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ID in schema ubl-orderresponsesimple-1_0_xsd Drilldown into OrderResponseSimpleType in schema ubl-orderresponsesimple-1_0_xsdXSD Diagram of OrderResponseSimple in schema ubl-orderresponsesimple-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="OrderResponseSimple" type="OrderResponseSimpleType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsG:ID 1 1
CopyIndicator cbc:CopyIndicator 0 1
GUID nsG:GUID 0 1
IssueDate cbc:IssueDate 1 1
DocumentStatusCode nsG:DocumentStatusCode 0 1
Note cbc:Note 0 1
AcceptedIndicator nsG:AcceptedIndicator 1 1
RejectionNote nsG:RejectionNote 0 1
OrderReference cac:OrderReference 1 1
BuyerParty cac:BuyerParty 1 1
SellerParty cac:SellerParty 1 1
Collapse Derivation Tree:
