Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: ReceiptAdvice
Namespace: urn:oasis:names:specification:ubl:schema:xsd:ReceiptAdvice-1.0
Type: nsH:ReceiptAdviceType
Containing Schema: UBL-ReceiptAdvice-1.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

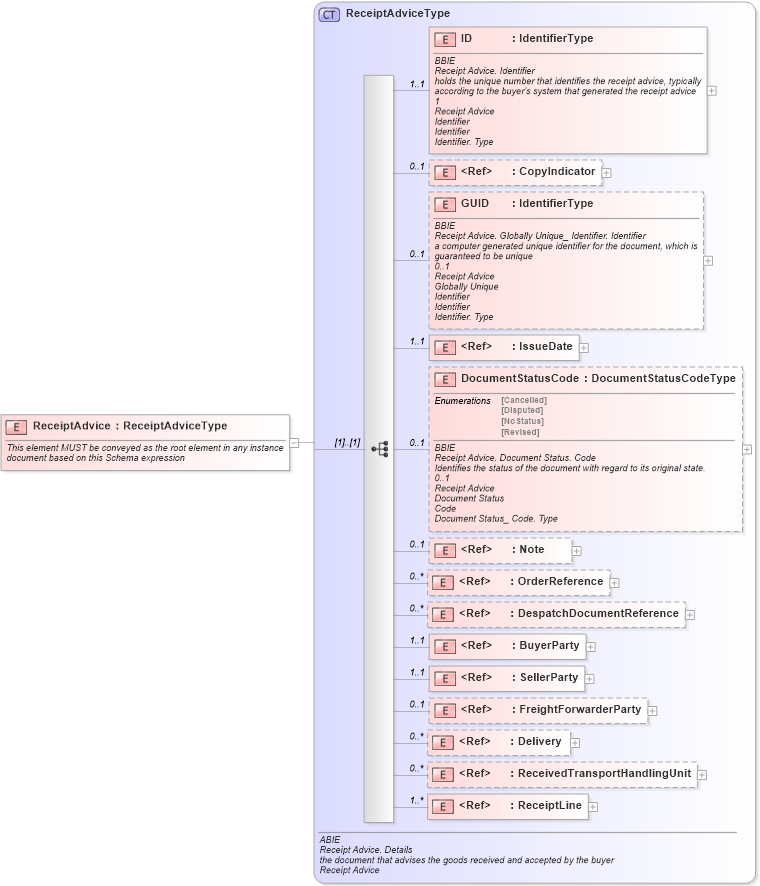

Collapse XSD Schema Diagram:
Drilldown into ReceiptLine in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into ReceivedTransportHandlingUnit in schema ubl-receiptadvice-1_0_xsd Drilldown into Delivery in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into FreightForwarderParty in schema ubl-receiptadvice-1_0_xsd Drilldown into SellerParty in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into BuyerParty in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into DespatchDocumentReference in schema ubl-receiptadvice-1_0_xsd Drilldown into OrderReference in schema ubl-commonaggregatecomponents-1_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into DocumentStatusCode in schema ubl-receiptadvice-1_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into GUID in schema ubl-receiptadvice-1_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-1_0_xsd Drilldown into ID in schema ubl-receiptadvice-1_0_xsd Drilldown into ReceiptAdviceType in schema ubl-receiptadvice-1_0_xsdXSD Diagram of ReceiptAdvice in schema ubl-receiptadvice-1_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="ReceiptAdvice" type="ReceiptAdviceType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ID nsH:ID 1 1
CopyIndicator cbc:CopyIndicator 0 1
GUID nsH:GUID 0 1
IssueDate cbc:IssueDate 1 1
DocumentStatusCode nsH:DocumentStatusCode 0 1
Note cbc:Note 0 1
OrderReference cac:OrderReference 0 unbounded
DespatchDocumentReference nsH:DespatchDocumentReference 0 unbounded
BuyerParty cac:BuyerParty 1 1
SellerParty cac:SellerParty 1 1
FreightForwarderParty nsH:FreightForwarderParty 0 1
Delivery cac:Delivery 0 unbounded
ReceivedTransportHandlingUnit nsH:ReceivedTransportHandlingUnit 0 unbounded
ReceiptLine cac:ReceiptLine 1 unbounded
Collapse Derivation Tree:
