Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: CertificateOfOrigin
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CertificateOfOrigin-2
Type: nsI:CertificateOfOriginType
Containing Schema: UBL-CertificateOfOrigin-2.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

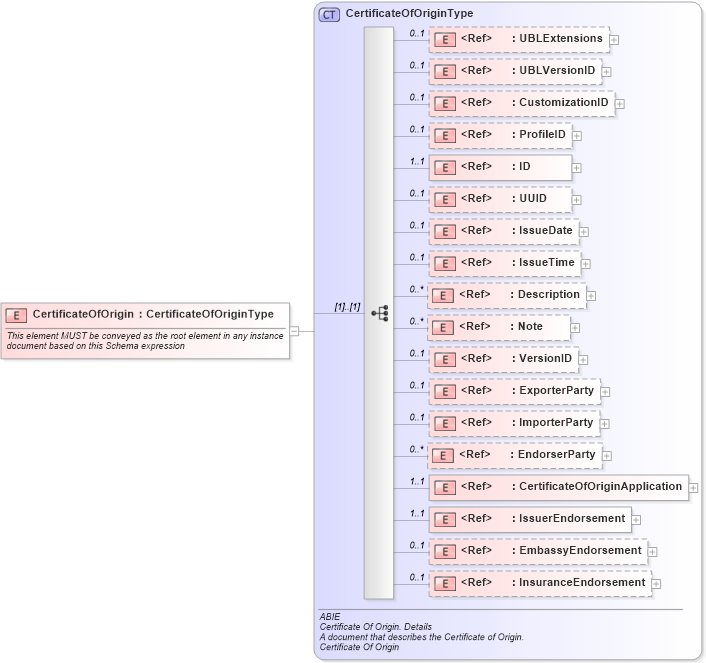

Collapse XSD Schema Diagram:
Drilldown into InsuranceEndorsement in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into EmbassyEndorsement in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into IssuerEndorsement in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into CertificateOfOriginApplication in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into EndorserParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ImporterParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ExporterParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into VersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Description in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into CertificateOfOriginType in schema ubl-certificateoforigin-2_0_xsdXSD Diagram of CertificateOfOrigin in schema ubl-certificateoforigin-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="CertificateOfOrigin" type="CertificateOfOriginType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 0 1
IssueTime cbc:IssueTime 0 1
Description cbc:Description 0 unbounded
Note cbc:Note 0 unbounded
VersionID cbc:VersionID 0 1
ExporterParty cac:ExporterParty 0 1
ImporterParty cac:ImporterParty 0 1
EndorserParty cac:EndorserParty 0 unbounded
CertificateOfOriginApplication cac:CertificateOfOriginApplication 1 1
IssuerEndorsement cac:IssuerEndorsement 1 1
EmbassyEndorsement cac:EmbassyEndorsement 0 1
InsuranceEndorsement cac:InsuranceEndorsement 0 1
Collapse Derivation Tree:
