Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: EmbassyEndorsement
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:EndorsementType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

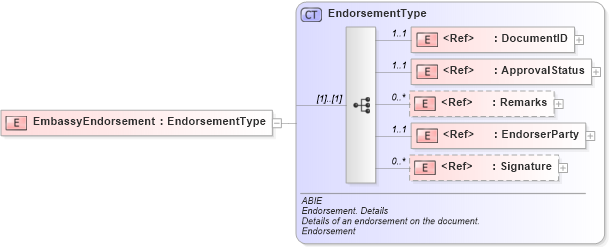

Collapse XSD Schema Diagram:
Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into EndorserParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Remarks in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ApprovalStatus in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into EndorsementType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of EmbassyEndorsement in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="EmbassyEndorsement" type="EndorsementType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID cbc:DocumentID 1 1
ApprovalStatus cbc:ApprovalStatus 1 1
Remarks cbc:Remarks 0 unbounded
EndorserParty cac:EndorserParty 1 1
Signature cac:Signature 0 unbounded
Collapse Derivation Tree:
