Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: EndorsementType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Endorsement. Details Details of an endorsement on the document. Endorsement

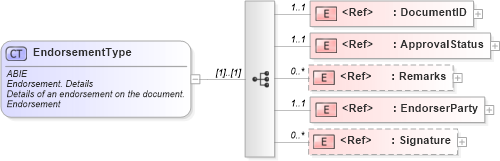

Collapse XSD Schema Diagram:
Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into EndorserParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Remarks in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ApprovalStatus in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of EndorsementType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="EndorsementType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Endorsement. Details</ccts:DictionaryEntryName>
                <ccts:Definition>Details of an endorsement on the document.</ccts:Definition>
                <ccts:ObjectClass>Endorsement</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:DocumentID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Endorsement. Document. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the endorsement.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Endorsement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Document</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ApprovalStatus" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Endorsement. Approval Status. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Specifies the status of the endorsement.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Endorsement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Approval Status</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                        <ccts:AlternativeBusinessTerms>Authentication Code</ccts:AlternativeBusinessTerms>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Remarks" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Endorsement. Remarks. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Remarks by the endorsing party.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Endorsement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Remarks</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="EndorserParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Endorsement. Endorser Party</ccts:DictionaryEntryName>
                        <ccts:Definition>The type of party providing the endorsement.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Endorsement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Endorser Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Endorser Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Signature" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Endorsement. Signature</ccts:DictionaryEntryName>
                        <ccts:Definition>One or more signatures applied to the endorsement.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Endorsement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Signature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Signature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentID cbc:DocumentID 1 1
ApprovalStatus cbc:ApprovalStatus 1 1
Remarks cbc:Remarks 0 unbounded
EndorserParty cac:EndorserParty 1 1
Signature cac:Signature 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:EmbassyEndorsement, cac:Endorsement, cac:InsuranceEndorsement, cac:IssuerEndorsement
