Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: CertificateOfOriginApplication
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Type: cac:CertificateOfOriginApplicationType
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract

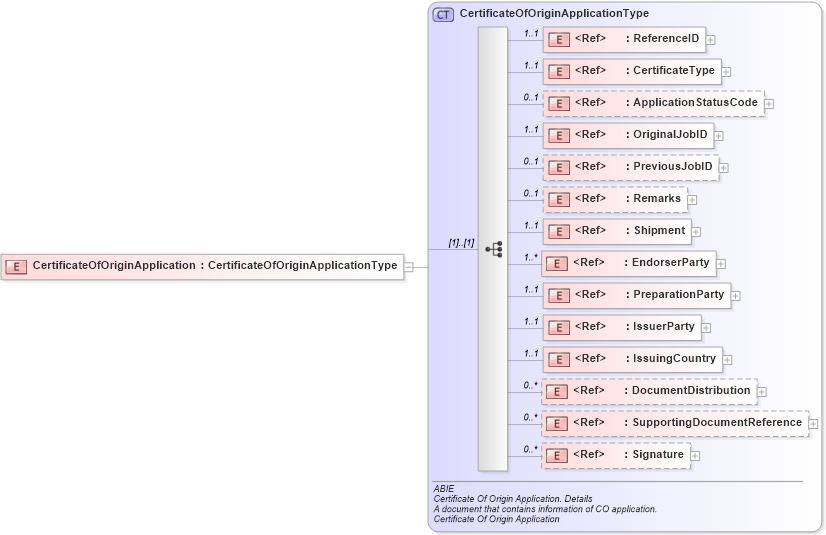

Collapse XSD Schema Diagram:
Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SupportingDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DocumentDistribution in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into IssuingCountry in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into IssuerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PreparationParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into EndorserParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Shipment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Remarks in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PreviousJobID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into OriginalJobID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ApplicationStatusCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CertificateType in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ReferenceID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CertificateOfOriginApplicationType in schema ubl-commonaggregatecomponents-2_0_xsdXSD Diagram of CertificateOfOriginApplication in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="CertificateOfOriginApplication" type="CertificateOfOriginApplicationType" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ReferenceID cbc:ReferenceID 1 1
CertificateType cbc:CertificateType 1 1
ApplicationStatusCode cbc:ApplicationStatusCode 0 1
OriginalJobID cbc:OriginalJobID 1 1
PreviousJobID cbc:PreviousJobID 0 1
Remarks cbc:Remarks 0 1
Shipment cac:Shipment 1 1
EndorserParty cac:EndorserParty 1 unbounded
PreparationParty cac:PreparationParty 1 1
IssuerParty cac:IssuerParty 1 1
IssuingCountry cac:IssuingCountry 1 1
DocumentDistribution cac:DocumentDistribution 0 unbounded
SupportingDocumentReference cac:SupportingDocumentReference 0 unbounded
Signature cac:Signature 0 unbounded
Collapse Derivation Tree:
