Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: CertificateOfOriginApplicationType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CommonAggregateComponents-2
Containing Schema: UBL-CommonAggregateComponents-2.0.xsd
Abstract
Documentation:
ABIE Certificate Of Origin Application. Details A document that contains information of CO application. Certificate Of Origin Application

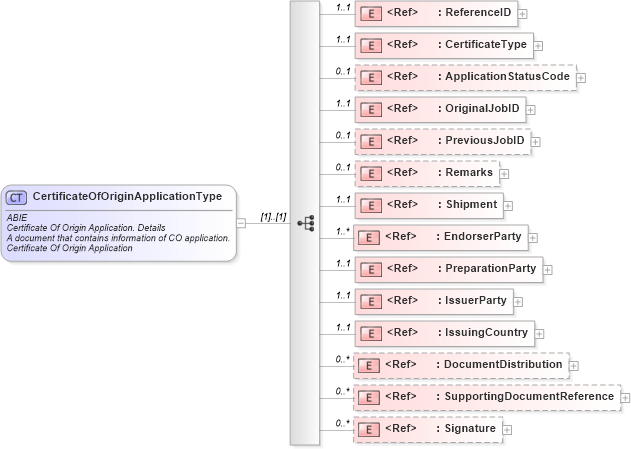

Collapse XSD Schema Diagram:
Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SupportingDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DocumentDistribution in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into IssuingCountry in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into IssuerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PreparationParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into EndorserParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Shipment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Remarks in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PreviousJobID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into OriginalJobID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ApplicationStatusCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CertificateType in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ReferenceID in schema ubl-commonbasiccomponents-2_0_xsdXSD Diagram of CertificateOfOriginApplicationType in schema ubl-commonaggregatecomponents-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="CertificateOfOriginApplicationType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Certificate Of Origin Application. Details</ccts:DictionaryEntryName>
                <ccts:Definition>A document that contains information of CO application.</ccts:Definition>
                <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="cbc:ReferenceID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Reference. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Holds the unique number that identifies the Despatch Advice, typically according to the seller's system that generated the Despatch Advice.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTerm>Reference</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CertificateType" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Certificate Type. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Type of CO. Type could be Ordinary, Re-export, Commonwealth Preferential etc.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTerm>Certificate Type</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ApplicationStatusCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Application Status Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates the status of the application (revision, replacement, etc.).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTerm>Application Status Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:OriginalJobID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Original_ Job Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The latest Job Number given to the Origin application. This is used by the system to keep track of the amendments or cancellation of the origin application applied earlier.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Original</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Job Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PreviousJobID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Previous_ Job Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The previous Job Number assigned in case the application undergoes query or change. This is used by the system to keep track of the amendments or cancellation of the origin application applied earlier.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Previous</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Job Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Remarks" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Remarks. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Remarks by the applicant for the Certificate of Origin Application.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTerm>Remarks</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Shipment" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Shipment</ccts:DictionaryEntryName>
                        <ccts:Definition>Information about the separately identifiable collection of goods items (available to be) transported from one consignor to one consignee via one or more modes of transport.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTerm>Shipment</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Shipment</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="EndorserParty" minOccurs="1" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Endorser Party</ccts:DictionaryEntryName>
                        <ccts:Definition>The party providing the endorsement.</ccts:Definition>
                        <ccts:Cardinality>1..n</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTerm>Endorser Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Endorser Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="PreparationParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Preparation_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>Details of an individual, a group, or a body that prepares the Certificate of Origin application.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Preparation</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="IssuerParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Issuer_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>Details of the authorized organization that issued the Certificate of Origin.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Issuer</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="IssuingCountry" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Issuing_ Country. Country</ccts:DictionaryEntryName>
                        <ccts:Definition>The country for which the Certificate of Origin is issued.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Issuing</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Country</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Country</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="DocumentDistribution" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Document Distribution</ccts:DictionaryEntryName>
                        <ccts:Definition>The distribution of the Certificate of Origin to interested parties.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTerm>Document Distribution</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Distribution</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SupportingDocumentReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Supporting_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An associative reference to a supporting document.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Supporting</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Signature" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Certificate Of Origin Application. Signature</ccts:DictionaryEntryName>
                        <ccts:Definition>One or more signatures applied to the document instance.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Certificate Of Origin Application</ccts:ObjectClass>
                        <ccts:PropertyTerm>Signature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Signature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ReferenceID cbc:ReferenceID 1 1
CertificateType cbc:CertificateType 1 1
ApplicationStatusCode cbc:ApplicationStatusCode 0 1
OriginalJobID cbc:OriginalJobID 1 1
PreviousJobID cbc:PreviousJobID 0 1
Remarks cbc:Remarks 0 1
Shipment cac:Shipment 1 1
EndorserParty cac:EndorserParty 1 unbounded
PreparationParty cac:PreparationParty 1 1
IssuerParty cac:IssuerParty 1 1
IssuingCountry cac:IssuingCountry 1 1
DocumentDistribution cac:DocumentDistribution 0 unbounded
SupportingDocumentReference cac:SupportingDocumentReference 0 unbounded
Signature cac:Signature 0 unbounded
Collapse Derivation Tree:
Collapse References:
cac:CertificateOfOriginApplication
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
