Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: CreditNoteType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:CreditNote-2
Containing Schema: UBL-CreditNote-2.0.xsd
Abstract
Documentation:
ABIE Credit Note. Details The document used to specify credits due to the Debtor from the Creditor. Credit Note

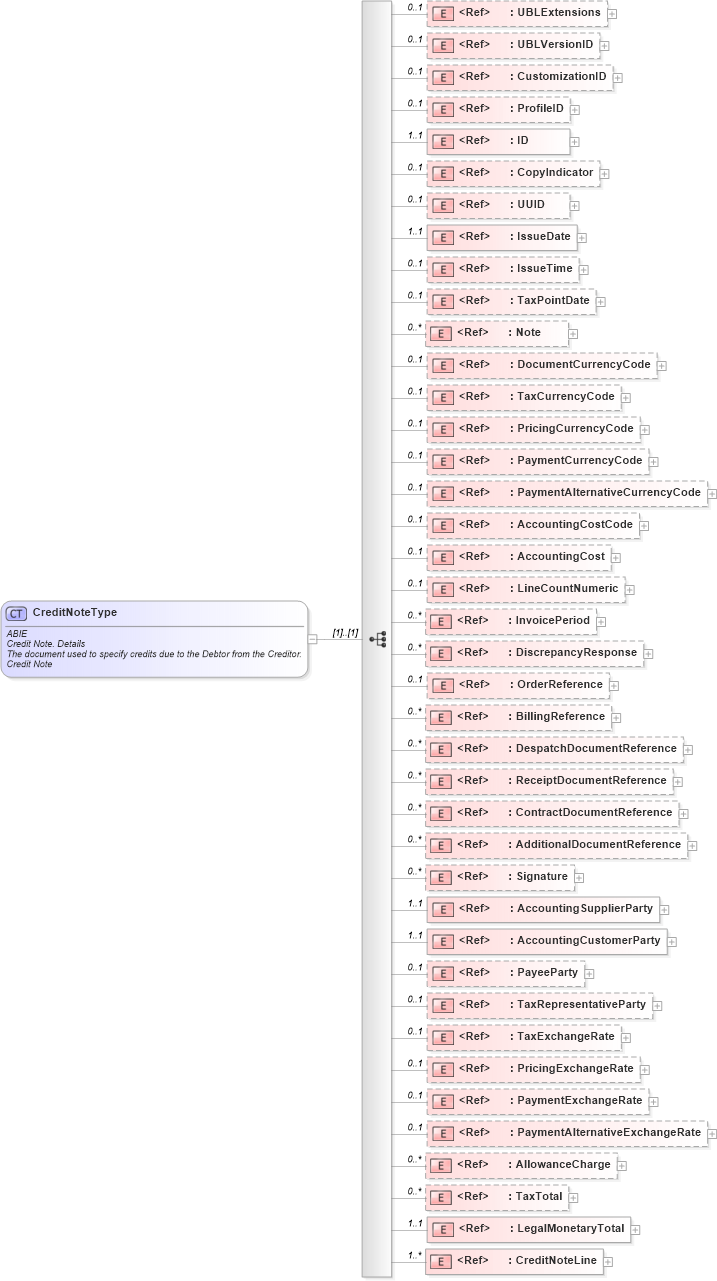

Collapse XSD Schema Diagram:
Drilldown into CreditNoteLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LegalMonetaryTotal in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TaxTotal in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AllowanceCharge in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentAlternativeExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PricingExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TaxExchangeRate in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TaxRepresentativeParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PayeeParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ContractDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into ReceiptDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DespatchDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BillingReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OrderReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DiscrepancyResponse in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into InvoicePeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LineCountNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AccountingCost in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into AccountingCostCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentAlternativeCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PaymentCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into PricingCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TaxPointDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsdXSD Diagram of CreditNoteType in schema ubl-creditnote-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="CreditNoteType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Credit Note. Details</ccts:DictionaryEntryName>
                <ccts:Definition>The document used to specify credits due to the Debtor from the Creditor.</ccts:Definition>
                <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ext:UBLExtensions" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>A container for all extensions present in the document.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:UBLVersionID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. UBL Version Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The earliest version of the UBL 2 schema for this document type that defines all of the elements that might be encountered in the current instance.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>UBL Version Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>2.0.5</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CustomizationID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Customization Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies a user-defined customization of UBL for a specific use.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Customization Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>NES</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ProfileID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Profile Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies a user-defined profile of the customization of UBL being used.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Profile Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>BasicProcurementProcess</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the Credit Note assigned by the Creditor.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CopyIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Copy_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether the Credit Note is a copy (true) or not (false).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Copy</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:UUID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. UUID. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>A universally unique identifier for an instance of this ABIE.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>UUID</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:IssueDate" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Issue Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The date assigned by the Creditor on which the Credit Note was issued.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issue Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:IssueTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Issue Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The time assigned by the Creditor at which the Credit Note was issued.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issue Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TaxPointDate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Tax Point Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The date of the Credit Note used Indicates the point at which tax becomes applicable.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Tax Point Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Note" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Note. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Free-form text applying to the Credit Note. This element may contain notes or any other similar information that is not contained explicitly in another structure.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Note</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DocumentCurrencyCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Document_ Currency Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The default currency for the Credit Note.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Document</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Currency Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Currency_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TaxCurrencyCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Tax_ Currency Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The currency used for tax amounts in the Credit Note.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Tax</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Currency Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Currency_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PricingCurrencyCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Pricing_ Currency Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The currency used for prices in the Credit Note.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Pricing</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Currency Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Currency_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PaymentCurrencyCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Payment_ Currency Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The currency used for payment in the Credit Note.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Payment</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Currency Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Currency_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:PaymentAlternativeCurrencyCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Payment Alternative_ Currency Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The alternative currency used for payment in the Credit Note.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Payment Alternative</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Currency Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Currency_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AccountingCostCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Accounting Cost Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The Buyer's accounting code applied to the Credit Note as a whole.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Accounting Cost Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:AccountingCost" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Accounting Cost. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>The Buyer's accounting code applied to the Credit Note as a whole, expressed as text.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Accounting Cost</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LineCountNumeric" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Line Count. Numeric</ccts:DictionaryEntryName>
                        <ccts:Definition>The number of lines in the document.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Line Count</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Numeric</ccts:RepresentationTerm>
                        <ccts:DataType>Numeric. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:InvoicePeriod" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Invoice_ Period. Period</ccts:DictionaryEntryName>
                        <ccts:Definition>Associates the Credit Note with an Invoicing Period rather than a specific Invoice.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Invoice</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Period</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Period</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:DiscrepancyResponse" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Discrepancy_ Response. Response</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to a reason for the Credit Note as a whole.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Discrepancy</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Response</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Response</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:OrderReference" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Order Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Order Reference.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Order Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Order Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:BillingReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Billing Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Billing Reference.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Billing Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Billing Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:DespatchDocumentReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Despatch_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An associative reference to Despatch Advice.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Despatch</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:ReceiptDocumentReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Receipt_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An associative reference to Receipt Advice.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Receipt</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:ContractDocumentReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Contract_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An associative reference to Contract.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Contract</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:AdditionalDocumentReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Additional_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An associative reference to Additional Document.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:Signature" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Signature</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Signature.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Signature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Signature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:AccountingSupplierParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Accounting_ Supplier Party. Supplier Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Accounting Supplier Party.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Accounting</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Supplier Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Supplier Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:AccountingCustomerParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Accounting_ Customer Party. Customer Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Accounting Customer Party.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Accounting</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Customer Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Customer Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:PayeeParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Payee_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Payee.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Payee</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:TaxRepresentativeParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Tax Representative_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Tax Representative.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Tax Representative</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:TaxExchangeRate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Tax_ Exchange Rate. Exchange Rate</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Exchange Rate between the Document Currency and the Tax Currency.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Tax</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Exchange Rate</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Exchange Rate</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:PricingExchangeRate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Pricing_ Exchange Rate. Exchange Rate</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Exchange Rate between the Document Currency and the Pricing Currency.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Pricing</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Exchange Rate</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Exchange Rate</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:PaymentExchangeRate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Payment_ Exchange Rate. Exchange Rate</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Exchange Rate between the Document Currency and the Payment Currency.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Payment</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Exchange Rate</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Exchange Rate</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:PaymentAlternativeExchangeRate" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Payment Alternative_ Exchange Rate. Exchange Rate</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Exchange Rate between the Document Currency and the Payment Alternative Currency.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Payment Alternative</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Exchange Rate</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Exchange Rate</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:AllowanceCharge" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Allowance Charge</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Allowances and Charges that apply to the Credit Note as a whole.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Allowance Charge</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Allowance Charge</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:TaxTotal" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Tax Total</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Tax Total.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Tax Total</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Tax Total</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:LegalMonetaryTotal" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Legal_ Monetary Total. Monetary Total</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the total amount payable on the Credit Note, including Allowances, Charges, and Taxes.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Legal</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Monetary Total</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Monetary Total</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:CreditNoteLine" minOccurs="1" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Credit Note. Credit Note Line</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to one or more Credit Note Lines.</ccts:Definition>
                        <ccts:Cardinality>1..n</ccts:Cardinality>
                        <ccts:ObjectClass>Credit Note</ccts:ObjectClass>
                        <ccts:PropertyTerm>Credit Note Line</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Credit Note Line</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
CopyIndicator cbc:CopyIndicator 0 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 1 1
IssueTime cbc:IssueTime 0 1
TaxPointDate cbc:TaxPointDate 0 1
Note cbc:Note 0 unbounded
DocumentCurrencyCode cbc:DocumentCurrencyCode 0 1
TaxCurrencyCode cbc:TaxCurrencyCode 0 1
PricingCurrencyCode cbc:PricingCurrencyCode 0 1
PaymentCurrencyCode cbc:PaymentCurrencyCode 0 1
PaymentAlternativeCurrencyCode cbc:PaymentAlternativeCurrencyCode 0 1
AccountingCostCode cbc:AccountingCostCode 0 1
AccountingCost cbc:AccountingCost 0 1
LineCountNumeric cbc:LineCountNumeric 0 1
InvoicePeriod cac:InvoicePeriod 0 unbounded
DiscrepancyResponse cac:DiscrepancyResponse 0 unbounded
OrderReference cac:OrderReference 0 1
BillingReference cac:BillingReference 0 unbounded
DespatchDocumentReference cac:DespatchDocumentReference 0 unbounded
ReceiptDocumentReference cac:ReceiptDocumentReference 0 unbounded
ContractDocumentReference cac:ContractDocumentReference 0 unbounded
AdditionalDocumentReference cac:AdditionalDocumentReference 0 unbounded
Signature cac:Signature 0 unbounded
AccountingSupplierParty cac:AccountingSupplierParty 1 1
AccountingCustomerParty cac:AccountingCustomerParty 1 1
PayeeParty cac:PayeeParty 0 1
TaxRepresentativeParty cac:TaxRepresentativeParty 0 1
TaxExchangeRate cac:TaxExchangeRate 0 1
PricingExchangeRate cac:PricingExchangeRate 0 1
PaymentExchangeRate cac:PaymentExchangeRate 0 1
PaymentAlternativeExchangeRate cac:PaymentAlternativeExchangeRate 0 1
AllowanceCharge cac:AllowanceCharge 0 unbounded
TaxTotal cac:TaxTotal 0 unbounded
LegalMonetaryTotal cac:LegalMonetaryTotal 1 1
CreditNoteLine cac:CreditNoteLine 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsJ:CreditNote
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
