Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: DespatchAdviceType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:DespatchAdvice-2
Containing Schema: UBL-DespatchAdvice-2.0.xsd
Abstract
Documentation:
ABIE Despatch Advice. Details The document used to describe the despatch or delivery of goods and services. Despatch Advice Ship Note, Dispatch Advice, Consignment Note

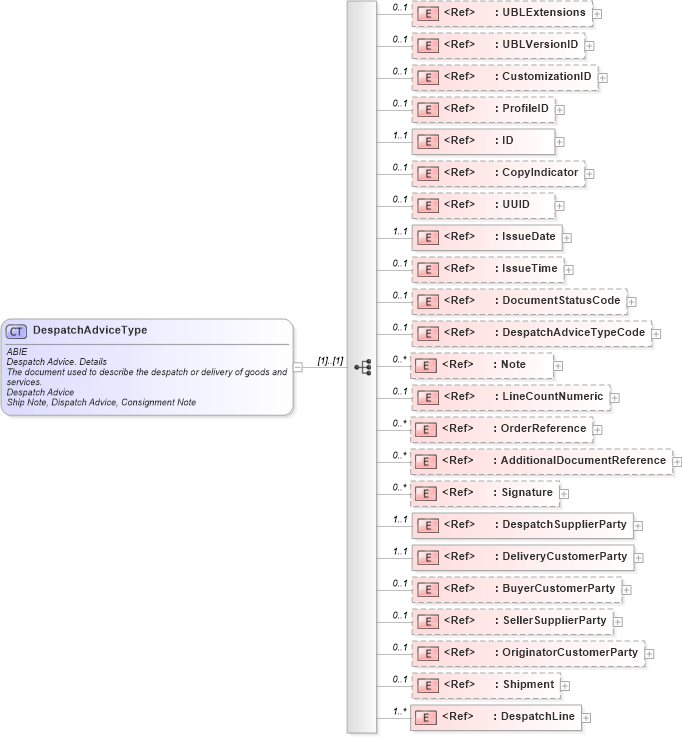

Collapse XSD Schema Diagram:
Drilldown into DespatchLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Shipment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginatorCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellerSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BuyerCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DespatchSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OrderReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LineCountNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DespatchAdviceTypeCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentStatusCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsdXSD Diagram of DespatchAdviceType in schema ubl-despatchadvice-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="DespatchAdviceType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Despatch Advice. Details</ccts:DictionaryEntryName>
                <ccts:Definition>The document used to describe the despatch or delivery of goods and services.</ccts:Definition>
                <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                <ccts:AlternativeBusinessTerms>Ship Note, Dispatch Advice, Consignment Note</ccts:AlternativeBusinessTerms>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ext:UBLExtensions" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>A container for all extensions present in the document.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:UBLVersionID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. UBL Version Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The earliest version of the UBL 2 schema for this document type that defines all of the elements that might be encountered in the current instance.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>UBL Version Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>2.0.5</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CustomizationID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Customization Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies a user-defined customization of UBL for a specific use.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Customization Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>NES</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ProfileID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Profile Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies a user-defined profile of the customization of UBL being used.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Profile Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>BasicProcurementProcess</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the Despatch Advice assigned by Despatch (Party).</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CopyIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Copy_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether the Despatch Advice is a copy (true) or not (false).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Copy</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:UUID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. UUID. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>A universally unique identifier for an instance of this ABIE.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>UUID</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:IssueDate" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Issue Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The date assigned by Despatch (Party) on which the Despatch Advice was issued.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issue Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:IssueTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Issue Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The time assigned by Despatch (Party) at which the Despatch Advice was issued.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issue Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DocumentStatusCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Document Status. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the status of the Despatch Advice with respect to its original state. This may be used if the document precedes the event and is subsequently found to be incorrect and in need of cancelling or revising.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Document Status</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Document Status_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DespatchAdviceTypeCode" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Despatch Advice Type Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies the type of the Despatch Advice.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Despatch Advice Type Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Note" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Note. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Free-form text applying to the Despatch Advice. This element may contain notes or any other similar information that is not contained explicitly in another structure.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Note</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LineCountNumeric" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Line Count. Numeric</ccts:DictionaryEntryName>
                        <ccts:Definition>The number of lines in the document.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Line Count</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Numeric</ccts:RepresentationTerm>
                        <ccts:DataType>Numeric. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:OrderReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Order Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Order Reference.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Order Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Order Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:AdditionalDocumentReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Additional_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An associative reference to Additional Document.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:Signature" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Signature</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Signature.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Signature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Signature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:DespatchSupplierParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Despatch_ Supplier Party. Supplier Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Despatch Party.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Despatch</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Supplier Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Supplier Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:DeliveryCustomerParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Delivery_ Customer Party. Customer Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Delivery Party.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Delivery</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Customer Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Customer Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:BuyerCustomerParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Buyer_ Customer Party. Customer Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Buyer.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Buyer</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Customer Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Customer Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:SellerSupplierParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Seller_ Supplier Party. Supplier Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Seller.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Seller</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Supplier Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Supplier Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:OriginatorCustomerParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Originator_ Customer Party. Customer Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Originator (Party).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Originator</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Customer Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Customer Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:Shipment" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Shipment</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to a Shipment detail.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Shipment</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Shipment</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:DespatchLine" minOccurs="1" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Despatch Advice. Despatch Line</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to one or more Despatch Advice Lines.</ccts:Definition>
                        <ccts:Cardinality>1..n</ccts:Cardinality>
                        <ccts:ObjectClass>Despatch Advice</ccts:ObjectClass>
                        <ccts:PropertyTerm>Despatch Line</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Despatch Line</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
CopyIndicator cbc:CopyIndicator 0 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 1 1
IssueTime cbc:IssueTime 0 1
DocumentStatusCode cbc:DocumentStatusCode 0 1
DespatchAdviceTypeCode cbc:DespatchAdviceTypeCode 0 1
Note cbc:Note 0 unbounded
LineCountNumeric cbc:LineCountNumeric 0 1
OrderReference cac:OrderReference 0 unbounded
AdditionalDocumentReference cac:AdditionalDocumentReference 0 unbounded
Signature cac:Signature 0 unbounded
DespatchSupplierParty cac:DespatchSupplierParty 1 1
DeliveryCustomerParty cac:DeliveryCustomerParty 1 1
BuyerCustomerParty cac:BuyerCustomerParty 0 1
SellerSupplierParty cac:SellerSupplierParty 0 1
OriginatorCustomerParty cac:OriginatorCustomerParty 0 1
Shipment cac:Shipment 0 1
DespatchLine cac:DespatchLine 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsL:DespatchAdvice
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
