Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: Element
Name: ReceiptAdvice
Namespace: urn:oasis:names:specification:ubl:schema:xsd:ReceiptAdvice-2
Type: nsW:ReceiptAdviceType
Containing Schema: UBL-ReceiptAdvice-2.0.xsd
Abstract
Documentation:
This element MUST be conveyed as the root element in any instance document based on this Schema expression

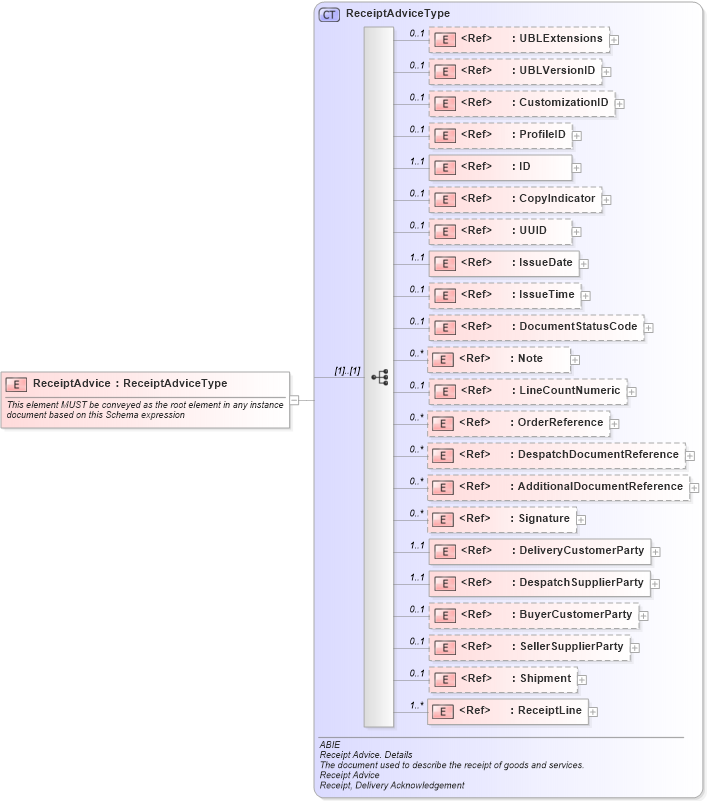

Collapse XSD Schema Diagram:
Drilldown into ReceiptLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Shipment in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellerSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BuyerCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DespatchSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DeliveryCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into DespatchDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OrderReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LineCountNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentStatusCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsd Drilldown into ReceiptAdviceType in schema ubl-receiptadvice-2_0_xsdXSD Diagram of ReceiptAdvice in schema ubl-receiptadvice-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:element name="ReceiptAdvice" type="ReceiptAdviceType">
    <xsd:annotation>
        <xsd:documentation>This element MUST be conveyed as the root element in any instance document based on this Schema expression</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
CopyIndicator cbc:CopyIndicator 0 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 1 1
IssueTime cbc:IssueTime 0 1
DocumentStatusCode cbc:DocumentStatusCode 0 1
Note cbc:Note 0 unbounded
LineCountNumeric cbc:LineCountNumeric 0 1
OrderReference cac:OrderReference 0 unbounded
DespatchDocumentReference cac:DespatchDocumentReference 0 unbounded
AdditionalDocumentReference cac:AdditionalDocumentReference 0 unbounded
Signature cac:Signature 0 unbounded
DeliveryCustomerParty cac:DeliveryCustomerParty 1 1
DespatchSupplierParty cac:DespatchSupplierParty 1 1
BuyerCustomerParty cac:BuyerCustomerParty 0 1
SellerSupplierParty cac:SellerSupplierParty 0 1
Shipment cac:Shipment 0 1
ReceiptLine cac:ReceiptLine 1 unbounded
Collapse Derivation Tree:
