Documentation for OASIS Universal Business Language (UBL) TC
Definition Type: ComplexType
Name: StatementType
Namespace: urn:oasis:names:specification:ubl:schema:xsd:Statement-2
Containing Schema: UBL-Statement-2.0.xsd
Abstract
Documentation:
ABIE Statement. Details The document used to specify the status of Orders, Billing, and Payment. This document is a Statement of Account and not intended as a summary Invoice Statement

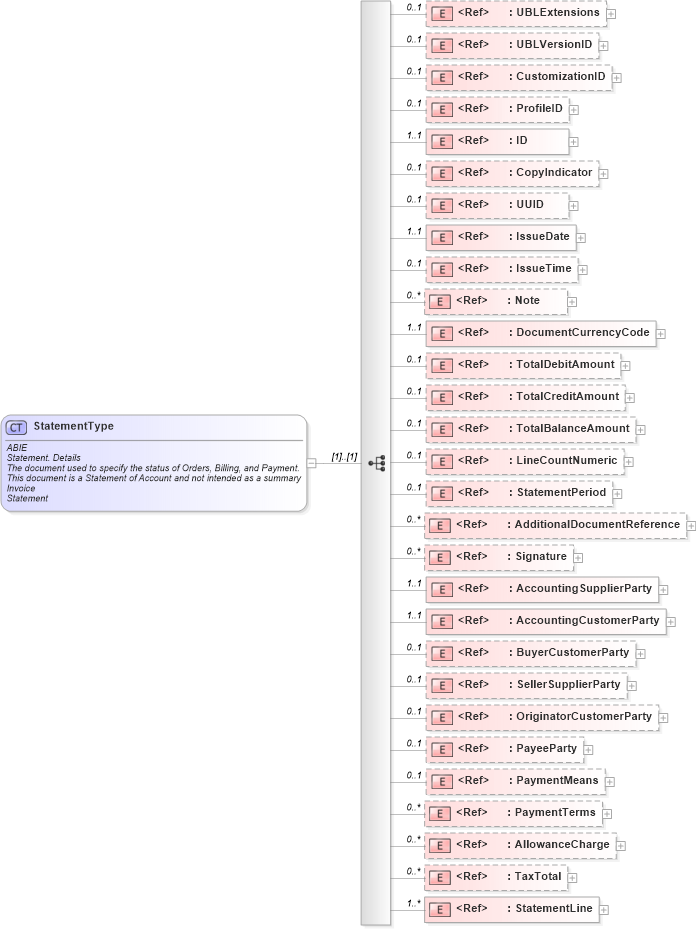

Collapse XSD Schema Diagram:
Drilldown into StatementLine in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into TaxTotal in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AllowanceCharge in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentTerms in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PaymentMeans in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into PayeeParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into OriginatorCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into SellerSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into BuyerCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingCustomerParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AccountingSupplierParty in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into Signature in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into AdditionalDocumentReference in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into StatementPeriod in schema ubl-commonaggregatecomponents-2_0_xsd Drilldown into LineCountNumeric in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TotalBalanceAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TotalCreditAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into TotalDebitAmount in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into DocumentCurrencyCode in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into Note in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueTime in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into IssueDate in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UUID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CopyIndicator in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into ProfileID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into CustomizationID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLVersionID in schema ubl-commonbasiccomponents-2_0_xsd Drilldown into UBLExtensions in schema ubl-commonextensioncomponents-2_0_xsdXSD Diagram of StatementType in schema ubl-statement-2_0_xsd (OASIS Universal Business Language (UBL) TC)
Collapse XSD Schema Code:
<xsd:complexType name="StatementType">
    <xsd:annotation>
        <xsd:documentation>
            <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                <ccts:ComponentType>ABIE</ccts:ComponentType>
                <ccts:DictionaryEntryName>Statement. Details</ccts:DictionaryEntryName>
                <ccts:Definition>The document used to specify the status of Orders, Billing, and Payment. This document is a Statement of Account and not intended as a summary Invoice</ccts:Definition>
                <ccts:ObjectClass>Statement</ccts:ObjectClass>
            </ccts:Component>
        </xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="ext:UBLExtensions" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>A container for all extensions present in the document.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:UBLVersionID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. UBL Version Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>The earliest version of the UBL 2 schema for this document type that defines all of the elements that might be encountered in the current instance.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>UBL Version Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>2.0.5</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CustomizationID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Customization Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies a user-defined customization of UBL for a specific use.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Customization Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>NES</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ProfileID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Profile Identifier. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>Identifies a user-defined profile of the customization of UBL being used.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Profile Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                        <ccts:Examples>BasicProcurementProcess</ccts:Examples>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:ID" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>An identifier for the Statement.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Identifier</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:CopyIndicator" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Copy_ Indicator. Indicator</ccts:DictionaryEntryName>
                        <ccts:Definition>Indicates whether the Statement is a copy (true) or not (false).</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Copy</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Indicator</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Indicator</ccts:RepresentationTerm>
                        <ccts:DataType>Indicator. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:UUID" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. UUID. Identifier</ccts:DictionaryEntryName>
                        <ccts:Definition>A universally unique identifier for an instance of this ABIE.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>UUID</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Identifier</ccts:RepresentationTerm>
                        <ccts:DataType>Identifier. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:IssueDate" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Issue Date. Date</ccts:DictionaryEntryName>
                        <ccts:Definition>The date assigned by the Creditor on which the Statement was issued.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issue Date</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Date</ccts:RepresentationTerm>
                        <ccts:DataType>Date. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:IssueTime" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Issue Time. Time</ccts:DictionaryEntryName>
                        <ccts:Definition>The time assigned by the Creditor at which the Statement was issued.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Issue Time</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Time</ccts:RepresentationTerm>
                        <ccts:DataType>Time. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:Note" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Note. Text</ccts:DictionaryEntryName>
                        <ccts:Definition>Free-form text applying to the Statement. This element may contain notes or any other similar information that is not contained explicitly in another structure.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Note</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Text</ccts:RepresentationTerm>
                        <ccts:DataType>Text. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:DocumentCurrencyCode" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Document_ Currency Code. Code</ccts:DictionaryEntryName>
                        <ccts:Definition>The default currency for the Statement.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Document</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Currency Code</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Code</ccts:RepresentationTerm>
                        <ccts:DataType>Currency_ Code. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TotalDebitAmount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Total_ Debit Amount. Amount</ccts:DictionaryEntryName>
                        <ccts:Definition>The total of all debit amounts for the Statement.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Total</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Debit Amount</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Amount</ccts:RepresentationTerm>
                        <ccts:DataType>Amount. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TotalCreditAmount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Total_ Credit Amount. Amount</ccts:DictionaryEntryName>
                        <ccts:Definition>The total of all credit amounts for the Statement.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Total</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Credit Amount</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Amount</ccts:RepresentationTerm>
                        <ccts:DataType>Amount. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:TotalBalanceAmount" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Total_ Balance Amount. Amount</ccts:DictionaryEntryName>
                        <ccts:Definition>The total amount for the Statement.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Total</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Balance Amount</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Amount</ccts:RepresentationTerm>
                        <ccts:DataType>Amount. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cbc:LineCountNumeric" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>BBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Line Count. Numeric</ccts:DictionaryEntryName>
                        <ccts:Definition>The number of lines in the document.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Line Count</ccts:PropertyTerm>
                        <ccts:RepresentationTerm>Numeric</ccts:RepresentationTerm>
                        <ccts:DataType>Numeric. Type</ccts:DataType>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:StatementPeriod" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Statement_ Period. Period</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to period(s) to which the Statement applies.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Statement</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Period</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Period</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:AdditionalDocumentReference" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Additional_ Document Reference. Document Reference</ccts:DictionaryEntryName>
                        <ccts:Definition>An associative reference to Additional Document.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Additional</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Document Reference</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Document Reference</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:Signature" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Signature</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Signature.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Signature</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Signature</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:AccountingSupplierParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Accounting_ Supplier Party. Supplier Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Accounting Supplier Party.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Accounting</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Supplier Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Supplier Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:AccountingCustomerParty" minOccurs="1" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Accounting_ Customer Party. Customer Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Accounting Customer Party.</ccts:Definition>
                        <ccts:Cardinality>1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Accounting</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Customer Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Customer Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:BuyerCustomerParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Buyer_ Customer Party. Customer Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Buyer.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Buyer</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Customer Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Customer Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:SellerSupplierParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Seller_ Supplier Party. Supplier Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Seller.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Seller</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Supplier Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Supplier Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:OriginatorCustomerParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Originator_ Customer Party. Customer Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Originator.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Originator</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Customer Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Customer Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:PayeeParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Payee_ Party. Party</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to the Payee.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTermQualifier>Payee</ccts:PropertyTermQualifier>
                        <ccts:PropertyTerm>Party</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Party</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:PaymentMeans" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Payment Means</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Payment Means.</ccts:Definition>
                        <ccts:Cardinality>0..1</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Payment Means</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Payment Means</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:PaymentTerms" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Payment Terms</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Payment Terms.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Payment Terms</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Payment Terms</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:AllowanceCharge" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Allowance Charge</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to Allowances and Charges that apply to the Statement period as a whole.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Allowance Charge</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Allowance Charge</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:TaxTotal" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Tax Total</ccts:DictionaryEntryName>
                        <ccts:Definition>An association with summary information for particular taxes.</ccts:Definition>
                        <ccts:Cardinality>0..n</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Tax Total</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Tax Total</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="cac:StatementLine" minOccurs="1" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>
                    <ccts:Component xmlns:ccts="urn:un:unece:uncefact:documentation:2">
                        <ccts:ComponentType>ASBIE</ccts:ComponentType>
                        <ccts:DictionaryEntryName>Statement. Statement Line</ccts:DictionaryEntryName>
                        <ccts:Definition>An association to one or more Statement Lines.</ccts:Definition>
                        <ccts:Cardinality>1..n</ccts:Cardinality>
                        <ccts:ObjectClass>Statement</ccts:ObjectClass>
                        <ccts:PropertyTerm>Statement Line</ccts:PropertyTerm>
                        <ccts:AssociatedObjectClass>Statement Line</ccts:AssociatedObjectClass>
                    </ccts:Component>
                </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
UBLExtensions ext:UBLExtensions 0 1
UBLVersionID cbc:UBLVersionID 0 1
CustomizationID cbc:CustomizationID 0 1
ProfileID cbc:ProfileID 0 1
ID cbc:ID 1 1
CopyIndicator cbc:CopyIndicator 0 1
UUID cbc:UUID 0 1
IssueDate cbc:IssueDate 1 1
IssueTime cbc:IssueTime 0 1
Note cbc:Note 0 unbounded
DocumentCurrencyCode cbc:DocumentCurrencyCode 1 1
TotalDebitAmount cbc:TotalDebitAmount 0 1
TotalCreditAmount cbc:TotalCreditAmount 0 1
TotalBalanceAmount cbc:TotalBalanceAmount 0 1
LineCountNumeric cbc:LineCountNumeric 0 1
StatementPeriod cac:StatementPeriod 0 1
AdditionalDocumentReference cac:AdditionalDocumentReference 0 unbounded
Signature cac:Signature 0 unbounded
AccountingSupplierParty cac:AccountingSupplierParty 1 1
AccountingCustomerParty cac:AccountingCustomerParty 1 1
BuyerCustomerParty cac:BuyerCustomerParty 0 1
SellerSupplierParty cac:SellerSupplierParty 0 1
OriginatorCustomerParty cac:OriginatorCustomerParty 0 1
PayeeParty cac:PayeeParty 0 1
PaymentMeans cac:PaymentMeans 0 1
PaymentTerms cac:PaymentTerms 0 unbounded
AllowanceCharge cac:AllowanceCharge 0 unbounded
TaxTotal cac:TaxTotal 0 unbounded
StatementLine cac:StatementLine 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsBC:Statement
Documentation for OASIS Universal Business Language (UBL) TC

Generated using Liquid Studio - Developer Bundle 21.0.0.0
