Documentation for Microsoft Office 2003 Reference Schemas
Definition Type: Element
Name: submit
Namespace: http://schemas.microsoft.com/office/infopath/2003/solutionDefinition
Containing Schema: sd.xsd
Abstract

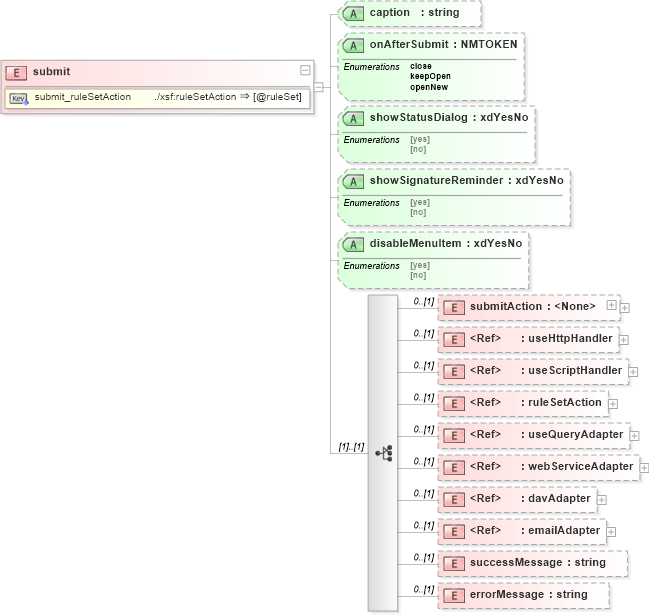

Collapse XSD Schema Diagram:
Drilldown into errorMessage in schema sd_xsd Drilldown into successMessage in schema sd_xsd Drilldown into emailAdapter in schema sd_xsd Drilldown into davAdapter in schema sd_xsd Drilldown into webServiceAdapter in schema sd_xsd Drilldown into useQueryAdapter in schema sd_xsd Drilldown into ruleSetAction in schema sd_xsd Drilldown into useScriptHandler in schema sd_xsd Drilldown into useHttpHandler in schema sd_xsd Drilldown into submitAction in schema sd_xsd Drilldown into disableMenuItem in schema sd_xsd Drilldown into showSignatureReminder in schema sd_xsd Drilldown into showStatusDialog in schema sd_xsd Drilldown into onAfterSubmit in schema sd_xsd Drilldown into caption in schema sd_xsdXSD Diagram of submit in schema sd_xsd (Microsoft Office 2003 Reference Schemas)
Collapse XSD Schema Code:
<xsd:element name="submit">
    <xsd:complexType>
        <xsd:all>
            <xsd:element name="submitAction" minOccurs="0">
                <xsd:complexType>
                    <xsd:attribute name="adapter" type="xsf:xdTitle" use="required" />
                </xsd:complexType>
                <xsd:keyref name="submitAdapter_name_keyref" refer="xsf:adapter_name_key">
                    <xsd:selector xpath="." />
                    <xsd:field xpath="@adapter" />
                </xsd:keyref>
            </xsd:element>
            <xsd:element ref="xsf:useHttpHandler" minOccurs="0" />
            <xsd:element ref="xsf:useScriptHandler" minOccurs="0" />
            <xsd:element ref="xsf:ruleSetAction" minOccurs="0" />
            <xsd:element ref="xsf:useQueryAdapter" minOccurs="0" />
            <xsd:element ref="xsf:webServiceAdapter" minOccurs="0" />
            <xsd:element ref="xsf:davAdapter" minOccurs="0" />
            <xsd:element ref="xsf:emailAdapter" minOccurs="0" />
            <xsd:element name="successMessage" type="xsd:string" minOccurs="0" />
            <xsd:element name="errorMessage" type="xsd:string" minOccurs="0" />
        </xsd:all>
        <xsd:attribute name="caption" type="xsd:string" use="optional" />
        <xsd:attribute name="onAfterSubmit" use="optional">
            <xsd:simpleType>
                <xsd:restriction base="xsd:NMTOKEN">
                    <xsd:enumeration value="close" />
                    <xsd:enumeration value="keepOpen" />
                    <xsd:enumeration value="openNew" />
                </xsd:restriction>
            </xsd:simpleType>
        </xsd:attribute>
        <xsd:attribute name="showStatusDialog" type="xsf:xdYesNo" use="optional" />
        <xsd:attribute name="showSignatureReminder" type="xsf:xdYesNo" use="optional" />
        <xsd:attribute name="disableMenuItem" type="xsf:xdYesNo" use="optional" />
    </xsd:complexType>
    <xsd:keyref name="submit_ruleSetAction" refer="xsf:ruleset_name_key">
        <xsd:selector xpath="./xsf:ruleSetAction" />
        <xsd:field xpath="@ruleSet" />
    </xsd:keyref>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
submitAction xsf:submitAction 0 (1)
useHttpHandler xsf:useHttpHandler 0 (1)
useScriptHandler xsf:useScriptHandler 0 (1)
ruleSetAction xsf:ruleSetAction 0 (1)
useQueryAdapter xsf:useQueryAdapter 0 (1)
webServiceAdapter xsf:webServiceAdapter 0 (1)
davAdapter xsf:davAdapter 0 (1)
emailAdapter xsf:emailAdapter 0 (1)
successMessage xsf:successMessage 0 (1)
errorMessage xsf:errorMessage 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
caption xsf:caption Optional
onAfterSubmit xsf:onAfterSubmit Optional
showStatusDialog xsf:showStatusDialog Optional
showSignatureReminder xsf:showSignatureReminder Optional
disableMenuItem xsf:disableMenuItem Optional
