Documentation for Open Travel (OTA)
Definition Type: Element
Name: AddressDetail
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:Address_Detail
Containing Schema: Common_4_0_0.xsd
Abstract

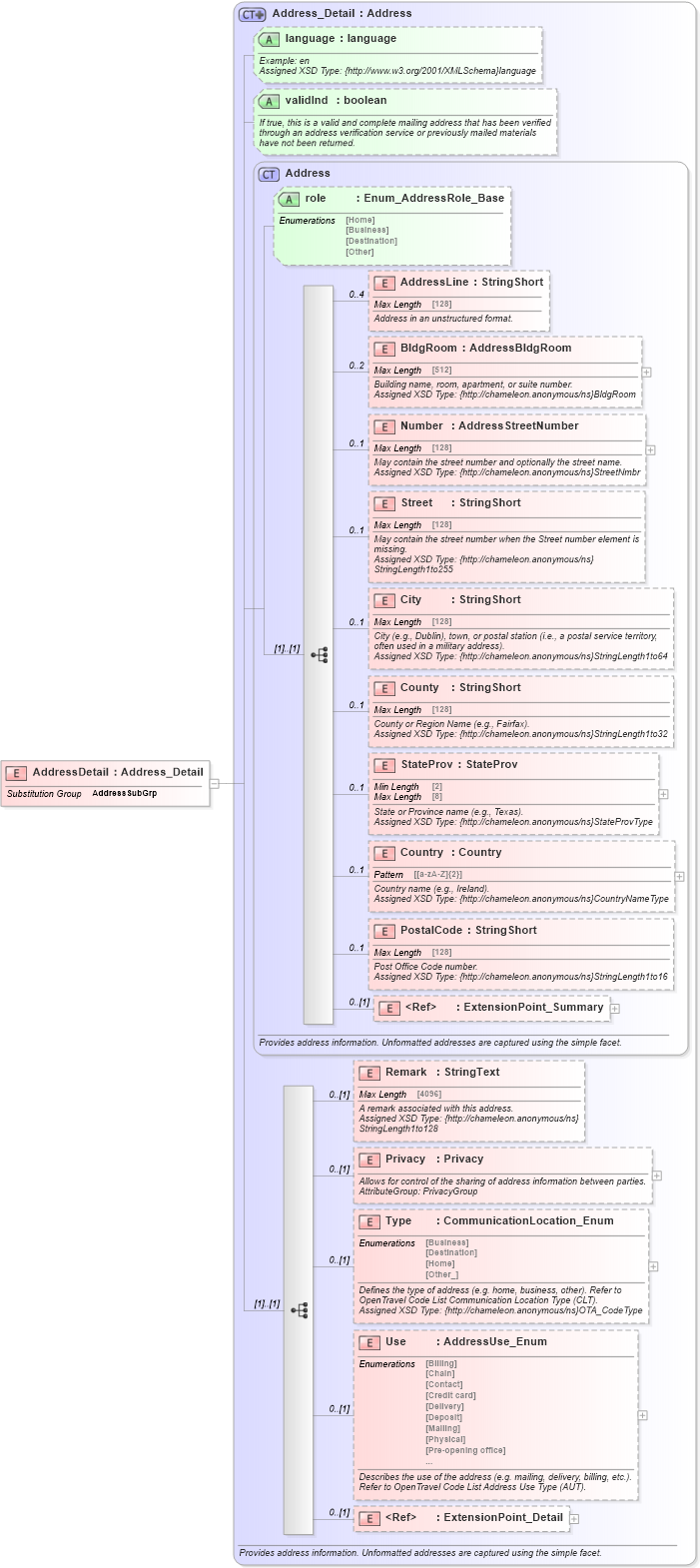

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Detail in schema otm_builtins_xsd Drilldown into Use in schema common_4_0_0_xsd Drilldown into Type in schema common_4_0_0_xsd Drilldown into Privacy in schema common_4_0_0_xsd Drilldown into Remark in schema common_4_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into PostalCode in schema common_4_0_0_xsd Drilldown into Country in schema common_4_0_0_xsd Drilldown into StateProv in schema common_4_0_0_xsd Drilldown into County in schema common_4_0_0_xsd Drilldown into City in schema common_4_0_0_xsd Drilldown into Street in schema common_4_0_0_xsd Drilldown into Number in schema common_4_0_0_xsd Drilldown into BldgRoom in schema common_4_0_0_xsd Drilldown into AddressLine in schema common_4_0_0_xsd Drilldown into role in schema common_4_0_0_xsd Drilldown into Address in schema common_4_0_0_xsd Drilldown into validInd in schema common_4_0_0_xsd Drilldown into language in schema common_4_0_0_xsd Drilldown into Address_Detail in schema common_4_0_0_xsdXSD Diagram of AddressDetail in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="AddressDetail" substitutionGroup="ota2-0400:AddressSubGrp" type="ota2-0400:Address_Detail" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
AddressLine ota2-0400:AddressLine 0 4
BldgRoom ota2-0400:BldgRoom 0 2
Number ota2-0400:Number 0 1
Street ota2-0400:Street 0 1
City ota2-0400:City 0 1
County ota2-0400:County 0 1
StateProv ota2-0400:StateProv 0 1
Country ota2-0400:Country 0 1
PostalCode ota2-0400:PostalCode 0 1
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Remark ota2-0400:Remark 0 (1)
Privacy ota2-0400:Privacy 0 (1)
Type ota2-0400:Type 0 (1)
Use ota2-0400:Use 0 (1)
ExtensionPoint_Detail ota2:ExtensionPoint_Detail 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
role ota2-0400:role (Optional)
language ota2-0400:language Optional
validInd ota2-0400:validInd Optional
Collapse Derivation Tree:
Collapse References:
ota2-0400:AddressSubGrp
