Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Amount
Namespace: http://www.opentravel.org/OTM/Common/v4
Containing Schema: Common_4_0_0.xsd
Abstract
Documentation:
Price of an item and information on how this price was calculated, for example, a daily rate multiplied by the number of players, a percentage, etc.

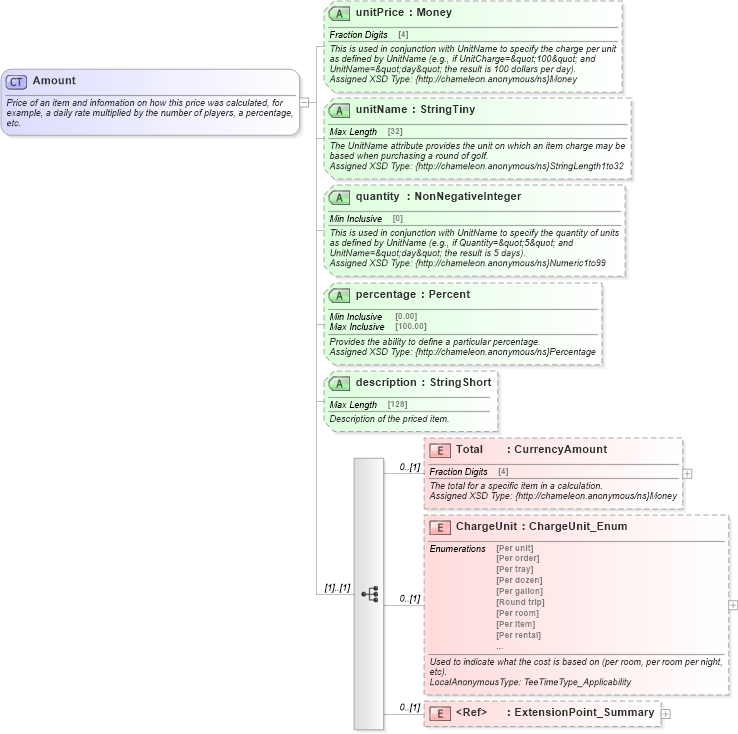

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into ChargeUnit in schema common_4_0_0_xsd Drilldown into Total in schema common_4_0_0_xsd Drilldown into description in schema common_4_0_0_xsd Drilldown into percentage in schema common_4_0_0_xsd Drilldown into quantity in schema common_4_0_0_xsd Drilldown into unitName in schema common_4_0_0_xsd Drilldown into unitPrice in schema common_4_0_0_xsdXSD Diagram of Amount in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Amount">
    <xsd:annotation>
        <xsd:documentation source="Description">Price of an item and information on how this price was calculated, for example, a daily rate multiplied by the number of players, a percentage, etc.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="CoreObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Amount</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element minOccurs="0" name="Total" type="ota2-0400:CurrencyAmount">
            <xsd:annotation>
                <xsd:documentation source="Description">The total for a specific item in a calculation.</xsd:documentation>
                <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}Money</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" name="ChargeUnit" type="ota2-0300:ChargeUnit_Enum">
            <xsd:annotation>
                <xsd:documentation source="Description">Used to indicate what the cost is based on (per room, per room per night, etc).</xsd:documentation>
                <xsd:documentation source="Implementer">LocalAnonymousType: TeeTimeType_Applicability</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Summary" />
    </xsd:sequence>
    <xsd:attribute name="unitPrice" type="ota2-0400:Money" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">This is used in conjunction with UnitName to specify the charge per unit as defined by UnitName (e.g., if UnitCharge=&amp;quot;100&amp;quot; and UnitName=&amp;quot;day&amp;quot; the result is 100 dollars per day).</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}Money</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="unitName" type="ota2-0400:StringTiny" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">The UnitName attribute provides the unit on which an item charge may be based when purchasing a round of golf.</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}StringLength1to32</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="quantity" type="ota2-0400:NonNegativeInteger" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">This is used in conjunction with UnitName to specify the quantity of units as defined by UnitName (e.g., if Quantity=&amp;quot;5&amp;quot; and UnitName=&amp;quot;day&amp;quot; the result is 5 days).</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}Numeric1to99</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="percentage" type="ota2-0400:Percent" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">Provides the ability to define a particular percentage.</xsd:documentation>
            <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}Percentage</xsd:documentation>
            <xsd:appinfo>
                <otm:Example context="Common" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">10</otm:Example>
            </xsd:appinfo>
        </xsd:annotation>
    </xsd:attribute>
    <xsd:attribute name="description" type="ota2-0400:StringShort" use="optional">
        <xsd:annotation>
            <xsd:documentation source="Description">Description of the priced item.</xsd:documentation>
        </xsd:annotation>
    </xsd:attribute>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Total ota2-0400:Total 0 (1)
ChargeUnit ota2-0400:ChargeUnit 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
unitPrice ota2-0400:unitPrice Optional
unitName ota2-0400:unitName Optional
quantity ota2-0400:quantity Optional
percentage ota2-0400:percentage Optional
description ota2-0400:description Optional
Collapse Derivation Tree:
Collapse References:
ota2-0400:Amount, ota2-0400:Amount_Detail, ota2-0400:AmountSubGrp, ota2-0400:AmountSummary, ota2-0400:Price, ota2-0400:PriceSubGrp, ota2-0400:PriceSummary
