Documentation for Open Travel (OTA)
Definition Type: Element
Name: FormOfPaymentTicket
Namespace: http://www.opentravel.org/OTM/finance/v3
Type: fin-0300:FormOfPayment_Ticket
Containing Schema: Finance_3_0_0.xsd
Abstract

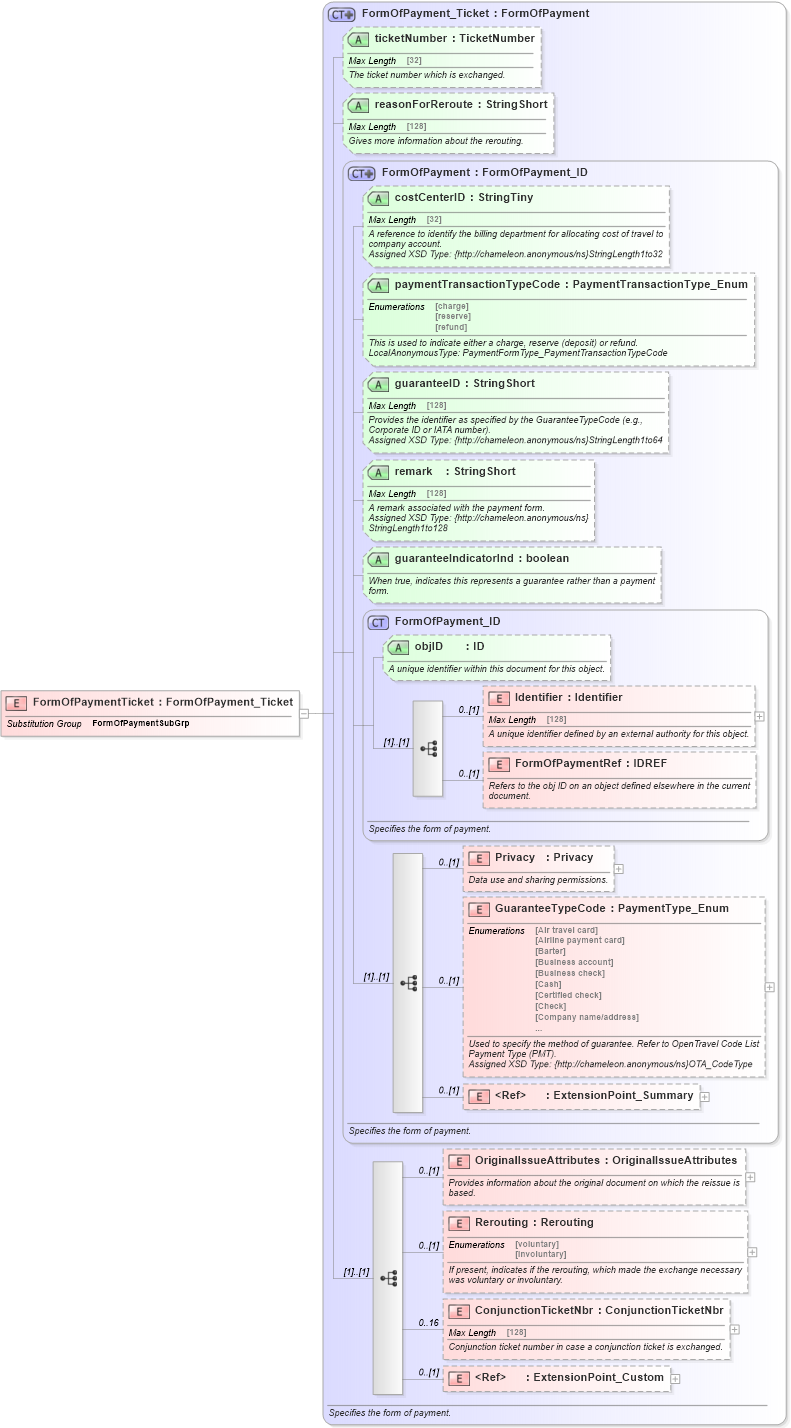

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Custom in schema otm_builtins_xsd Drilldown into ConjunctionTicketNbr in schema finance_3_0_0_xsd Drilldown into Rerouting in schema finance_3_0_0_xsd Drilldown into OriginalIssueAttributes in schema finance_3_0_0_xsd Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into GuaranteeTypeCode in schema finance_3_0_0_xsd Drilldown into Privacy in schema finance_3_0_0_xsd Drilldown into FormOfPaymentRef in schema finance_3_0_0_xsd Drilldown into Identifier in schema finance_3_0_0_xsd Drilldown into objID in schema finance_3_0_0_xsd Drilldown into FormOfPayment_ID in schema finance_3_0_0_xsd Drilldown into guaranteeIndicatorInd in schema finance_3_0_0_xsd Drilldown into remark in schema finance_3_0_0_xsd Drilldown into guaranteeID in schema finance_3_0_0_xsd Drilldown into paymentTransactionTypeCode in schema finance_3_0_0_xsd Drilldown into costCenterID in schema finance_3_0_0_xsd Drilldown into FormOfPayment in schema finance_3_0_0_xsd Drilldown into reasonForReroute in schema finance_3_0_0_xsd Drilldown into ticketNumber in schema finance_3_0_0_xsd Drilldown into FormOfPayment_Ticket in schema finance_3_0_0_xsdXSD Diagram of FormOfPaymentTicket in schema finance_3_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="FormOfPaymentTicket" substitutionGroup="fin-0300:FormOfPaymentSubGrp" type="fin-0300:FormOfPayment_Ticket" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier fin-0300:Identifier 0 (1)
FormOfPaymentRef fin-0300:FormOfPaymentRef 0 (1)
Privacy fin-0300:Privacy 0 (1)
GuaranteeTypeCode fin-0300:GuaranteeTypeCode 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
OriginalIssueAttributes fin-0300:OriginalIssueAttributes 0 (1)
Rerouting fin-0300:Rerouting 0 (1)
ConjunctionTicketNbr fin-0300:ConjunctionTicketNbr 0 16
ExtensionPoint_Custom ota2:ExtensionPoint_Custom 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID fin-0300:objID Optional
costCenterID fin-0300:costCenterID Optional
paymentTransactionTypeCode fin-0300:paymentTransactionTypeCode Optional
guaranteeID fin-0300:guaranteeID Optional
remark fin-0300:remark Optional
guaranteeIndicatorInd fin-0300:guaranteeIndicatorInd Optional
ticketNumber fin-0300:ticketNumber Optional
reasonForReroute fin-0300:reasonForReroute Optional
Collapse Derivation Tree:
Collapse References:
fin-0300:FormOfPaymentSubGrp
