Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: RoomStay
Namespace: http://www.opentravel.org/OTM/product/hospitality/v1
Type: ph:RoomStay_ID
Containing Schema: Hospitality_1_0_0.xsd
Abstract
Documentation:
Details on the Room Stay including Guest Counts, Time Span of this Room Stay, pointers to Res Guests, guest Memberships, Comments and Special Requests pertaining to this particular Room Stay and finally finacial information related to the Room Stay, including Guarantee, Deposit and Payment and Cancellation Penalties.

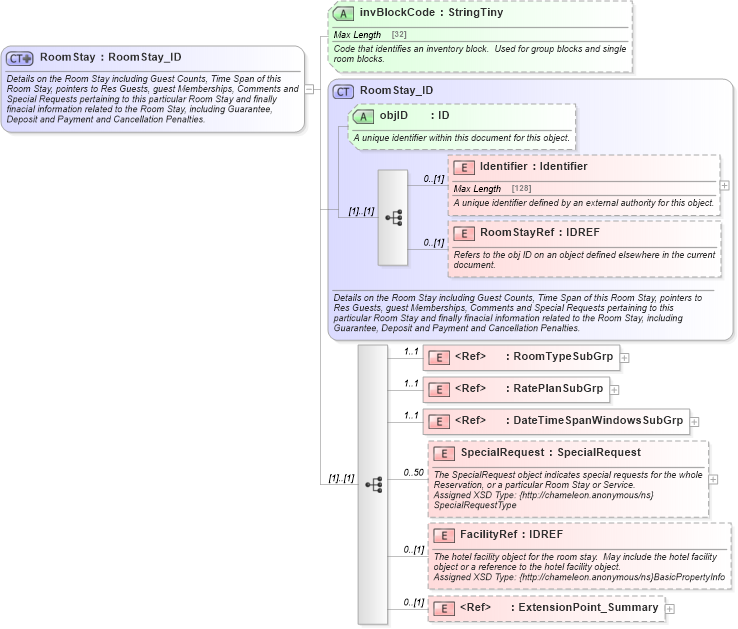

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint_Summary in schema otm_builtins_xsd Drilldown into FacilityRef in schema hospitality_1_0_0_xsd Drilldown into SpecialRequest in schema hospitality_1_0_0_xsd Drilldown into DateTimeSpanWindowsSubGrp in schema common_4_0_0_xsd Drilldown into RatePlanSubGrp in schema hospitality_1_0_0_xsd Drilldown into RoomTypeSubGrp in schema hospitality_1_0_0_xsd Drilldown into RoomStayRef in schema hospitality_1_0_0_xsd Drilldown into Identifier in schema hospitality_1_0_0_xsd Drilldown into objID in schema hospitality_1_0_0_xsd Drilldown into RoomStay_ID in schema hospitality_1_0_0_xsd Drilldown into invBlockCode in schema hospitality_1_0_0_xsdXSD Diagram of RoomStay in schema hospitality_1_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="RoomStay">
    <xsd:annotation>
        <xsd:documentation source="Description">Details on the Room Stay including Guest Counts, Time Span of this Room Stay, pointers to Res Guests, guest Memberships, Comments and Special Requests pertaining to this particular Room Stay and finally finacial information related to the Room Stay, including Guarantee, Deposit and Payment and Cancellation Penalties.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="BusinessObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">RoomStay</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="ph:RoomStay_ID">
            <xsd:sequence>
                <xsd:element maxOccurs="1" minOccurs="1" ref="ph:RoomTypeSubGrp">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The RoomType element is used to contain all the room type information.</xsd:documentation>
                        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}RoomTypes</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="1" ref="ph:RatePlanSubGrp">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The rate plan element is used to contain all the rate plan information for a single Rate Plan Code (ex RACK).  The rate plan contains everything included with the room stay outside of the room.</xsd:documentation>
                        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}RatePlans</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="1" minOccurs="1" ref="ota2-0400:DateTimeSpanWindowsSubGrp">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The Time Span encompassing the start and end date for which this room stay product exists.</xsd:documentation>
                        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}DateTimeSpanType</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element maxOccurs="50" minOccurs="0" name="SpecialRequest" type="ph:SpecialRequest">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The SpecialRequest object indicates special requests for the whole Reservation, or a particular Room Stay or Service.</xsd:documentation>
                        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}SpecialRequestType</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="FacilityRef" type="xsd:IDREF">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The hotel facility object for the room stay.  May include the hotel facility object or a reference to the hotel facility object.</xsd:documentation>
                        <xsd:documentation source="Implementer">Assigned XSD Type: {http://chameleon.anonymous/ns}BasicPropertyInfo</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint_Summary" />
            </xsd:sequence>
            <xsd:attribute name="invBlockCode" type="ota2-0400:StringTiny" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Code that identifies an inventory block.  Used for group blocks and single room blocks.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Example context="ph" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">xyzzy</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier ph:Identifier 0 (1)
RoomStayRef ph:RoomStayRef 0 (1)
RoomTypeSubGrp ph:RoomTypeSubGrp 1 1
RatePlanSubGrp ph:RatePlanSubGrp 1 1
DateTimeSpanWindowsSubGrp ota2-0400:DateTimeSpanWindowsSubGrp 1 1
SpecialRequest ph:SpecialRequest 0 50
FacilityRef ph:FacilityRef 0 (1)
ExtensionPoint_Summary ota2:ExtensionPoint_Summary 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID ph:objID Optional
invBlockCode ph:invBlockCode Optional
Collapse Derivation Tree:
Collapse References:
ph:RoomStay, ph:RoomStay_Detail, ph:RoomStaySummary
