Documentation for Open Travel (OTA)
Definition Type: ComplexType
Name: Transport_Transfer
Namespace: http://www.opentravel.org/OTM/product/Ground/v2
Type: prod-0400:Transport
Containing Schema: Ground_2_0_0.xsd
Abstract
Documentation:
Details of a method of transport. Choice facets for Air & Rail to be defined.

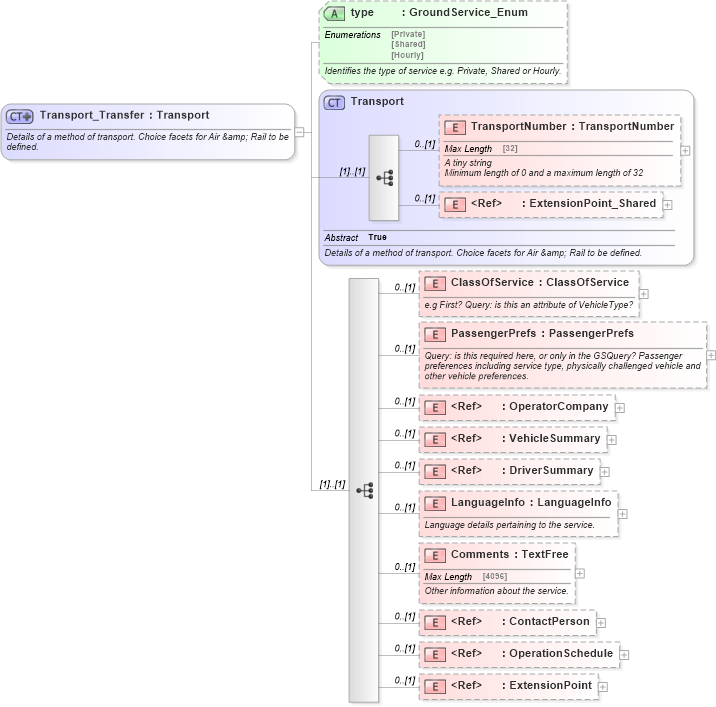

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into OperationSchedule in schema common_4_0_0_xsd Drilldown into ContactPerson in schema common_4_0_0_xsd Drilldown into Comments in schema ground_2_0_0_xsd Drilldown into LanguageInfo in schema ground_2_0_0_xsd Drilldown into DriverSummary in schema ground_2_0_0_xsd Drilldown into VehicleSummary in schema ground_2_0_0_xsd Drilldown into OperatorCompany in schema ground_2_0_0_xsd Drilldown into PassengerPrefs in schema ground_2_0_0_xsd Drilldown into ClassOfService in schema ground_2_0_0_xsd Drilldown into ExtensionPoint_Shared in schema otm_builtins_xsd Drilldown into TransportNumber in schema product_4_0_0_xsd Drilldown into Transport in schema product_4_0_0_xsd Drilldown into type in schema ground_2_0_0_xsdXSD Diagram of Transport_Transfer in schema ground_2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:complexType name="Transport_Transfer">
    <xsd:annotation>
        <xsd:documentation source="Description">Details of a method of transport. Choice facets for Air &amp;amp; Rail to be defined.</xsd:documentation>
        <xsd:appinfo>
            <otm:OTA2Entity type="ChoiceObject" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Transport</otm:OTA2Entity>
        </xsd:appinfo>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="prod-0400:Transport">
            <xsd:sequence>
                <xsd:element minOccurs="0" name="ClassOfService" type="prod-0400:ClassOfService">
                    <xsd:annotation>
                        <xsd:documentation source="Description">e.g First? Query: is this an attribute of VehicleType?</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="PassengerPrefs" type="pgt-0200:PassengerPrefs">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Query: is this required here, or only in the GSQuery? Passenger preferences including service type, physically challenged vehicle and other vehicle preferences.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="pgt-0200:OperatorCompany">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The company operating a ground service.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="pgt-0200:VehicleSummary">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Defines a specific vehicle (make, model, seats etc.)</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="pgt-0200:DriverSummary">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Driver information.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="LanguageInfo" type="pgt-0200:LanguageInfo">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Language details pertaining to the service.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" name="Comments" type="ota2-0400:TextFree">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Other information about the service.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2-0400:ContactPerson">
                    <xsd:annotation>
                        <xsd:documentation source="Description">Operator contact details. Query: is the level of detail overkill here?</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2-0400:OperationSchedule">
                    <xsd:annotation>
                        <xsd:documentation source="Description">The OperationSchedule class defines the dates and hours of operation.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element minOccurs="0" ref="ota2:ExtensionPoint" />
            </xsd:sequence>
            <xsd:attribute name="type" type="pgt-0200:GroundService_Enum" use="optional">
                <xsd:annotation>
                    <xsd:documentation source="Description">Identifies the type of service e.g. Private, Shared or Hourly.</xsd:documentation>
                    <xsd:appinfo>
                        <otm:Equivalent context="pgt" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00" />
                        <otm:Example context="pgt" xmlns:otm="http://www.OpenTravel.org/ns/OTA2/AppInfo_v01_00">Private</otm:Example>
                    </xsd:appinfo>
                </xsd:annotation>
            </xsd:attribute>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportNumber prod-0400:TransportNumber 0 (1)
ExtensionPoint_Shared ota2:ExtensionPoint_Shared 0 (1)
ClassOfService pgt-0200:ClassOfService 0 (1)
PassengerPrefs pgt-0200:PassengerPrefs 0 (1)
OperatorCompany pgt-0200:OperatorCompany 0 (1)
VehicleSummary pgt-0200:VehicleSummary 0 (1)
DriverSummary pgt-0200:DriverSummary 0 (1)
LanguageInfo pgt-0200:LanguageInfo 0 (1)
Comments pgt-0200:Comments 0 (1)
ContactPerson ota2-0400:ContactPerson 0 (1)
OperationSchedule ota2-0400:OperationSchedule 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type pgt-0200:type Optional
Collapse Derivation Tree:
Collapse References:
pgt-0200:TransportTransfer
