Documentation for Open Travel (OTA)
Definition Type: Element
Name: TransportTransfer
Namespace: http://www.opentravel.org/OTM/product/Ground/v2
Type: pgt-0200:Transport_Transfer
Containing Schema: Ground_2_0_0.xsd
Abstract

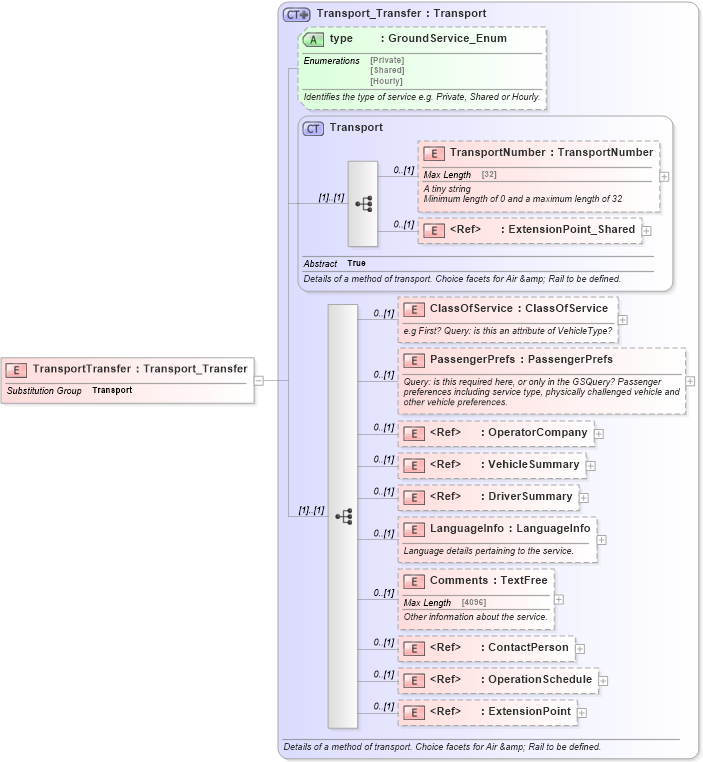

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into OperationSchedule in schema common_4_0_0_xsd Drilldown into ContactPerson in schema common_4_0_0_xsd Drilldown into Comments in schema ground_2_0_0_xsd Drilldown into LanguageInfo in schema ground_2_0_0_xsd Drilldown into DriverSummary in schema ground_2_0_0_xsd Drilldown into VehicleSummary in schema ground_2_0_0_xsd Drilldown into OperatorCompany in schema ground_2_0_0_xsd Drilldown into PassengerPrefs in schema ground_2_0_0_xsd Drilldown into ClassOfService in schema ground_2_0_0_xsd Drilldown into ExtensionPoint_Shared in schema otm_builtins_xsd Drilldown into TransportNumber in schema product_4_0_0_xsd Drilldown into Transport in schema product_4_0_0_xsd Drilldown into type in schema ground_2_0_0_xsd Drilldown into Transport_Transfer in schema ground_2_0_0_xsdXSD Diagram of TransportTransfer in schema ground_2_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="TransportTransfer" substitutionGroup="prod-0400:Transport" type="pgt-0200:Transport_Transfer" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
TransportNumber prod-0400:TransportNumber 0 (1)
ExtensionPoint_Shared ota2:ExtensionPoint_Shared 0 (1)
ClassOfService pgt-0200:ClassOfService 0 (1)
PassengerPrefs pgt-0200:PassengerPrefs 0 (1)
OperatorCompany pgt-0200:OperatorCompany 0 (1)
VehicleSummary pgt-0200:VehicleSummary 0 (1)
DriverSummary pgt-0200:DriverSummary 0 (1)
LanguageInfo pgt-0200:LanguageInfo 0 (1)
Comments pgt-0200:Comments 0 (1)
ContactPerson ota2-0400:ContactPerson 0 (1)
OperationSchedule ota2-0400:OperationSchedule 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
type pgt-0200:type Optional
Collapse Derivation Tree:
Collapse References:
prod-0400:Transport
