Documentation for Open Travel (OTA)
Definition Type: Element
Name: Transportation
Namespace: http://www.opentravel.org/OTM/Common/v4
Type: ota2-0400:Transportation
Containing Schema: Common_4_0_0.xsd
Abstract

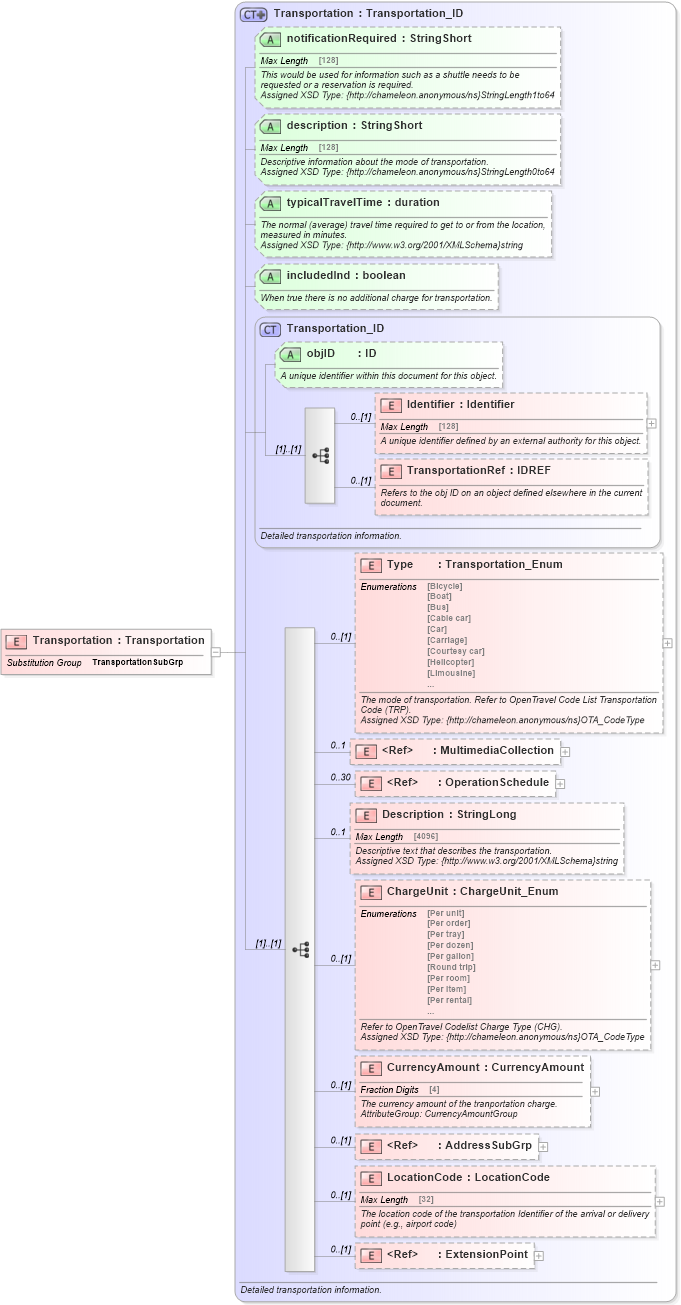

Collapse XSD Schema Diagram:
Drilldown into ExtensionPoint in schema otm_builtins_xsd Drilldown into LocationCode in schema common_4_0_0_xsd Drilldown into AddressSubGrp in schema common_4_0_0_xsd Drilldown into CurrencyAmount in schema common_4_0_0_xsd Drilldown into ChargeUnit in schema common_4_0_0_xsd Drilldown into Description in schema common_4_0_0_xsd Drilldown into OperationSchedule in schema common_4_0_0_xsd Drilldown into MultimediaCollection in schema common_4_0_0_xsd Drilldown into Type in schema common_4_0_0_xsd Drilldown into TransportationRef in schema common_4_0_0_xsd Drilldown into Identifier in schema common_4_0_0_xsd Drilldown into objID in schema common_4_0_0_xsd Drilldown into Transportation_ID in schema common_4_0_0_xsd Drilldown into includedInd in schema common_4_0_0_xsd Drilldown into typicalTravelTime in schema common_4_0_0_xsd Drilldown into description in schema common_4_0_0_xsd Drilldown into notificationRequired in schema common_4_0_0_xsd Drilldown into Transportation in schema common_4_0_0_xsdXSD Diagram of Transportation in schema common_4_0_0_xsd (Open Travel (OTA))
Collapse XSD Schema Code:
<xsd:element name="Transportation" substitutionGroup="ota2-0400:TransportationSubGrp" type="ota2-0400:Transportation" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Identifier ota2-0400:Identifier 0 (1)
TransportationRef ota2-0400:TransportationRef 0 (1)
Type ota2-0400:Type 0 (1)
MultimediaCollection ota2-0400:MultimediaCollection 0 1
OperationSchedule ota2-0400:OperationSchedule 0 30
Description ota2-0400:Description 0 1
ChargeUnit ota2-0400:ChargeUnit 0 (1)
CurrencyAmount ota2-0400:CurrencyAmount 0 (1)
AddressSubGrp ota2-0400:AddressSubGrp 0 (1)
LocationCode ota2-0400:LocationCode 0 (1)
ExtensionPoint ota2:ExtensionPoint 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
objID ota2-0400:objID Optional
notificationRequired ota2-0400:notificationRequired Optional
description ota2-0400:description Optional
typicalTravelTime ota2-0400:typicalTravelTime Optional
includedInd ota2-0400:includedInd Optional
Collapse Derivation Tree:
Collapse References:
ota2-0400:TransportationSubGrp
