Documentation for Standards for Technology in Automotive Retail
Definition Type: Group
Name: InventoryTransactionGroup
Namespace: http://www.openapplications.org/oagis/9
Containing Schema: Components.xsd

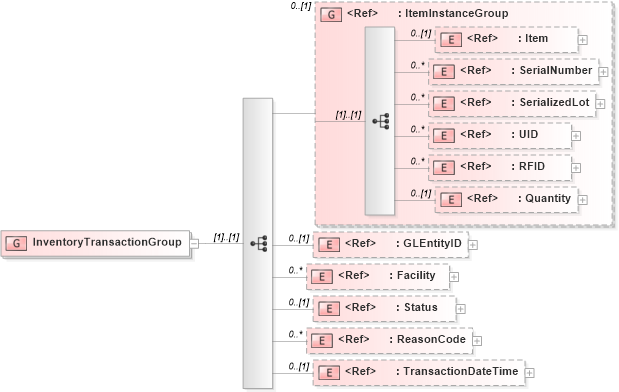

Collapse XSD Schema Diagram:
Drilldown into TransactionDateTime in schema fields_xsd1 Drilldown into ReasonCode in schema fields_xsd1 Drilldown into Status in schema components_xsd1 Drilldown into Facility in schema components_xsd1 Drilldown into GLEntityID in schema fields_xsd1 Drilldown into Quantity in schema fields_xsd1 Drilldown into RFID in schema fields_xsd1 Drilldown into UID in schema fields_xsd1 Drilldown into SerializedLot in schema components_xsd1 Drilldown into SerialNumber in schema fields_xsd1 Drilldown into Item in schema components_xsd1 Drilldown into ItemInstanceGroup in schema components_xsd1XSD Diagram of InventoryTransactionGroup in schema components_xsd1 (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:group name="InventoryTransactionGroup">
    <xsd:sequence>
        <xsd:group minOccurs="0" ref="ItemInstanceGroup" />
        <xsd:element minOccurs="0" ref="GLEntityID">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">
                  Idenitifies GLEntity owns the item and takes the credit or debit for the item on
                  the balance sheet.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="Facility" />
        <xsd:element minOccurs="0" ref="Status">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">
                  This determines the receipt routing of an item or part.

                  Examples of values include: Customer consignment, Inspection, Vendor consignment,
                  Blocked Bonded, User defined

                  Possible synonyms are Receipt Routing, Material Status, Material Condition Code
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element maxOccurs="unbounded" minOccurs="0" ref="ReasonCode">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">
                  Identifies the reason for the transaction.
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element minOccurs="0" ref="TransactionDateTime">
            <xsd:annotation>
                <xsd:documentation source="http://www.openapplications.org/oagis/9">
                  Identifies the DateTime at which the inventory transaction was carried out
               </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:group>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Item oagis:Item 0 (1)
SerialNumber oagis:SerialNumber 0 unbounded
SerializedLot oagis:SerializedLot 0 unbounded
UID oagis:UID 0 unbounded
RFID oagis:RFID 0 unbounded
Quantity oagis:Quantity 0 (1)
GLEntityID oagis:GLEntityID 0 (1)
Facility oagis:Facility 0 unbounded
Status oagis:Status 0 (1)
ReasonCode oagis:ReasonCode 0 unbounded
TransactionDateTime oagis:TransactionDateTime 0 (1)
<xs:group> oagis:ItemInstanceGroup 0 (1)
