Definition Type: Element
Name: Job
Namespace: http://www.starstandard.org/STAR/5
Type: star:JobHistoryType
Containing Schema: VehicleServiceHistory.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Deprecated: Use JobHistory. This field is deprecated to align with the STAR 5 naming and design rules. It will be removed in the next major version of STAR.

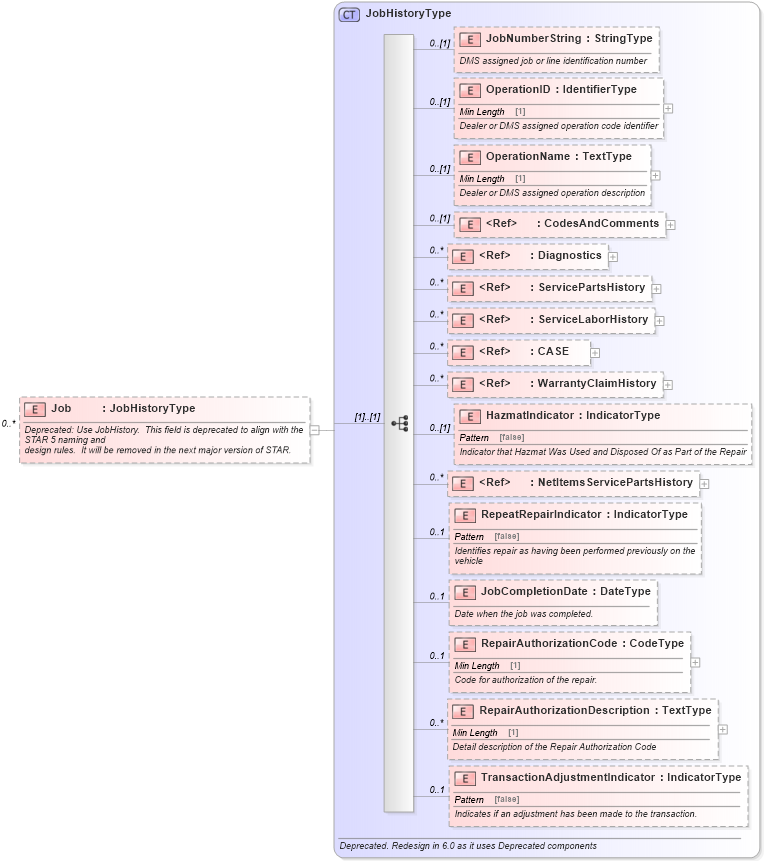

Collapse XSD Schema Diagram:
Drilldown into TransactionAdjustmentIndicator in schema deprecatedcomponents_xsd Drilldown into RepairAuthorizationDescription in schema deprecatedcomponents_xsd Drilldown into RepairAuthorizationCode in schema deprecatedcomponents_xsd Drilldown into JobCompletionDate in schema deprecatedcomponents_xsd Drilldown into RepeatRepairIndicator in schema deprecatedcomponents_xsd Drilldown into NetItemsServicePartsHistory in schema deprecatedcomponents_xsd Drilldown into HazmatIndicator in schema deprecatedcomponents_xsd Drilldown into WarrantyClaimHistory in schema components_xsd Drilldown into CASE in schema components_xsd Drilldown into ServiceLaborHistory in schema components_xsd Drilldown into ServicePartsHistory in schema deprecatedcomponents_xsd Drilldown into Diagnostics in schema components_xsd Drilldown into CodesAndComments in schema components_xsd Drilldown into OperationName in schema deprecatedcomponents_xsd Drilldown into OperationID in schema deprecatedcomponents_xsd Drilldown into JobNumberString in schema deprecatedcomponents_xsd Drilldown into JobHistoryType in schema deprecatedcomponents_xsdXSD Diagram of Job in schema vehicleservicehistory_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="Job" type="JobHistoryType" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>
                        Deprecated: Use JobHistory.  This field is deprecated to align with the STAR 5 naming and
                        design rules.  It will be removed in the next major version of STAR.
                    </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
JobNumberString star:JobNumberString 0 (1)
OperationID star:OperationID 0 (1)
OperationName star:OperationName 0 (1)
CodesAndComments star:CodesAndComments 0 (1)
Diagnostics star:Diagnostics 0 unbounded
ServicePartsHistory star:ServicePartsHistory 0 unbounded
ServiceLaborHistory star:ServiceLaborHistory 0 unbounded
CASE star:CASE 0 unbounded
WarrantyClaimHistory star:WarrantyClaimHistory 0 unbounded
HazmatIndicator star:HazmatIndicator 0 (1)
NetItemsServicePartsHistory star:NetItemsServicePartsHistory 0 unbounded
RepeatRepairIndicator star:RepeatRepairIndicator 0 1
JobCompletionDate star:JobCompletionDate 0 1
RepairAuthorizationCode star:RepairAuthorizationCode 0 1
RepairAuthorizationDescription star:RepairAuthorizationDescription 0 unbounded
TransactionAdjustmentIndicator star:TransactionAdjustmentIndicator 0 1
Collapse Derivation Tree:
