Definition Type: Element
Name: PartMasterLine
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartMasterLineType
Containing Schema: PartsMaster.xsd
Abstract
Documentation:
Part Master Line

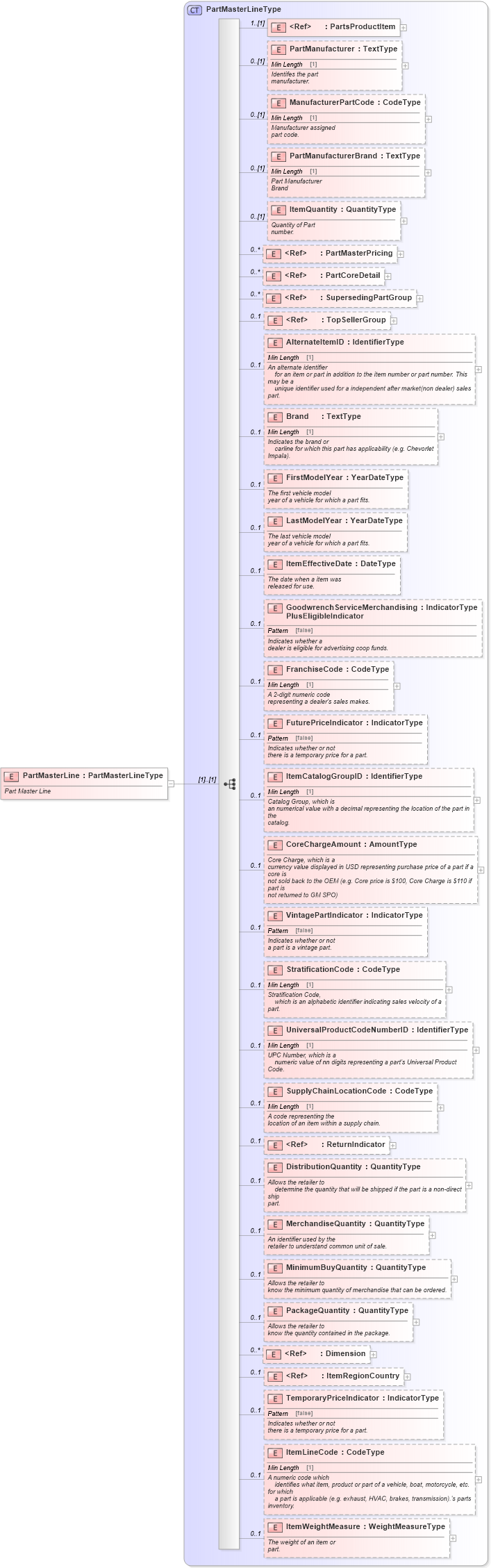

Collapse XSD Schema Diagram:
Drilldown into ItemWeightMeasure in schema partsmaster_xsd Drilldown into ItemLineCode in schema partsmaster_xsd Drilldown into TemporaryPriceIndicator in schema partsmaster_xsd Drilldown into ItemRegionCountry in schema components_xsd Drilldown into Dimension in schema components_xsd Drilldown into PackageQuantity in schema partsmaster_xsd Drilldown into MinimumBuyQuantity in schema partsmaster_xsd Drilldown into MerchandiseQuantity in schema partsmaster_xsd Drilldown into DistributionQuantity in schema partsmaster_xsd Drilldown into ReturnIndicator in schema components_xsd Drilldown into SupplyChainLocationCode in schema partsmaster_xsd Drilldown into UniversalProductCodeNumberID in schema partsmaster_xsd Drilldown into StratificationCode in schema partsmaster_xsd Drilldown into VintagePartIndicator in schema partsmaster_xsd Drilldown into CoreChargeAmount in schema partsmaster_xsd Drilldown into ItemCatalogGroupID in schema partsmaster_xsd Drilldown into FuturePriceIndicator in schema partsmaster_xsd Drilldown into FranchiseCode in schema partsmaster_xsd Drilldown into GoodwrenchServiceMerchandisingPlusEligibleIndicator in schema partsmaster_xsd Drilldown into ItemEffectiveDate in schema partsmaster_xsd Drilldown into LastModelYear in schema partsmaster_xsd Drilldown into FirstModelYear in schema partsmaster_xsd Drilldown into Brand in schema partsmaster_xsd Drilldown into AlternateItemID in schema partsmaster_xsd Drilldown into TopSellerGroup in schema partsmaster_xsd Drilldown into SupersedingPartGroup in schema components_xsd Drilldown into PartCoreDetail in schema components_xsd Drilldown into PartMasterPricing in schema components_xsd Drilldown into ItemQuantity in schema partsmaster_xsd Drilldown into PartManufacturerBrand in schema partsmaster_xsd Drilldown into ManufacturerPartCode in schema partsmaster_xsd Drilldown into PartManufacturer in schema partsmaster_xsd Drilldown into PartsProductItem in schema components_xsd Drilldown into PartMasterLineType in schema partsmaster_xsdXSD Diagram of PartMasterLine in schema partsmaster_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartMasterLine" type="PartMasterLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                Part Master Line
            </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PartsProductItem star:PartsProductItem 1 (1)
PartManufacturer star:PartManufacturer 0 (1)
ManufacturerPartCode star:ManufacturerPartCode 0 (1)
PartManufacturerBrand star:PartManufacturerBrand 0 (1)
ItemQuantity star:ItemQuantity 0 (1)
PartMasterPricing star:PartMasterPricing 0 unbounded
PartCoreDetail star:PartCoreDetail 0 unbounded
SupersedingPartGroup star:SupersedingPartGroup 0 unbounded
TopSellerGroup star:TopSellerGroup 0 1
AlternateItemID star:AlternateItemID 0 1
Brand star:Brand 0 1
FirstModelYear star:FirstModelYear 0 1
LastModelYear star:LastModelYear 0 1
ItemEffectiveDate star:ItemEffectiveDate 0 1
GoodwrenchServiceMerchandisingPlusEligibleIndicator star:GoodwrenchServiceMerchandisingPlusEligibleIndicator 0 1
FranchiseCode star:FranchiseCode 0 1
FuturePriceIndicator star:FuturePriceIndicator 0 1
ItemCatalogGroupID star:ItemCatalogGroupID 0 1
CoreChargeAmount star:CoreChargeAmount 0 1
VintagePartIndicator star:VintagePartIndicator 0 1
StratificationCode star:StratificationCode 0 1
UniversalProductCodeNumberID star:UniversalProductCodeNumberID 0 1
SupplyChainLocationCode star:SupplyChainLocationCode 0 1
ReturnIndicator star:ReturnIndicator 0 1
DistributionQuantity star:DistributionQuantity 0 1
MerchandiseQuantity star:MerchandiseQuantity 0 1
MinimumBuyQuantity star:MinimumBuyQuantity 0 1
PackageQuantity star:PackageQuantity 0 1
Dimension star:Dimension 0 unbounded
ItemRegionCountry star:ItemRegionCountry 0 1
TemporaryPriceIndicator star:TemporaryPriceIndicator 0 1
ItemLineCode star:ItemLineCode 0 1
ItemWeightMeasure star:ItemWeightMeasure 0 1
Collapse Derivation Tree:
