<xsd:complexType name="PartMasterLineType">
<xsd:annotation xmlns="http://www.starstandards.org/STAR">
<xsd:documentation source="http://www.starstandard.org/STAR/5" />
</xsd:annotation>
<xsd:sequence>
<xsd:element ref="PartsProductItem" minOccurs="1" />
<xsd:element name="PartManufacturer" type="udt:TextType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Identifes the part
manufacturer.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ManufacturerPartCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Manufacturer assigned
part code.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartManufacturerBrand" type="udt:TextType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Part Manufacturer
Brand</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ItemQuantity" type="sqdt:QuantityType" minOccurs="0">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Quantity of Part
number.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="PartMasterPricing" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="PartCoreDetail" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="SupersedingPartGroup" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="TopSellerGroup" minOccurs="0" maxOccurs="1" />
<xsd:element name="AlternateItemID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">An alternate identifier
for an item or part in addition to the item number or part number. This may be a
unique identifier used for a independent after market(non dealer) sales
part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Brand" type="udt:TextType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the brand or
carline for which this part has applicability (e.g. Chevorlet
Impala).</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FirstModelYear" type="qdt:YearDateType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The first vehicle model
year of a vehicle for which a part fits.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LastModelYear" type="qdt:YearDateType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The last vehicle model
year of a vehicle for which a part fits.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ItemEffectiveDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The date when a item was
released for use.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="GoodwrenchServiceMerchandisingPlusEligibleIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether a
dealer is eligible for advertising coop funds.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FranchiseCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">A 2-digit numeric code
representing a dealer's sales makes.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="FuturePriceIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether or not
there is a temporary price for a part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ItemCatalogGroupID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Catalog Group, which is
an numerical value with a decimal representing the location of the part in the
catalog.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CoreChargeAmount" type="udt:AmountType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Core Charge, which is a
currency value displayed in USD representing purchase price of a part if a core is
not sold back to the OEM (e.g. Core price is $100, Core Charge is $110 if part is
not returned to GM SPO)</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="VintagePartIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether or not
a part is a vintage part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="StratificationCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Stratification Code,
which is an alphabetic identifier indicating sales velocity of a
part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="UniversalProductCodeNumberID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">UPC Number, which is a
numeric value of nn digits representing a part's Universal Product
Code.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SupplyChainLocationCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">A code representing the
location of an item within a supply chain.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="ReturnIndicator" minOccurs="0" maxOccurs="1" />
<xsd:element name="DistributionQuantity" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Allows the retailer to
determine the quantity that will be shipped if the part is a non-direct ship
part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="MerchandiseQuantity" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">An identifier used by the
retailer to understand common unit of sale. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="MinimumBuyQuantity" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Allows the retailer to
know the minimum quantity of merchandise that can be ordered.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PackageQuantity" type="sqdt:QuantityType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Allows the retailer to
know the quantity contained in the package.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="Dimension" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="ItemRegionCountry" minOccurs="0" maxOccurs="1" />
<xsd:element name="TemporaryPriceIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether or not
there is a temporary price for a part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ItemLineCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">A numeric code which
identifies what item, product or part of a vehicle, boat, motorcycle, etc. for which
a part is applicable (e.g. exhaust, HVAC, brakes, transmission).'s parts
inventory.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ItemWeightMeasure" type="sqdt:WeightMeasureType" minOccurs="0" maxOccurs="1">
<xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
<xsd:documentation source="http://www.starstandard.org/STAR/5">The weight of an item or
part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:complexType>
|

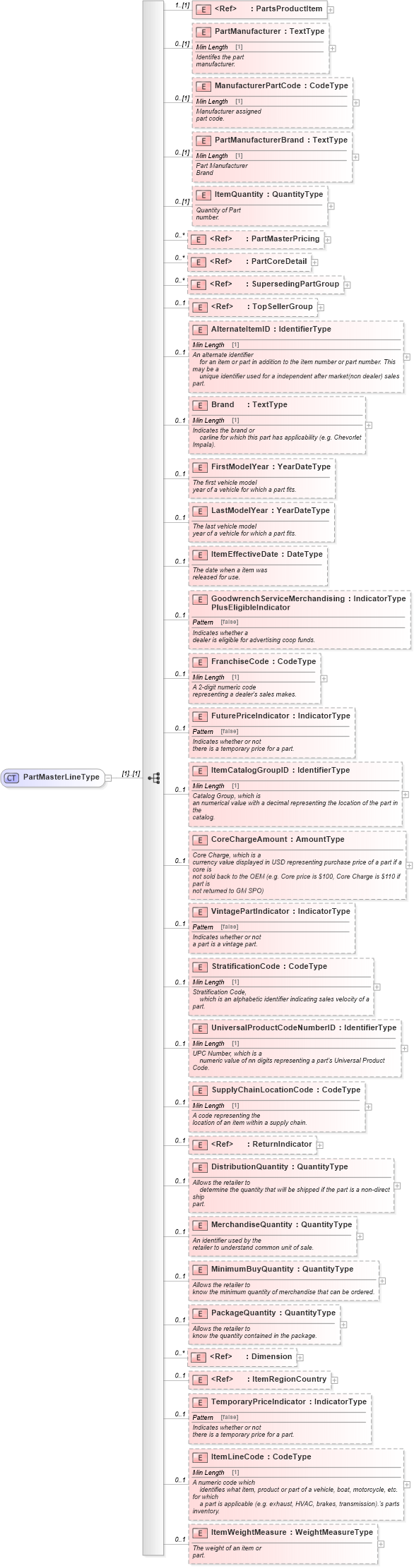

XSD Schema Diagram:
