Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: PartsInvoiceHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsInvoiceHeaderType
Containing Schema: PartsInvoice.xsd
Abstract
Documentation:
For each PartsInvoice represented in the DataArea of the PartsInvoice Business Object Document, there must be once occurrence of the Header Component.

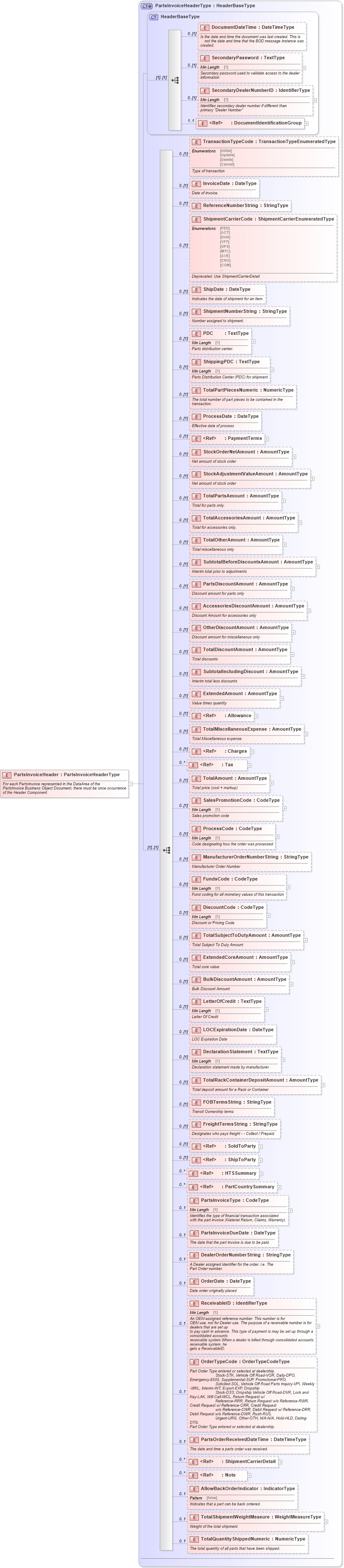

Collapse XSD Schema Diagram:
Drilldown into TotalQuantityShippedNumeric in schema partsinvoice_xsd Drilldown into TotalShipmentWeightMeasure in schema partsinvoice_xsd Drilldown into AllowBackOrderIndicator in schema partsinvoice_xsd Drilldown into Note in schema fields_xsd1 Drilldown into ShipmentCarrierDetail in schema components_xsd Drilldown into PartsOrderReceivedDateTime in schema partsinvoice_xsd Drilldown into OrderTypeCode in schema partsinvoice_xsd Drilldown into ReceivableID in schema partsinvoice_xsd Drilldown into OrderDate in schema partsinvoice_xsd Drilldown into DealerOrderNumberString in schema partsinvoice_xsd Drilldown into PartsInvoiceDueDate in schema partsinvoice_xsd Drilldown into PartsInvoiceType in schema partsinvoice_xsd Drilldown into PartCountrySummary in schema components_xsd Drilldown into HTSSummary in schema components_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into SoldToParty in schema components_xsd Drilldown into FreightTermsString in schema partsinvoice_xsd Drilldown into FOBTermsString in schema partsinvoice_xsd Drilldown into TotalRackContainerDepositAmount in schema partsinvoice_xsd Drilldown into DeclarationStatement in schema partsinvoice_xsd Drilldown into LOCExpirationDate in schema partsinvoice_xsd Drilldown into LetterOfCredit in schema partsinvoice_xsd Drilldown into BulkDiscountAmount in schema partsinvoice_xsd Drilldown into ExtendedCoreAmount in schema partsinvoice_xsd Drilldown into TotalSubjectToDutyAmount in schema partsinvoice_xsd Drilldown into DiscountCode in schema partsinvoice_xsd Drilldown into FundsCode in schema partsinvoice_xsd Drilldown into ManufacturerOrderNumberString in schema partsinvoice_xsd Drilldown into ProcessCode in schema partsinvoice_xsd Drilldown into SalesPromotionCode in schema partsinvoice_xsd Drilldown into TotalAmount in schema partsinvoice_xsd Drilldown into Tax in schema components_xsd Drilldown into Charges in schema components_xsd Drilldown into TotalMiscellaneousExpense in schema partsinvoice_xsd Drilldown into Allowance in schema components_xsd Drilldown into ExtendedAmount in schema partsinvoice_xsd Drilldown into SubtotalIncludingDiscount in schema partsinvoice_xsd Drilldown into TotalDiscountAmount in schema partsinvoice_xsd Drilldown into OtherDiscountAmount in schema partsinvoice_xsd Drilldown into AccessoriesDiscountAmount in schema partsinvoice_xsd Drilldown into PartsDiscountAmount in schema partsinvoice_xsd Drilldown into SubtotalBeforeDiscountsAmount in schema partsinvoice_xsd Drilldown into TotalOtherAmount in schema partsinvoice_xsd Drilldown into TotalAccessoriesAmount in schema partsinvoice_xsd Drilldown into TotalPartsAmount in schema partsinvoice_xsd Drilldown into StockAdjustmentValueAmount in schema partsinvoice_xsd Drilldown into StockOrderNetAmount in schema partsinvoice_xsd Drilldown into PaymentTerms in schema components_xsd Drilldown into ProcessDate in schema partsinvoice_xsd Drilldown into TotalPartPiecesNumeric in schema partsinvoice_xsd Drilldown into ShippingPDC in schema partsinvoice_xsd Drilldown into PDC in schema partsinvoice_xsd Drilldown into ShipmentNumberString in schema partsinvoice_xsd Drilldown into ShipDate in schema partsinvoice_xsd Drilldown into ShipmentCarrierCode in schema partsinvoice_xsd Drilldown into ReferenceNumberString in schema partsinvoice_xsd Drilldown into InvoiceDate in schema partsinvoice_xsd Drilldown into TransactionTypeCode in schema partsinvoice_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into PartsInvoiceHeaderType in schema partsinvoice_xsdXSD Diagram of PartsInvoiceHeader in schema partsinvoice_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsInvoiceHeader" type="PartsInvoiceHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5"> For each PartsInvoice represented in the DataArea of the
            PartsInvoice Business Object Document, there must be once occurrence of the Header Component.
         </xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
TransactionTypeCode star:TransactionTypeCode 0 (1)
InvoiceDate star:InvoiceDate 0 (1)
ReferenceNumberString star:ReferenceNumberString 0 (1)
ShipmentCarrierCode star:ShipmentCarrierCode 0 (1)
ShipDate star:ShipDate 0 (1)
ShipmentNumberString star:ShipmentNumberString 0 (1)
PDC star:PDC 0 (1)
ShippingPDC star:ShippingPDC 0 (1)
TotalPartPiecesNumeric star:TotalPartPiecesNumeric 0 (1)
ProcessDate star:ProcessDate 0 (1)
PaymentTerms star:PaymentTerms 0 (1)
StockOrderNetAmount star:StockOrderNetAmount 0 (1)
StockAdjustmentValueAmount star:StockAdjustmentValueAmount 0 (1)
TotalPartsAmount star:TotalPartsAmount 0 (1)
TotalAccessoriesAmount star:TotalAccessoriesAmount 0 (1)
TotalOtherAmount star:TotalOtherAmount 0 (1)
SubtotalBeforeDiscountsAmount star:SubtotalBeforeDiscountsAmount 0 (1)
PartsDiscountAmount star:PartsDiscountAmount 0 (1)
AccessoriesDiscountAmount star:AccessoriesDiscountAmount 0 (1)
OtherDiscountAmount star:OtherDiscountAmount 0 (1)
TotalDiscountAmount star:TotalDiscountAmount 0 (1)
SubtotalIncludingDiscount star:SubtotalIncludingDiscount 0 (1)
ExtendedAmount star:ExtendedAmount 0 (1)
Allowance star:Allowance 0 (1)
TotalMiscellaneousExpense star:TotalMiscellaneousExpense 0 (1)
Charges star:Charges 0 (1)
Tax star:Tax 0 unbounded
TotalAmount star:TotalAmount 0 (1)
SalesPromotionCode star:SalesPromotionCode 0 (1)
ProcessCode star:ProcessCode 0 (1)
ManufacturerOrderNumberString star:ManufacturerOrderNumberString 0 (1)
FundsCode star:FundsCode 0 (1)
DiscountCode star:DiscountCode 0 (1)
TotalSubjectToDutyAmount star:TotalSubjectToDutyAmount 0 (1)
ExtendedCoreAmount star:ExtendedCoreAmount 0 (1)
BulkDiscountAmount star:BulkDiscountAmount 0 (1)
LetterOfCredit star:LetterOfCredit 0 (1)
LOCExpirationDate star:LOCExpirationDate 0 (1)
DeclarationStatement star:DeclarationStatement 0 (1)
TotalRackContainerDepositAmount star:TotalRackContainerDepositAmount 0 (1)
FOBTermsString star:FOBTermsString 0 (1)
FreightTermsString star:FreightTermsString 0 (1)
SoldToParty star:SoldToParty 0 (1)
ShipToParty star:ShipToParty 0 (1)
HTSSummary star:HTSSummary 0 unbounded
PartCountrySummary star:PartCountrySummary 0 unbounded
PartsInvoiceType star:PartsInvoiceType 0 1
PartsInvoiceDueDate star:PartsInvoiceDueDate 0 1
DealerOrderNumberString star:DealerOrderNumberString 0 1
OrderDate star:OrderDate 0 1
ReceivableID star:ReceivableID 0 1
OrderTypeCode star:OrderTypeCode 0 1
PartsOrderReceivedDateTime star:PartsOrderReceivedDateTime 0 1
ShipmentCarrierDetail star:ShipmentCarrierDetail 0 unbounded
Note oagis:Note 0 unbounded
AllowBackOrderIndicator star:AllowBackOrderIndicator 0 1
TotalShipmentWeightMeasure star:TotalShipmentWeightMeasure 0 1
TotalQuantityShippedNumeric star:TotalQuantityShippedNumeric 0 1
Collapse Derivation Tree:
