Documentation for Standards for Technology in Automotive Retail
Definition Type: ComplexType
Name: PartsInvoiceHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: PartsInvoice.xsd
Abstract
Documentation:
.

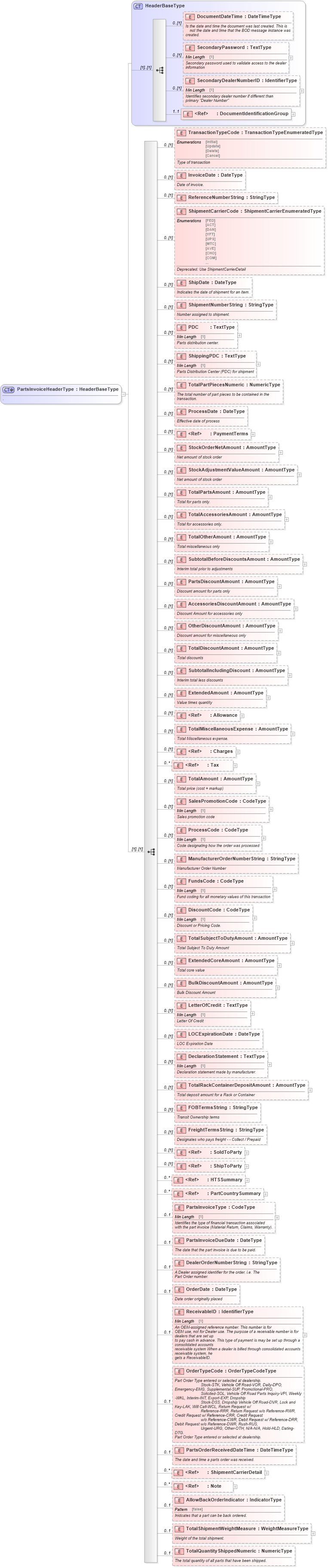

Collapse XSD Schema Diagram:
Drilldown into TotalQuantityShippedNumeric in schema partsinvoice_xsd Drilldown into TotalShipmentWeightMeasure in schema partsinvoice_xsd Drilldown into AllowBackOrderIndicator in schema partsinvoice_xsd Drilldown into Note in schema fields_xsd1 Drilldown into ShipmentCarrierDetail in schema components_xsd Drilldown into PartsOrderReceivedDateTime in schema partsinvoice_xsd Drilldown into OrderTypeCode in schema partsinvoice_xsd Drilldown into ReceivableID in schema partsinvoice_xsd Drilldown into OrderDate in schema partsinvoice_xsd Drilldown into DealerOrderNumberString in schema partsinvoice_xsd Drilldown into PartsInvoiceDueDate in schema partsinvoice_xsd Drilldown into PartsInvoiceType in schema partsinvoice_xsd Drilldown into PartCountrySummary in schema components_xsd Drilldown into HTSSummary in schema components_xsd Drilldown into ShipToParty in schema components_xsd Drilldown into SoldToParty in schema components_xsd Drilldown into FreightTermsString in schema partsinvoice_xsd Drilldown into FOBTermsString in schema partsinvoice_xsd Drilldown into TotalRackContainerDepositAmount in schema partsinvoice_xsd Drilldown into DeclarationStatement in schema partsinvoice_xsd Drilldown into LOCExpirationDate in schema partsinvoice_xsd Drilldown into LetterOfCredit in schema partsinvoice_xsd Drilldown into BulkDiscountAmount in schema partsinvoice_xsd Drilldown into ExtendedCoreAmount in schema partsinvoice_xsd Drilldown into TotalSubjectToDutyAmount in schema partsinvoice_xsd Drilldown into DiscountCode in schema partsinvoice_xsd Drilldown into FundsCode in schema partsinvoice_xsd Drilldown into ManufacturerOrderNumberString in schema partsinvoice_xsd Drilldown into ProcessCode in schema partsinvoice_xsd Drilldown into SalesPromotionCode in schema partsinvoice_xsd Drilldown into TotalAmount in schema partsinvoice_xsd Drilldown into Tax in schema components_xsd Drilldown into Charges in schema components_xsd Drilldown into TotalMiscellaneousExpense in schema partsinvoice_xsd Drilldown into Allowance in schema components_xsd Drilldown into ExtendedAmount in schema partsinvoice_xsd Drilldown into SubtotalIncludingDiscount in schema partsinvoice_xsd Drilldown into TotalDiscountAmount in schema partsinvoice_xsd Drilldown into OtherDiscountAmount in schema partsinvoice_xsd Drilldown into AccessoriesDiscountAmount in schema partsinvoice_xsd Drilldown into PartsDiscountAmount in schema partsinvoice_xsd Drilldown into SubtotalBeforeDiscountsAmount in schema partsinvoice_xsd Drilldown into TotalOtherAmount in schema partsinvoice_xsd Drilldown into TotalAccessoriesAmount in schema partsinvoice_xsd Drilldown into TotalPartsAmount in schema partsinvoice_xsd Drilldown into StockAdjustmentValueAmount in schema partsinvoice_xsd Drilldown into StockOrderNetAmount in schema partsinvoice_xsd Drilldown into PaymentTerms in schema components_xsd Drilldown into ProcessDate in schema partsinvoice_xsd Drilldown into TotalPartPiecesNumeric in schema partsinvoice_xsd Drilldown into ShippingPDC in schema partsinvoice_xsd Drilldown into PDC in schema partsinvoice_xsd Drilldown into ShipmentNumberString in schema partsinvoice_xsd Drilldown into ShipDate in schema partsinvoice_xsd Drilldown into ShipmentCarrierCode in schema partsinvoice_xsd Drilldown into ReferenceNumberString in schema partsinvoice_xsd Drilldown into InvoiceDate in schema partsinvoice_xsd Drilldown into TransactionTypeCode in schema partsinvoice_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of PartsInvoiceHeaderType in schema partsinvoice_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PartsInvoiceHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <!--    <xsd:element ref="DocumentID" minOccurs="0" /> -->
                <xsd:element name="TransactionTypeCode" type="scl:TransactionTypeEnumeratedType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Type of transaction</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="InvoiceDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Date of invoice.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ReferenceNumberString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5" />
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ShipmentCarrierCode" type="scl:ShipmentCarrierEnumeratedType" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated: Use ShipmentCarrierDetail
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ShipDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the date of shipment for an item.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ShipmentNumberString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Number assigned to shipment.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PDC" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Parts distribution center.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ShippingPDC" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Parts Distribution Center (PDC) for shipment
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalPartPiecesNumeric" type="udt:NumericType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The total number of part pieces to be contained in the
                        transaction.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ProcessDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Effective date of process</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="PaymentTerms" minOccurs="0" />
                <xsd:element name="StockOrderNetAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Net amount of stock order</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="StockAdjustmentValueAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Net amount of stock order</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalPartsAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total for parts only.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalAccessoriesAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total for accessories only.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalOtherAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total miscellaneous only</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="SubtotalBeforeDiscountsAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Interim total prior to adjustments</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PartsDiscountAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Discount amount for parts only</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="AccessoriesDiscountAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Discount Amount for accessories only
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="OtherDiscountAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Discount amount for miscellaneous only
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalDiscountAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total discounts</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="SubtotalIncludingDiscount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Interim total less discounts</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ExtendedAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Value times quantity</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Allowance" minOccurs="0" />
                <xsd:element name="TotalMiscellaneousExpense" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total Miscellaneous expense.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Charges" minOccurs="0" />
                <xsd:element ref="Tax" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="TotalAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total price (cost + markup)</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="SalesPromotionCode" type="udt:CodeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Sales promotion code</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ProcessCode" type="udt:CodeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Code designating how the order was processed
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ManufacturerOrderNumberString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Manufacturer Order Number</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="FundsCode" type="udt:CodeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Fund coding for all monetary values of this transaction
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="DiscountCode" type="udt:CodeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Discount or Pricing Code.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalSubjectToDutyAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total Subject To Duty Amount</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ExtendedCoreAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total core value</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="BulkDiscountAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Bulk Discount Amount</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="LetterOfCredit" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Letter Of Credit</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="LOCExpirationDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">LOC Expiration Date</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="DeclarationStatement" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Declaration statement made by manufacturer.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalRackContainerDepositAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total deposit amount for a Rack or Container
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="FOBTermsString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Transit Ownership terms</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="FreightTermsString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Designates who pays freight - - Collect / Prepaid
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="SoldToParty" minOccurs="0" />
                <xsd:element ref="ShipToParty" minOccurs="0" />
                <xsd:element ref="HTSSummary" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="PartCountrySummary" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="PartsInvoiceType" type="udt:CodeType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies the type of financial transaction associated
                        with the part invoice (Material Return, Claims, Warranty).</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PartsInvoiceDueDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The date that the part invoice is due to be paid.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="DealerOrderNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">A Dealer assigned identifier for the order. i.e. The
                        Part Order number.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="OrderDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Date order originally placed</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ReceivableID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">An OEM-assigned reference number. This number is for
                        OEM use, not for Dealer use. The purpose of a receivable number is for dealers that are set up
                        to pay cash in advance. This type of payment is may be set up through a consolidated accounts
                        receivable system When a dealer is billed through consolidated accounts receivable system, he
                        gets a ReceivableID.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="OrderTypeCode" type="sqdt:OrderTypeCodeType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Part Order Type entered or selected at dealership.
                        Stock-STK, Vehicle Off Road-VOR, Daily-DPO, Emergency-EMG, Supplemental-SUP, Promotional-PRO,
                        Solicited-SOL, Vehicle Off Road Parts Inquiry-VPI, Weekly-WKL, Interim-INT, Export-EXP, Dropship
                        Stock-DSS, Dropship Vehicle Off Road-DVR, Lock and Key-LAK, Will Call-WCL, Return Request w/
                        Reference-RRR, Return Request w/o Reference-RWR, Credit Request w/ Reference-CRR, Credit Request
                        w/o Reference-CWR, Debit Request w/ Reference-DRR, Debit Request w/o Reference-DWR, Rush-RUS,
                        Urgent-URG, Other-OTH, N/A-N/A, Hold-HLD, Dating-DTG.</xsd:documentation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5/PartOrder">Part Order Type entered or selected at dealership.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PartsOrderReceivedDateTime" type="udt:DateTimeType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The date and time a parts order was received.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ShipmentCarrierDetail" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="oagis:Note" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5"> Free form notes that are entered by the dealer at the
                        time of order entry. These notes are for informational purposes only, no system processing or
                        business logic that would require extraction of data requirements is to appear in this field.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="AllowBackOrderIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Inidcates that a part can be back ordered.
                    </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalShipmentWeightMeasure" type="sqdt:WeightMeasureType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Weight of the total shipment.
                    </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalQuantityShippedNumeric" type="udt:NumericType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation>
                            The total quantity of all parts that have been shipped.
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
TransactionTypeCode star:TransactionTypeCode 0 (1)
InvoiceDate star:InvoiceDate 0 (1)
ReferenceNumberString star:ReferenceNumberString 0 (1)
ShipmentCarrierCode star:ShipmentCarrierCode 0 (1)
ShipDate star:ShipDate 0 (1)
ShipmentNumberString star:ShipmentNumberString 0 (1)
PDC star:PDC 0 (1)
ShippingPDC star:ShippingPDC 0 (1)
TotalPartPiecesNumeric star:TotalPartPiecesNumeric 0 (1)
ProcessDate star:ProcessDate 0 (1)
PaymentTerms star:PaymentTerms 0 (1)
StockOrderNetAmount star:StockOrderNetAmount 0 (1)
StockAdjustmentValueAmount star:StockAdjustmentValueAmount 0 (1)
TotalPartsAmount star:TotalPartsAmount 0 (1)
TotalAccessoriesAmount star:TotalAccessoriesAmount 0 (1)
TotalOtherAmount star:TotalOtherAmount 0 (1)
SubtotalBeforeDiscountsAmount star:SubtotalBeforeDiscountsAmount 0 (1)
PartsDiscountAmount star:PartsDiscountAmount 0 (1)
AccessoriesDiscountAmount star:AccessoriesDiscountAmount 0 (1)
OtherDiscountAmount star:OtherDiscountAmount 0 (1)
TotalDiscountAmount star:TotalDiscountAmount 0 (1)
SubtotalIncludingDiscount star:SubtotalIncludingDiscount 0 (1)
ExtendedAmount star:ExtendedAmount 0 (1)
Allowance star:Allowance 0 (1)
TotalMiscellaneousExpense star:TotalMiscellaneousExpense 0 (1)
Charges star:Charges 0 (1)
Tax star:Tax 0 unbounded
TotalAmount star:TotalAmount 0 (1)
SalesPromotionCode star:SalesPromotionCode 0 (1)
ProcessCode star:ProcessCode 0 (1)
ManufacturerOrderNumberString star:ManufacturerOrderNumberString 0 (1)
FundsCode star:FundsCode 0 (1)
DiscountCode star:DiscountCode 0 (1)
TotalSubjectToDutyAmount star:TotalSubjectToDutyAmount 0 (1)
ExtendedCoreAmount star:ExtendedCoreAmount 0 (1)
BulkDiscountAmount star:BulkDiscountAmount 0 (1)
LetterOfCredit star:LetterOfCredit 0 (1)
LOCExpirationDate star:LOCExpirationDate 0 (1)
DeclarationStatement star:DeclarationStatement 0 (1)
TotalRackContainerDepositAmount star:TotalRackContainerDepositAmount 0 (1)
FOBTermsString star:FOBTermsString 0 (1)
FreightTermsString star:FreightTermsString 0 (1)
SoldToParty star:SoldToParty 0 (1)
ShipToParty star:ShipToParty 0 (1)
HTSSummary star:HTSSummary 0 unbounded
PartCountrySummary star:PartCountrySummary 0 unbounded
PartsInvoiceType star:PartsInvoiceType 0 1
PartsInvoiceDueDate star:PartsInvoiceDueDate 0 1
DealerOrderNumberString star:DealerOrderNumberString 0 1
OrderDate star:OrderDate 0 1
ReceivableID star:ReceivableID 0 1
OrderTypeCode star:OrderTypeCode 0 1
PartsOrderReceivedDateTime star:PartsOrderReceivedDateTime 0 1
ShipmentCarrierDetail star:ShipmentCarrierDetail 0 unbounded
Note oagis:Note 0 unbounded
AllowBackOrderIndicator star:AllowBackOrderIndicator 0 1
TotalShipmentWeightMeasure star:TotalShipmentWeightMeasure 0 1
TotalQuantityShippedNumeric star:TotalQuantityShippedNumeric 0 1
Collapse Derivation Tree:
Collapse References:
star:PartsInvoiceHeader
Documentation for Standards for Technology in Automotive Retail

Generated using Liquid Studio - Developer Bundle 21.0.0.0
