Definition Type: Element
Name: PartsOrderLine
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsOrderLineType
Containing Schema: PartsOrder.xsd
Abstract
Documentation:
Parts Order Line

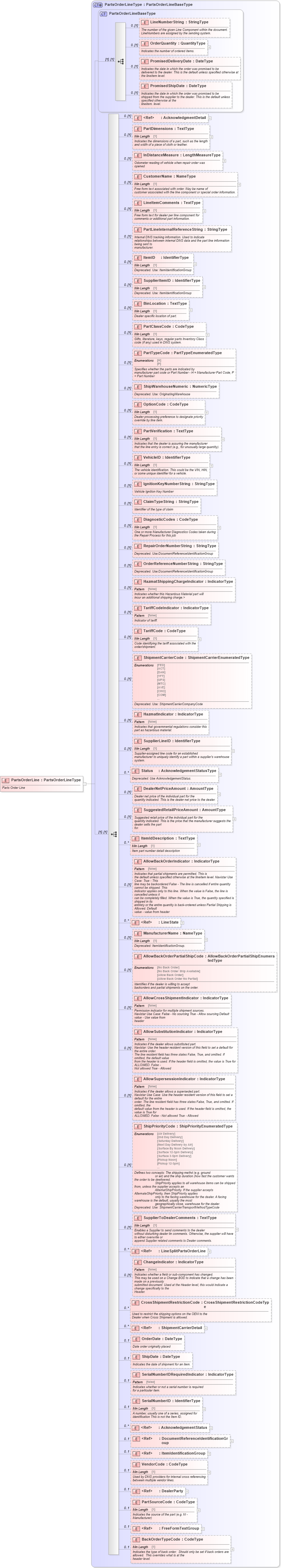

Collapse XSD Schema Diagram:
Drilldown into BackOrderTypeCode in schema partsorder_xsd Drilldown into FreeFormTextGroup in schema components_xsd Drilldown into PartSourceCode in schema partsorder_xsd Drilldown into DealerParty in schema components_xsd Drilldown into VendorCode in schema partsorder_xsd Drilldown into ItemIdentificationGroup in schema components_xsd Drilldown into DocumentReferenceIdentificationGroup in schema components_xsd Drilldown into AcknowledgementStatus in schema components_xsd Drilldown into SerialNumberID in schema partsorder_xsd Drilldown into SerialNumberIDRequiredIndicator in schema partsorder_xsd Drilldown into ShipDate in schema partsorder_xsd Drilldown into OrderDate in schema partsorder_xsd Drilldown into ShipmentCarrierDetail in schema components_xsd Drilldown into CrossShipmentRestrictionCode in schema partsorder_xsd Drilldown into ChangeIndicator in schema partsorder_xsd Drilldown into LineSplitPartsOrderLine in schema partsorder_xsd Drilldown into SupplierToDealerComments in schema partsorder_xsd Drilldown into ShipPriorityCode in schema partsorder_xsd Drilldown into AllowSupersessionIndicator in schema partsorder_xsd Drilldown into AllowSubstitutionIndicator in schema partsorder_xsd Drilldown into AllowCrossShipmentIndicator in schema partsorder_xsd Drilldown into AllowBackOrderPartialShipCode in schema partsorder_xsd Drilldown into ManufacturerName in schema partsorder_xsd Drilldown into LineState in schema components_xsd Drilldown into AllowBackOrderIndicator in schema partsorder_xsd Drilldown into ItemIdDescription in schema partsorder_xsd Drilldown into SuggestedRetailPriceAmount in schema partsorder_xsd Drilldown into DealerNetPriceAmount in schema partsorder_xsd Drilldown into Status in schema partsorder_xsd Drilldown into SupplierLineID in schema partsorder_xsd Drilldown into HazmatIndicator in schema partsorder_xsd Drilldown into ShipmentCarrierCode in schema partsorder_xsd Drilldown into TariffCode in schema partsorder_xsd Drilldown into TariffCodeIndicator in schema partsorder_xsd Drilldown into HazmatShippingChargeIndicator in schema partsorder_xsd Drilldown into OrderReferenceNumberString in schema partsorder_xsd Drilldown into RepairOrderNumberString in schema partsorder_xsd Drilldown into DiagnosticCodes in schema partsorder_xsd Drilldown into ClaimTypeString in schema partsorder_xsd Drilldown into IgnitionKeyNumberString in schema partsorder_xsd Drilldown into VehicleID in schema partsorder_xsd Drilldown into PartVerification in schema partsorder_xsd Drilldown into OptionCode in schema partsorder_xsd Drilldown into ShipWarehouseNumeric in schema partsorder_xsd Drilldown into PartTypeCode in schema partsorder_xsd Drilldown into PartClassCode in schema partsorder_xsd Drilldown into BinLocation in schema partsorder_xsd Drilldown into SupplierItemID in schema partsorder_xsd Drilldown into ItemID in schema partsorder_xsd Drilldown into PartLineInternalReferenceString in schema partsorder_xsd Drilldown into LineItemComments in schema partsorder_xsd Drilldown into CustomerName in schema partsorder_xsd Drilldown into InDistanceMeasure in schema partsorder_xsd Drilldown into PartDimensions in schema partsorder_xsd Drilldown into AcknowledgmentDetail in schema components_xsd Drilldown into PromisedShipDate in schema partsorder_xsd Drilldown into PromisedDeliveryDate in schema partsorder_xsd Drilldown into OrderQuantity in schema partsorder_xsd Drilldown into LineNumberString in schema partsorder_xsd Drilldown into PartsOrderLineBaseType in schema partsorder_xsd Drilldown into PartsOrderLineType in schema partsorder_xsdXSD Diagram of PartsOrderLine in schema partsorder_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsOrderLine" type="PartsOrderLineType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5"> Parts Order Line</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
LineNumberString star:LineNumberString 0 (1)
OrderQuantity star:OrderQuantity 0 (1)
PromisedDeliveryDate star:PromisedDeliveryDate 0 (1)
PromisedShipDate star:PromisedShipDate 0 (1)
AcknowledgmentDetail star:AcknowledgmentDetail 0 (1)
PartDimensions star:PartDimensions 0 (1)
InDistanceMeasure star:InDistanceMeasure 0 (1)
CustomerName star:CustomerName 0 (1)
LineItemComments star:LineItemComments 0 (1)
PartLineInternalReferenceString star:PartLineInternalReferenceString 0 (1)
ItemID star:ItemID 0 (1)
SupplierItemID star:SupplierItemID 0 (1)
BinLocation star:BinLocation 0 (1)
PartClassCode star:PartClassCode 0 (1)
PartTypeCode star:PartTypeCode 0 (1)
ShipWarehouseNumeric star:ShipWarehouseNumeric 0 (1)
OptionCode star:OptionCode 0 (1)
PartVerification star:PartVerification 0 (1)
VehicleID star:VehicleID 0 (1)
IgnitionKeyNumberString star:IgnitionKeyNumberString 0 (1)
ClaimTypeString star:ClaimTypeString 0 (1)
DiagnosticCodes star:DiagnosticCodes 0 (1)
RepairOrderNumberString star:RepairOrderNumberString 0 (1)
OrderReferenceNumberString star:OrderReferenceNumberString 0 (1)
HazmatShippingChargeIndicator star:HazmatShippingChargeIndicator 0 (1)
TariffCodeIndicator star:TariffCodeIndicator 0 (1)
TariffCode star:TariffCode 0 (1)
ShipmentCarrierCode star:ShipmentCarrierCode 0 (1)
HazmatIndicator star:HazmatIndicator 0 (1)
SupplierLineID star:SupplierLineID 0 (1)
Status star:Status 0 unbounded
DealerNetPriceAmount star:DealerNetPriceAmount 0 (1)
SuggestedRetailPriceAmount star:SuggestedRetailPriceAmount 0 (1)
ItemIdDescription star:ItemIdDescription 0 unbounded
AllowBackOrderIndicator star:AllowBackOrderIndicator 0 (1)
LineState star:LineState 0 unbounded
ManufacturerName star:ManufacturerName 0 (1)
AllowBackOrderPartialShipCode star:AllowBackOrderPartialShipCode 0 (1)
AllowCrossShipmentIndicator star:AllowCrossShipmentIndicator 0 (1)
AllowSubstitutionIndicator star:AllowSubstitutionIndicator 0 (1)
AllowSupersessionIndicator star:AllowSupersessionIndicator 0 (1)
ShipPriorityCode star:ShipPriorityCode 0 (1)
SupplierToDealerComments star:SupplierToDealerComments 0 (1)
LineSplitPartsOrderLine star:LineSplitPartsOrderLine 0 unbounded
ChangeIndicator star:ChangeIndicator 0 (1)
CrossShipmentRestrictionCode star:CrossShipmentRestrictionCode 0 unbounded
ShipmentCarrierDetail star:ShipmentCarrierDetail 0 unbounded
OrderDate star:OrderDate 0 1
ShipDate star:ShipDate 0 1
SerialNumberIDRequiredIndicator star:SerialNumberIDRequiredIndicator 0 1
SerialNumberID star:SerialNumberID 0 1
AcknowledgementStatus star:AcknowledgementStatus 0 unbounded
DocumentReferenceIdentificationGroup star:DocumentReferenceIdentificationGroup 0 1
ItemIdentificationGroup star:ItemIdentificationGroup 0 1
VendorCode star:VendorCode 0 1
DealerParty star:DealerParty 0 1
PartSourceCode star:PartSourceCode 0 1
FreeFormTextGroup star:FreeFormTextGroup 0 1
BackOrderTypeCode star:BackOrderTypeCode 0 1
Collapse Derivation Tree:
