<xsd:complexType name="PartsOrderLineType">
<xsd:complexContent>
<xsd:extension base="PartsOrderLineBaseType">
<xsd:sequence>
<xsd:element ref="AcknowledgmentDetail" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: AcknowledgmentStatus
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartDimensions" type="udt:TextType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the dimensions of a part, such as the length
and width of a piece of cloth or leather.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="InDistanceMeasure" type="sqdt:LengthMeasureType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Odometer reading of vehicle when repair order was
opened</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CustomerName" type="udt:NameType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Free form text associated with order. May be name of
customer associated with the line component or special order information.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="LineItemComments" type="udt:TextType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Free form text for dealer per line component for
comments or additional part information.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartLineInternalReferenceString" type="qdt:StringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Internal DMS tracking information. Used to indicate
relationships between internal DMS data and the part line information being sent to
manufacturer.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ItemID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: ItemIdentificationGroup
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SupplierItemID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: ItemIdentificationGroup
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="BinLocation" type="udt:TextType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer specific location of part.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartClassCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Gifts, literature, keys, regular parts Inventory Class
code (if any) used in DMS system.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartTypeCode" type="scl:PartTypeEnumeratedType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Specifies whether the parts are indicated by
manufacturer part code or Part Number - H = Manufacturer Part Code, P = Part Number
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ShipWarehouseNumeric" type="udt:NumericType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: OriginatingWarehouse
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="OptionCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer processing preference to designate priority
override by line item.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="PartVerification" type="udt:TextType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates that the dealer is assuring the manufacturer
that the line entry is correct (e.g., for unusually large quantity).</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="VehicleID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">The vehicle identification. This could be the VIN, HIN,
or some unique identifier for a vehicle.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="IgnitionKeyNumberString" type="qdt:StringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle Ignition Key Number</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ClaimTypeString" type="qdt:StringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Identifier of the type of claim</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DiagnosticCodes" type="udt:CodeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">One or more Manufacturer Diagnostics Codes taken during
the Repair Process for this job</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="RepairOrderNumberString" type="qdt:StringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use:DocumentReferenceIdentificationGroup
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="OrderReferenceNumberString" type="qdt:StringType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use:DocumentReferenceIdentificationGroup
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="HazmatShippingChargeIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether this Hazardous Material part will
incur an additional shipping charge.></xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="TariffCodeIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicator of tariff.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="TariffCode" type="udt:CodeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Code identifying the tariff associated with the
order/shipment.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ShipmentCarrierCode" type="scl:ShipmentCarrierEnumeratedType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: ShipmentCarrierCompanyCode
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="HazmatIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates that governmental regulations consider this
part as hazardous material.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SupplierLineID" type="udt:IdentifierType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Supplier-assigned line code for an established
manufacturer to uniquely identify a part within a supplier's warehouse system.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Status" type="AcknowledgementStatusType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> Deprecated: Use AcknowledgementStatus.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DealerNetPriceAmount" type="udt:AmountType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer net price of the individual part for the
quantity indicated. This is the dealer net price to the dealer.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SuggestedRetailPriceAmount" type="udt:AmountType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Suggested retail price of the individual part for the
quantity indicated. This is the price that the manufacturer suggests the dealer sells the part
for.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ItemIdDescription" type="udt:TextType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Item part number detail description</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AllowBackOrderIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates that partial shipments are permitted. This is
the default unless specified otherwise at the lineitem level. Navistar Use Case: True - This
line may be backordered False - The line is cancelled if entire quantity cannot be shipped. This
indicator applies only to this line. When the value is False, the line is cancelled unless it
can be completely filled. When the value is True, the quantity specified is shipped in its
entirety or the entire quantity is back-ordered unless Partial Shipping is Allowed. Default
value - value from header</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="LineState" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="ManufacturerName" type="udt:NameType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5"> Deprecated: ItemIdentificationGroup.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AllowBackOrderPartialShipCode" type="scl:AllowBackOrderPartialShipEnumeratedType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies if the dealer is willing to accept
backorders and partial shipments on the order.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AllowCrossShipmentIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Permission indicator for multiple shipment sources.
Navistar Use Case: False - No sourcing True - Allow sourcing Default value - Use value from
header</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AllowSubstitutionIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates if the dealer allows substituted part.
Navistar: Use the header resident version of this field to set a default for the entire order.
The line resident field has three states False, True, and omitted. If omitted, the default value
from the header is used. If the header field is omitted, the value is True for ALLOWED. False -
Not allowed True - Allowed</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="AllowSupersessionIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates if the dealer allows a superseded part.
Navistar Use Case: Use the header resident version of this field to set a default for the entire
order. The line resident field has three states False, True, and omitted. If omitted, the
default value from the header is used. If the header field is omitted, the value is True for
ALLOWED. False - Not allowed True - Allowed</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ShipPriorityCode" type="scl:ShipPriorityEnumeratedType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Defines two concepts: The shipping methd (e.g. ground
or air) and the ship duration (how fast the customer wants the order to be deelivered.
ShipPriority applies to all warehouse items can be shipped from, unless the supplier accepts an
AlternatShipPriority. If the supplier accepts AlternateShipPriority, then ShipPriority applies
only to the facing warehouse for the dealer. A facing warehouse is the default, usually the most
geographically close, warehouse for the dealer.</xsd:documentation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: ShipmentCarrierTransportMethodTypeCode
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SupplierToDealerComments" type="udt:TextType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Enables a Supplier to send comments to the dealer
without disturbing dealer lin comments. Otherwise, the supplier will have to either overwrite or
append Supplier related comments to Dealer comments.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="LineSplitPartsOrderLine" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="ChangeIndicator" type="udt:IndicatorType" minOccurs="0">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether a field or sub-component has changed.
This may be used on a Change BOD to indicate that a change has been made on a previously
submitted document. Used at the Header level, this would indicate a change specifically to the
Header.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CrossShipmentRestrictionCode" type="sqdt:CrossShipmentRestrictionCodeType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Used to restrict the shipping options on the OEM to the
Dealer when Cross Shipment is allowed.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="ShipmentCarrierDetail" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="OrderDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Date order originally placed</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ShipDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the date of shipment for an item.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SerialNumberIDRequiredIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether or not a serial number is required
for a particular item.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SerialNumberID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">A number, usually one of a series, assigned for
identification This is not the Item ID.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="AcknowledgementStatus" minOccurs="0" maxOccurs="unbounded" />
<xsd:element ref="DocumentReferenceIdentificationGroup" minOccurs="0" maxOccurs="1" />
<xsd:element ref="ItemIdentificationGroup" minOccurs="0" maxOccurs="1" />
<xsd:element name="VendorCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Used by DMS providers for internal cross referencing
between multiple vendor lines.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="DealerParty" minOccurs="0" maxOccurs="1" />
<xsd:element name="PartSourceCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the source of the part (e.g. M -
Manufacturer)</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element ref="FreeFormTextGroup" minOccurs="0" maxOccurs="1" />
<xsd:element name="BackOrderTypeCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
<xsd:annotation>
<xsd:documentation source="http://www.starstandard.org/STAR/5">
Indicates the type of back order. Should only be set if back orders are allowed. This overrides what is at the
header level.
</xsd:documentation>
</xsd:annotation>
</xsd:element>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
|

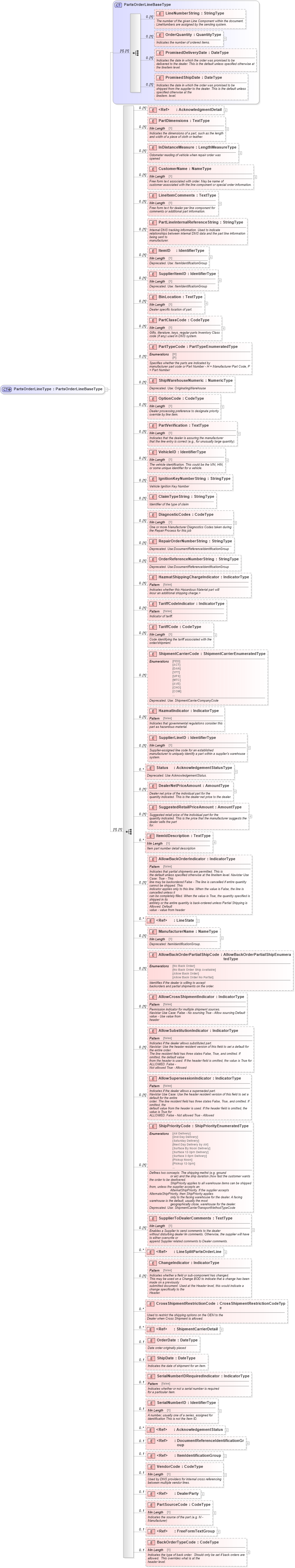

XSD Schema Diagram:
