Documentation for Standards for Technology in Automotive Retail
Definition Type: Element
Name: PartsShipmentHeader
Namespace: http://www.starstandard.org/STAR/5
Type: star:PartsShipmentHeaderType
Containing Schema: PartsShipment.xsd
Abstract
Documentation:
Parts Shipment Header

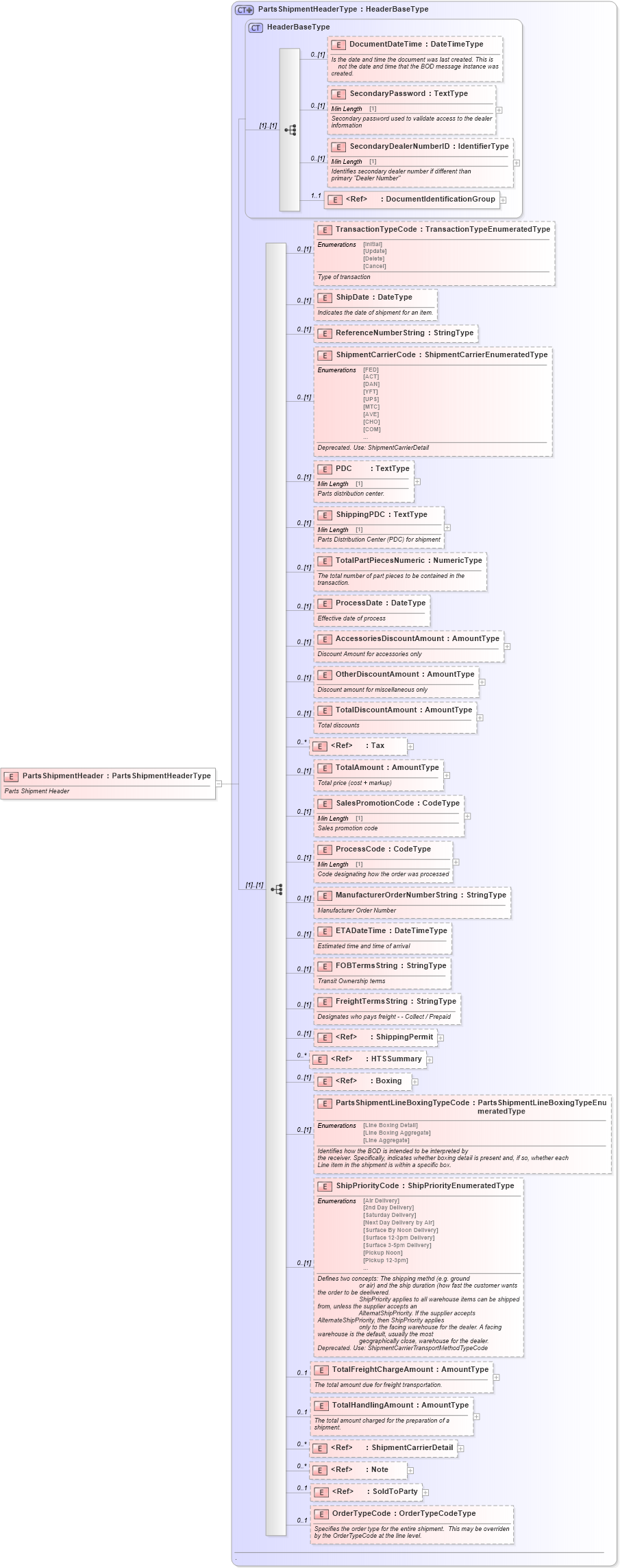

Collapse XSD Schema Diagram:
Drilldown into OrderTypeCode in schema partsshipment_xsd Drilldown into SoldToParty in schema components_xsd Drilldown into Note in schema fields_xsd1 Drilldown into ShipmentCarrierDetail in schema components_xsd Drilldown into TotalHandlingAmount in schema partsshipment_xsd Drilldown into TotalFreightChargeAmount in schema partsshipment_xsd Drilldown into ShipPriorityCode in schema partsshipment_xsd Drilldown into PartsShipmentLineBoxingTypeCode in schema partsshipment_xsd Drilldown into Boxing in schema components_xsd Drilldown into HTSSummary in schema components_xsd Drilldown into ShippingPermit in schema components_xsd Drilldown into FreightTermsString in schema partsshipment_xsd Drilldown into FOBTermsString in schema partsshipment_xsd Drilldown into ETADateTime in schema partsshipment_xsd Drilldown into ManufacturerOrderNumberString in schema partsshipment_xsd Drilldown into ProcessCode in schema partsshipment_xsd Drilldown into SalesPromotionCode in schema partsshipment_xsd Drilldown into TotalAmount in schema partsshipment_xsd Drilldown into Tax in schema components_xsd Drilldown into TotalDiscountAmount in schema partsshipment_xsd Drilldown into OtherDiscountAmount in schema partsshipment_xsd Drilldown into AccessoriesDiscountAmount in schema partsshipment_xsd Drilldown into ProcessDate in schema partsshipment_xsd Drilldown into TotalPartPiecesNumeric in schema partsshipment_xsd Drilldown into ShippingPDC in schema partsshipment_xsd Drilldown into PDC in schema partsshipment_xsd Drilldown into ShipmentCarrierCode in schema partsshipment_xsd Drilldown into ReferenceNumberString in schema partsshipment_xsd Drilldown into ShipDate in schema partsshipment_xsd Drilldown into TransactionTypeCode in schema partsshipment_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsd Drilldown into PartsShipmentHeaderType in schema partsshipment_xsdXSD Diagram of PartsShipmentHeader in schema partsshipment_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:element name="PartsShipmentHeader" type="PartsShipmentHeaderType">
    <xsd:annotation>
        <xsd:documentation source="http://www.starstandard.org/STAR/5">Parts Shipment Header</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
TransactionTypeCode star:TransactionTypeCode 0 (1)
ShipDate star:ShipDate 0 (1)
ReferenceNumberString star:ReferenceNumberString 0 (1)
ShipmentCarrierCode star:ShipmentCarrierCode 0 (1)
PDC star:PDC 0 (1)
ShippingPDC star:ShippingPDC 0 (1)
TotalPartPiecesNumeric star:TotalPartPiecesNumeric 0 (1)
ProcessDate star:ProcessDate 0 (1)
AccessoriesDiscountAmount star:AccessoriesDiscountAmount 0 (1)
OtherDiscountAmount star:OtherDiscountAmount 0 (1)
TotalDiscountAmount star:TotalDiscountAmount 0 (1)
Tax star:Tax 0 unbounded
TotalAmount star:TotalAmount 0 (1)
SalesPromotionCode star:SalesPromotionCode 0 (1)
ProcessCode star:ProcessCode 0 (1)
ManufacturerOrderNumberString star:ManufacturerOrderNumberString 0 (1)
ETADateTime star:ETADateTime 0 (1)
FOBTermsString star:FOBTermsString 0 (1)
FreightTermsString star:FreightTermsString 0 (1)
ShippingPermit star:ShippingPermit 0 (1)
HTSSummary star:HTSSummary 0 unbounded
Boxing star:Boxing 0 (1)
PartsShipmentLineBoxingTypeCode star:PartsShipmentLineBoxingTypeCode 0 (1)
ShipPriorityCode star:ShipPriorityCode 0 (1)
TotalFreightChargeAmount star:TotalFreightChargeAmount 0 1
TotalHandlingAmount star:TotalHandlingAmount 0 1
ShipmentCarrierDetail star:ShipmentCarrierDetail 0 unbounded
Note oagis:Note 0 unbounded
SoldToParty star:SoldToParty 0 1
OrderTypeCode star:OrderTypeCode 0 1
Collapse Derivation Tree:
