Definition Type: ComplexType
Name: PartsShipmentHeaderType
Namespace: http://www.starstandard.org/STAR/5
Type: star:HeaderBaseType
Containing Schema: PartsShipment.xsd
Abstract
Documentation:
.

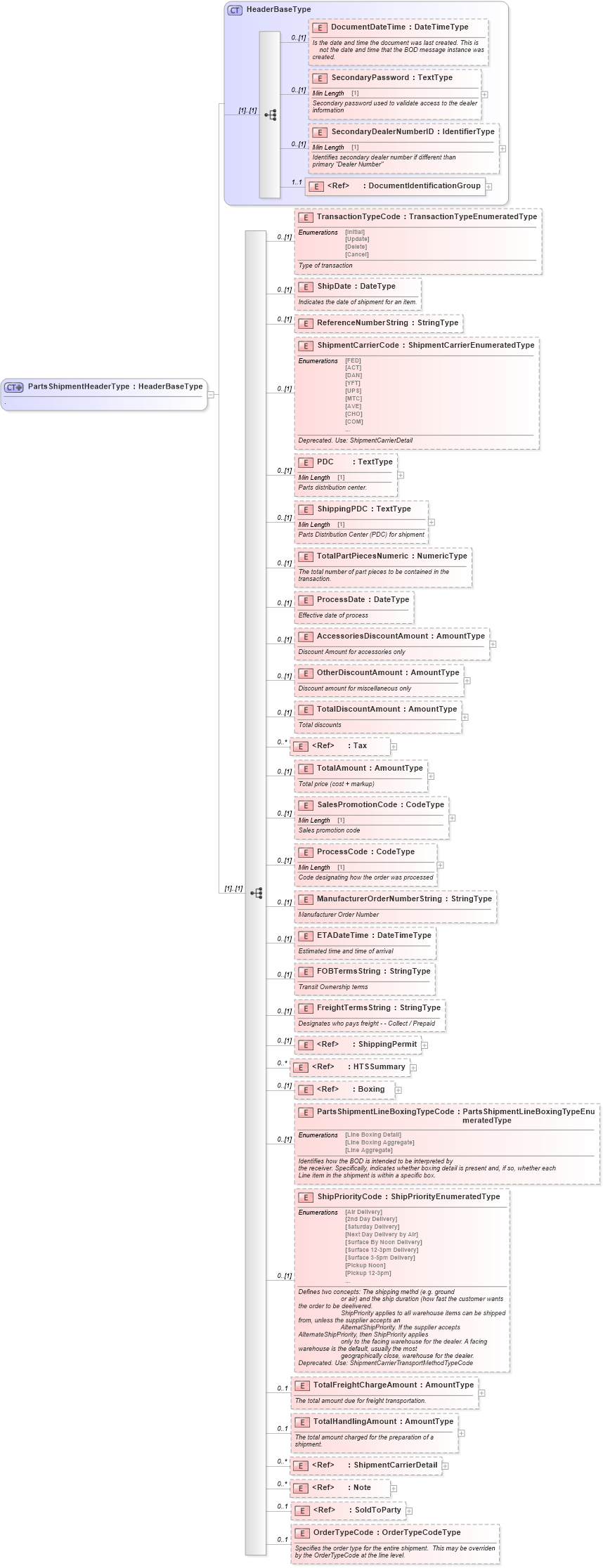

Collapse XSD Schema Diagram:
Drilldown into OrderTypeCode in schema partsshipment_xsd Drilldown into SoldToParty in schema components_xsd Drilldown into Note in schema fields_xsd1 Drilldown into ShipmentCarrierDetail in schema components_xsd Drilldown into TotalHandlingAmount in schema partsshipment_xsd Drilldown into TotalFreightChargeAmount in schema partsshipment_xsd Drilldown into ShipPriorityCode in schema partsshipment_xsd Drilldown into PartsShipmentLineBoxingTypeCode in schema partsshipment_xsd Drilldown into Boxing in schema components_xsd Drilldown into HTSSummary in schema components_xsd Drilldown into ShippingPermit in schema components_xsd Drilldown into FreightTermsString in schema partsshipment_xsd Drilldown into FOBTermsString in schema partsshipment_xsd Drilldown into ETADateTime in schema partsshipment_xsd Drilldown into ManufacturerOrderNumberString in schema partsshipment_xsd Drilldown into ProcessCode in schema partsshipment_xsd Drilldown into SalesPromotionCode in schema partsshipment_xsd Drilldown into TotalAmount in schema partsshipment_xsd Drilldown into Tax in schema components_xsd Drilldown into TotalDiscountAmount in schema partsshipment_xsd Drilldown into OtherDiscountAmount in schema partsshipment_xsd Drilldown into AccessoriesDiscountAmount in schema partsshipment_xsd Drilldown into ProcessDate in schema partsshipment_xsd Drilldown into TotalPartPiecesNumeric in schema partsshipment_xsd Drilldown into ShippingPDC in schema partsshipment_xsd Drilldown into PDC in schema partsshipment_xsd Drilldown into ShipmentCarrierCode in schema partsshipment_xsd Drilldown into ReferenceNumberString in schema partsshipment_xsd Drilldown into ShipDate in schema partsshipment_xsd Drilldown into TransactionTypeCode in schema partsshipment_xsd Drilldown into DocumentIdentificationGroup in schema components_xsd Drilldown into SecondaryDealerNumberID in schema components_xsd Drilldown into SecondaryPassword in schema components_xsd Drilldown into DocumentDateTime in schema components_xsd Drilldown into HeaderBaseType in schema components_xsdXSD Diagram of PartsShipmentHeaderType in schema partsshipment_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="PartsShipmentHeaderType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexContent>
        <xsd:extension base="HeaderBaseType">
            <xsd:sequence>
                <!--                    <xsd:element ref="DocumentID" minOccurs="0" /> -->
                <xsd:element name="TransactionTypeCode" type="scl:TransactionTypeEnumeratedType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Type of transaction</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ShipDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates the date of shipment for an item.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ReferenceNumberString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5" />
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ShipmentCarrierCode" type="scl:ShipmentCarrierEnumeratedType" minOccurs="0">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org">Deprecated. Use: ShipmentCarrierDetail
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="PDC" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Parts distribution center.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ShippingPDC" type="udt:TextType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Parts Distribution Center (PDC) for shipment
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalPartPiecesNumeric" type="udt:NumericType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">The total number of part pieces to be contained in the
                        transaction.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ProcessDate" type="udt:DateType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Effective date of process</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="AccessoriesDiscountAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Discount Amount for accessories only
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="OtherDiscountAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Discount amount for miscellaneous only
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalDiscountAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total discounts</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="Tax" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element name="TotalAmount" type="udt:AmountType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Total price (cost + markup)</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="SalesPromotionCode" type="udt:CodeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Sales promotion code</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ProcessCode" type="udt:CodeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Code designating how the order was processed
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ManufacturerOrderNumberString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Manufacturer Order Number</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ETADateTime" type="udt:DateTimeType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Estimated time and time of arrival</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="FOBTermsString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Transit Ownership terms</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="FreightTermsString" type="qdt:StringType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Designates who pays freight - - Collect / Prepaid
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ShippingPermit" minOccurs="0" />
                <xsd:element ref="HTSSummary" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="Boxing" minOccurs="0" />
                <xsd:element name="PartsShipmentLineBoxingTypeCode" type="scl:PartsShipmentLineBoxingTypeEnumeratedType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Identifies how the BOD is intended to be interpreted by
                        the receiver. Specifically, indicates whether boxing detail is present and, if so, whether each
                        Line item in the shipment is within a specific box.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="ShipPriorityCode" type="scl:ShipPriorityEnumeratedType" minOccurs="0">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Defines two concepts: The shipping methd (e.g. ground
                        or air) and the ship duration (how fast the customer wants the order to be deelivered.
                        ShipPriority applies to all warehouse items can be shipped from, unless the supplier accepts an
                        AlternatShipPriority. If the supplier accepts AlternateShipPriority, then ShipPriority applies
                        only to the facing warehouse for the dealer. A facing warehouse is the default, usually the most
                        geographically close, warehouse for the dealer.</xsd:documentation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5">Deprecated. Use: ShipmentCarrierTransportMethodTypeCode
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalFreightChargeAmount" type="udt:AmountType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5"> The total amount due for freight transportation.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="TotalHandlingAmount" type="udt:AmountType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                        <xsd:documentation source="http://www.starstandard.org/STAR/5"> The total amount charged for the preparation of a
                        shipment.</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="ShipmentCarrierDetail" minOccurs="0" maxOccurs="unbounded" />
                <xsd:element ref="oagis:Note" minOccurs="0" maxOccurs="unbounded">
                    <xsd:annotation>
                        <xsd:documentation source="http://www.starstandard.org/STAR/5"> Free form notes that are entered by the dealer at the
                        time of order entry. These notes are for informational purposes only, no system processing or
                        business logic that would require extraction of data requirements is to appear in this field.
                     </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element ref="SoldToParty" minOccurs="0" maxOccurs="1" />
                <xsd:element name="OrderTypeCode" type="sqdt:OrderTypeCodeType" minOccurs="0" maxOccurs="1">
                    <xsd:annotation>
                        <xsd:documentation>
                            Specifies the order type for the entire shipment.  This may be overriden by the OrderTypeCode at the line level.
                        </xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DocumentDateTime star:DocumentDateTime 0 (1)
SecondaryPassword star:SecondaryPassword 0 (1)
SecondaryDealerNumberID star:SecondaryDealerNumberID 0 (1)
DocumentIdentificationGroup star:DocumentIdentificationGroup 1 1
TransactionTypeCode star:TransactionTypeCode 0 (1)
ShipDate star:ShipDate 0 (1)
ReferenceNumberString star:ReferenceNumberString 0 (1)
ShipmentCarrierCode star:ShipmentCarrierCode 0 (1)
PDC star:PDC 0 (1)
ShippingPDC star:ShippingPDC 0 (1)
TotalPartPiecesNumeric star:TotalPartPiecesNumeric 0 (1)
ProcessDate star:ProcessDate 0 (1)
AccessoriesDiscountAmount star:AccessoriesDiscountAmount 0 (1)
OtherDiscountAmount star:OtherDiscountAmount 0 (1)
TotalDiscountAmount star:TotalDiscountAmount 0 (1)
Tax star:Tax 0 unbounded
TotalAmount star:TotalAmount 0 (1)
SalesPromotionCode star:SalesPromotionCode 0 (1)
ProcessCode star:ProcessCode 0 (1)
ManufacturerOrderNumberString star:ManufacturerOrderNumberString 0 (1)
ETADateTime star:ETADateTime 0 (1)
FOBTermsString star:FOBTermsString 0 (1)
FreightTermsString star:FreightTermsString 0 (1)
ShippingPermit star:ShippingPermit 0 (1)
HTSSummary star:HTSSummary 0 unbounded
Boxing star:Boxing 0 (1)
PartsShipmentLineBoxingTypeCode star:PartsShipmentLineBoxingTypeCode 0 (1)
ShipPriorityCode star:ShipPriorityCode 0 (1)
TotalFreightChargeAmount star:TotalFreightChargeAmount 0 1
TotalHandlingAmount star:TotalHandlingAmount 0 1
ShipmentCarrierDetail star:ShipmentCarrierDetail 0 unbounded
Note oagis:Note 0 unbounded
SoldToParty star:SoldToParty 0 1
OrderTypeCode star:OrderTypeCode 0 1
Collapse Derivation Tree:
Collapse References:
star:PartsShipmentHeader
