Definition Type: ComplexType
Name: RetailDeliveryReportingVehicleLineItemType
Namespace: http://www.starstandard.org/STAR/5
Containing Schema: RetailDeliveryReporting.xsd
Abstract
Documentation:
Detail information regarding a vehicle for a particular retail delivery report.

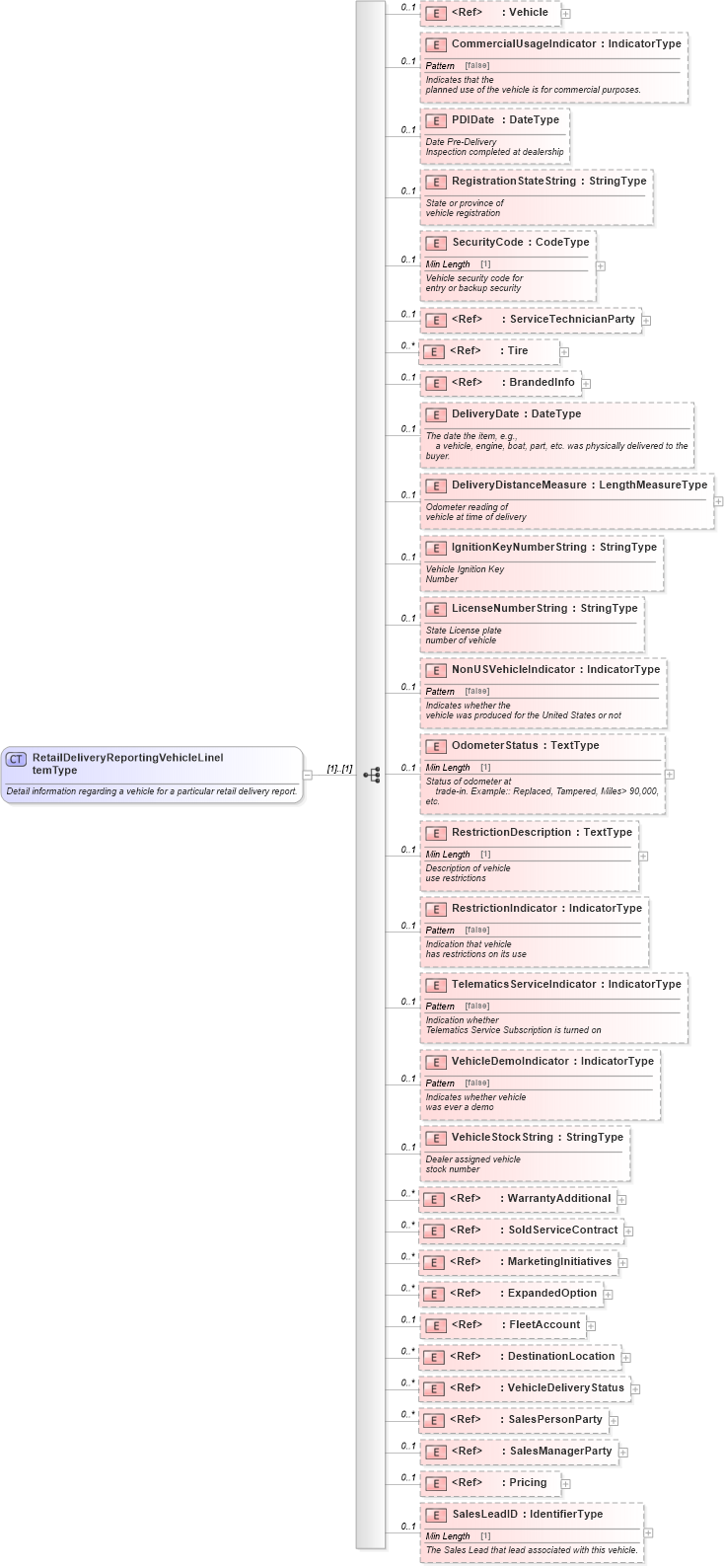

Collapse XSD Schema Diagram:
Drilldown into SalesLeadID in schema retaildeliveryreporting_xsd Drilldown into Pricing in schema components_xsd Drilldown into SalesManagerParty in schema components_xsd Drilldown into SalesPersonParty in schema components_xsd Drilldown into VehicleDeliveryStatus in schema components_xsd Drilldown into DestinationLocation in schema components_xsd Drilldown into FleetAccount in schema components_xsd Drilldown into ExpandedOption in schema components_xsd Drilldown into MarketingInitiatives in schema components_xsd Drilldown into SoldServiceContract in schema components_xsd Drilldown into WarrantyAdditional in schema components_xsd Drilldown into VehicleStockString in schema retaildeliveryreporting_xsd Drilldown into VehicleDemoIndicator in schema retaildeliveryreporting_xsd Drilldown into TelematicsServiceIndicator in schema retaildeliveryreporting_xsd Drilldown into RestrictionIndicator in schema retaildeliveryreporting_xsd Drilldown into RestrictionDescription in schema retaildeliveryreporting_xsd Drilldown into OdometerStatus in schema retaildeliveryreporting_xsd Drilldown into NonUSVehicleIndicator in schema retaildeliveryreporting_xsd Drilldown into LicenseNumberString in schema retaildeliveryreporting_xsd Drilldown into IgnitionKeyNumberString in schema retaildeliveryreporting_xsd Drilldown into DeliveryDistanceMeasure in schema retaildeliveryreporting_xsd Drilldown into DeliveryDate in schema retaildeliveryreporting_xsd Drilldown into BrandedInfo in schema components_xsd Drilldown into Tire in schema components_xsd Drilldown into ServiceTechnicianParty in schema components_xsd Drilldown into SecurityCode in schema retaildeliveryreporting_xsd Drilldown into RegistrationStateString in schema retaildeliveryreporting_xsd Drilldown into PDIDate in schema retaildeliveryreporting_xsd Drilldown into CommercialUsageIndicator in schema retaildeliveryreporting_xsd Drilldown into Vehicle in schema components_xsdXSD Diagram of RetailDeliveryReportingVehicleLineItemType in schema retaildeliveryreporting_xsd (Standards for Technology in Automotive Retail)
Collapse XSD Schema Code:
<xsd:complexType name="RetailDeliveryReportingVehicleLineItemType">
    <xsd:annotation xmlns="http://www.starstandards.org/STAR">
        <xsd:documentation source="http://www.starstandard.org/STAR/5">Detail information regarding a vehicle for a particular retail delivery report.</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element ref="Vehicle" minOccurs="0" maxOccurs="1" />
        <xsd:element name="CommercialUsageIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates that the
                planned use of the vehicle is for commercial purposes.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="PDIDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Date Pre-Delivery
                Inspection completed at dealership</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RegistrationStateString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">State or province of
                vehicle registration</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="SecurityCode" type="udt:CodeType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle security code for
                entry or backup security</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="ServiceTechnicianParty" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="Tire" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BrandedInfo" minOccurs="0" maxOccurs="1" />
        <xsd:element name="DeliveryDate" type="udt:DateType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">The date the item, e.g.,
                a vehicle, engine, boat, part, etc. was physically delivered to the
            buyer.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="DeliveryDistanceMeasure" type="sqdt:LengthMeasureType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Odometer reading of
                vehicle at time of delivery</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="IgnitionKeyNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Vehicle Ignition Key
                Number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="LicenseNumberString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">State License plate
                number of vehicle</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="NonUSVehicleIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether the
                vehicle was produced for the United States or not</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="OdometerStatus" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Status of odometer at
                trade-in. Example:: Replaced, Tampered, Miles&gt; 90,000,
            etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RestrictionDescription" type="udt:TextType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Description of vehicle
                use restrictions</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="RestrictionIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indication that vehicle
                has restrictions on its use</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="TelematicsServiceIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indication whether
                Telematics Service Subscription is turned on</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleDemoIndicator" type="udt:IndicatorType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Indicates whether vehicle
                was ever a demo</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="VehicleStockString" type="qdt:StringType" minOccurs="0" maxOccurs="1">
            <xsd:annotation xmlns:udt="http://www.openapplications.org/oagis/9/unqualifieddatatypes/1.1" xmlns:qdt="http://www.openapplications.org/oagis/9/qualifieddatatypes/1.1">
                <xsd:documentation source="http://www.starstandard.org/STAR/5">Dealer assigned vehicle
                stock number</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="WarrantyAdditional" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SoldServiceContract" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MarketingInitiatives" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ExpandedOption" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FleetAccount" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DestinationLocation" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="VehicleDeliveryStatus" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SalesPersonParty" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Note: if this field is filled in it will override the corresponding field at the
                        header level.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="SalesManagerParty" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        Note: if this field is filled in it will override the corresponding field at the
                        header level.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element ref="Pricing" minOccurs="0" maxOccurs="1" />
        <xsd:element name="SalesLeadID" type="udt:IdentifierType" minOccurs="0" maxOccurs="1">
            <xsd:annotation>
                <xsd:documentation source="http://www.starstandard.org/STAR/5">
                        The Sales Lead that lead associated with this vehicle.
                    </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Vehicle star:Vehicle 0 1
CommercialUsageIndicator star:CommercialUsageIndicator 0 1
PDIDate star:PDIDate 0 1
RegistrationStateString star:RegistrationStateString 0 1
SecurityCode star:SecurityCode 0 1
ServiceTechnicianParty star:ServiceTechnicianParty 0 1
Tire star:Tire 0 unbounded
BrandedInfo star:BrandedInfo 0 1
DeliveryDate star:DeliveryDate 0 1
DeliveryDistanceMeasure star:DeliveryDistanceMeasure 0 1
IgnitionKeyNumberString star:IgnitionKeyNumberString 0 1
LicenseNumberString star:LicenseNumberString 0 1
NonUSVehicleIndicator star:NonUSVehicleIndicator 0 1
OdometerStatus star:OdometerStatus 0 1
RestrictionDescription star:RestrictionDescription 0 1
RestrictionIndicator star:RestrictionIndicator 0 1
TelematicsServiceIndicator star:TelematicsServiceIndicator 0 1
VehicleDemoIndicator star:VehicleDemoIndicator 0 1
VehicleStockString star:VehicleStockString 0 1
WarrantyAdditional star:WarrantyAdditional 0 unbounded
SoldServiceContract star:SoldServiceContract 0 unbounded
MarketingInitiatives star:MarketingInitiatives 0 unbounded
ExpandedOption star:ExpandedOption 0 unbounded
FleetAccount star:FleetAccount 0 1
DestinationLocation star:DestinationLocation 0 unbounded
VehicleDeliveryStatus star:VehicleDeliveryStatus 0 unbounded
SalesPersonParty star:SalesPersonParty 0 unbounded
SalesManagerParty star:SalesManagerParty 0 1
Pricing star:Pricing 0 1
SalesLeadID star:SalesLeadID 0 1
Collapse Derivation Tree:
Collapse References:
star:RetailDeliveryReportingVehicleLineItem
